Virtual Machine In Windows Azure Step by Step - Part One

You can create a virtual machine in Azure using one of the following methods:

  • Use Quick Create when you need only one virtual machine for your solution, or when you need to connect it to a virtual network.

  • Use From Gallery when you need a solution that requires multiple virtual machines or a virtual machine with advanced settings.

  • A virtual machine is a server in the cloud that you can control and manage. After you create a virtual machine in Azure, you can stop and restart it whenever you need to.

  • When you create a virtual machine, it is automatically started for you. You’ll know when a virtual machine is running because its status is Running. You can stop and restart a virtual machine at any time.

  • Before you stop a virtual machine, you should make sure that applications running on the virtual machine are shut down appropriately. The applications that are running on a virtual machine are automatically shut down when the virtual machine is stopped.

  • To stop a virtual machine, click its name, and then click Shutdown. When you stop the virtual machine, it shuts down just as your server in your office shuts down when you stop it. While the virtual machine is shutting down, its status is Stopping. When the virtual machine is stopped, its status is Stopped. If you set up load balancing for your cloud service, you should consider how stopping the virtual machine will affect your application.

  • When a virtual machine is running and you want to restart it, click its name, and then click Restart. While the virtual machine is restarting, its status is Restarting. When the virtual machine is ready for you to use, its status is Running.

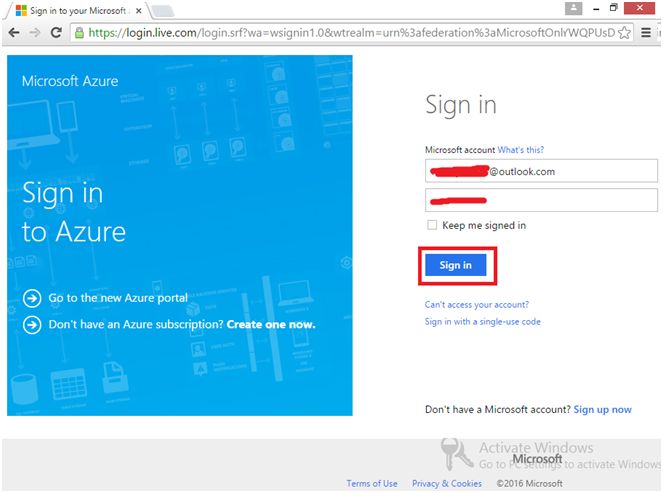

Step 1: Login to Windows Azure.

Sign in

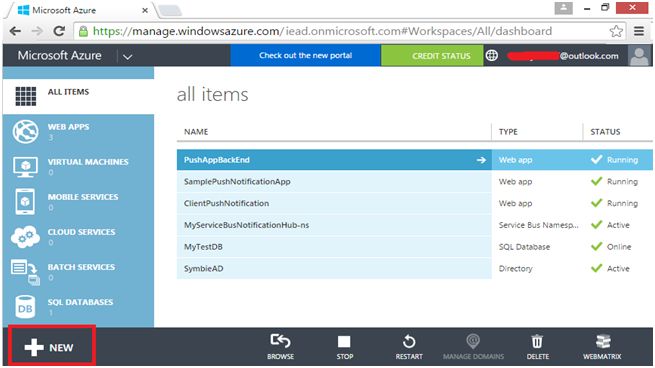

Step 2: By login in to Windows Azure, select "NEW” at the bottom of the window.

select NEW

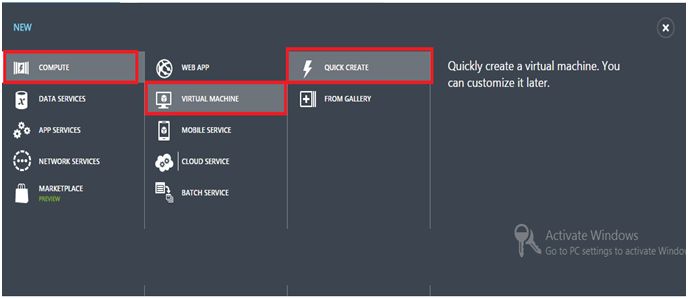

Step 3: Under "COMPUTE”, select "Virtual Machine” and select "Quick Create”.

Here, I am going to create Quick Create when we need only one virtual machine for our solution.

Quick Create

You will see the following figure,

DNS: The DNS name must contain between 3 and 15 characters. The name can contain only letters, numbers, and hyphens. The name must start with a letter and must end with a letter or a number.

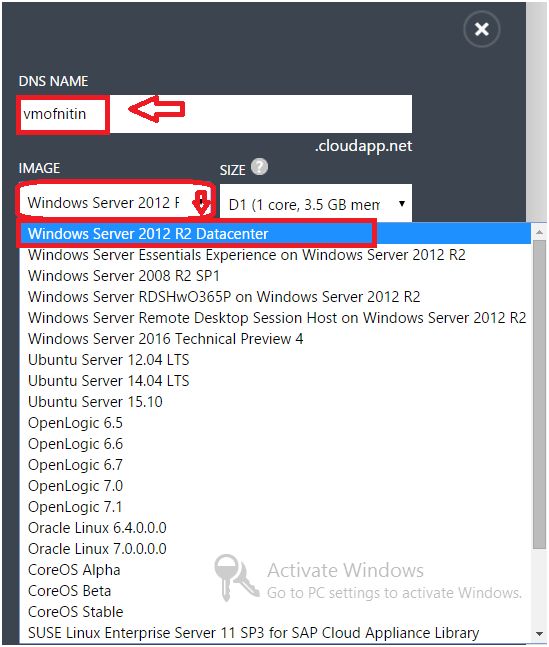

Image: Choose an Operating System image from the drop down menu; here I want to show "Windows Server 2012 R2 Datacenter."

Windows Server

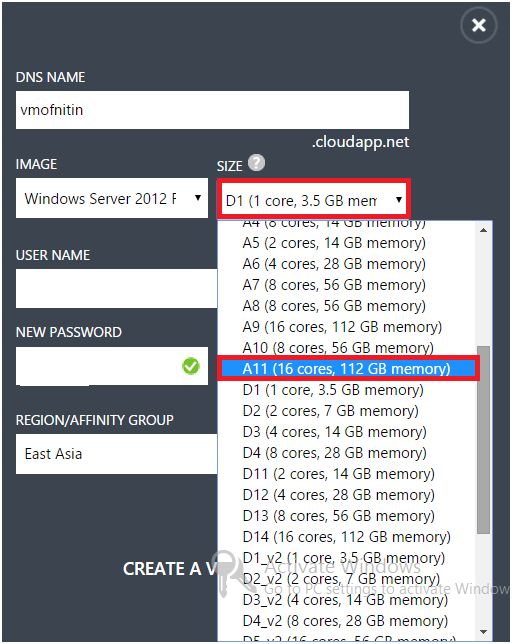

Size: In size, you can give a size to your virtual machine from different sizes in the dropdown menu.

dropdown menu

User Name: User Name is mandatory for the VM, it would be used at the time of credentials. Here I gave "pandit.

Password: Give the password for logging in to the virtual machine.

Region: I’m from India, so I am going to select "East Asia.

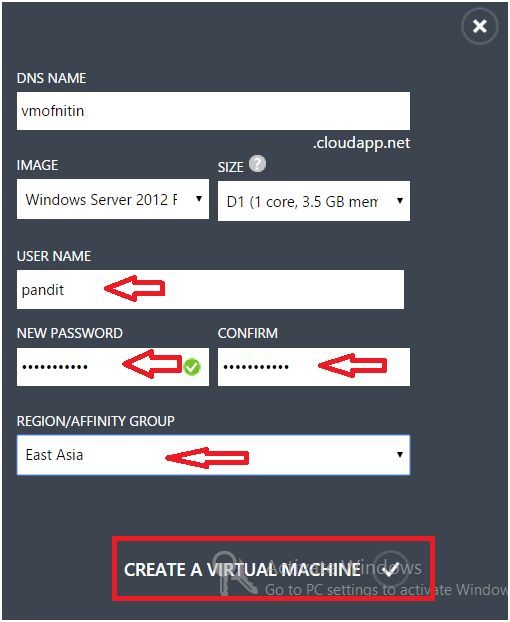

Hit on check mark to create a virtual machine (shown in the rectangle).

Create virtual machine

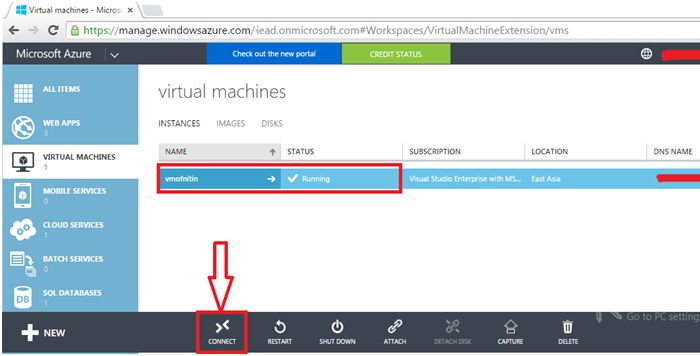

After the creation of the virtual machine, we need to connect it where we can access it remotely. Select your virtual machine and click on "Connect” button.

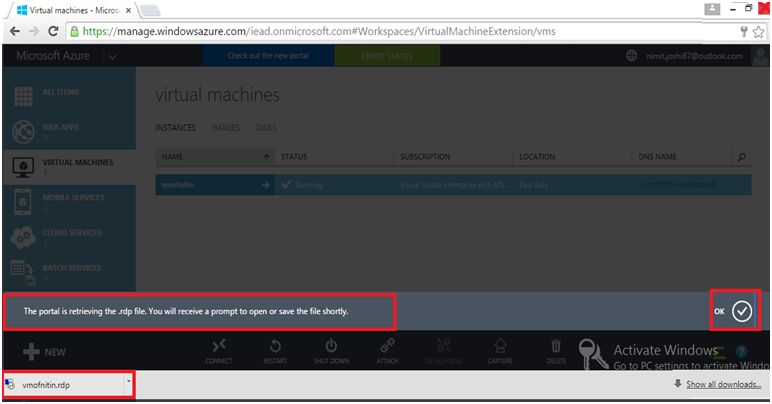

A file with extension ".rdp” will be downloaded.

extension

It will display a message for the file.

Open the downloaded RDP file.

downloaded RDP file

Go to the downloaded RDP file and open it. Remote Desktop is enabled by default.

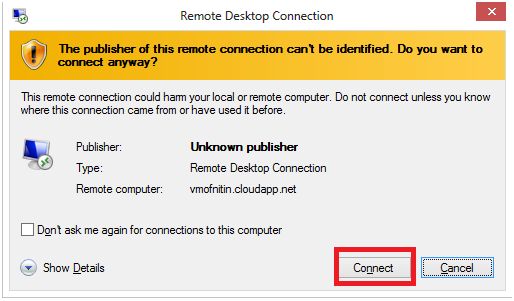

Click on "Connect” button.

Click on Connect

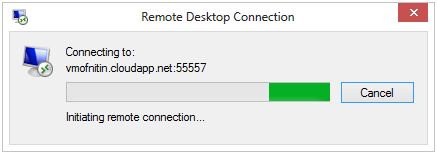

After clicking on connect button it will start the remote connection.

connect

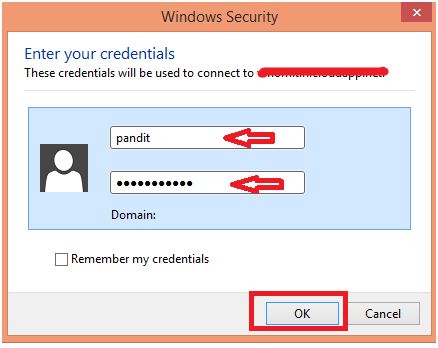

Now, we need to complete security by entering credentials, user name and password which we setup during creation of the virtual machine.

Click on "OK” button.

login

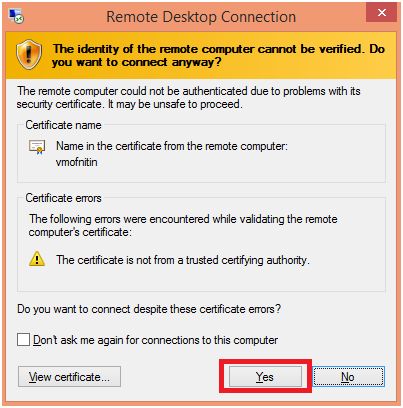

Click on "Yes” button.

Click on Yes

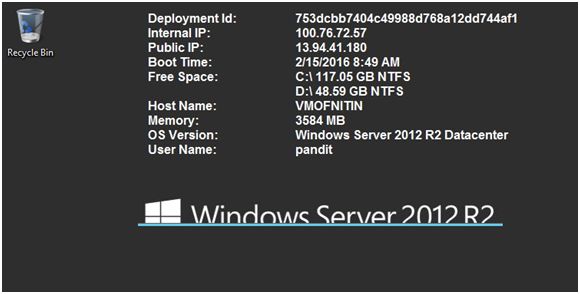

After entering your credentials click on "yes" and you will be connected with your Virtual Machine.

connected with your Virtual Machine

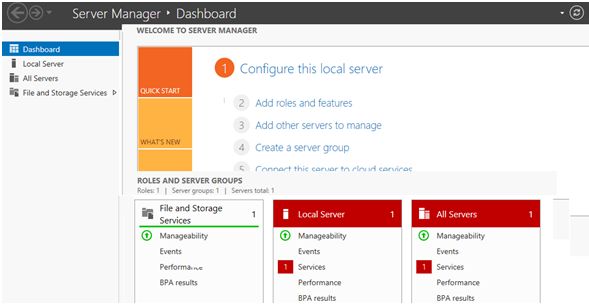

Here is the Dashboard.

Dashboard

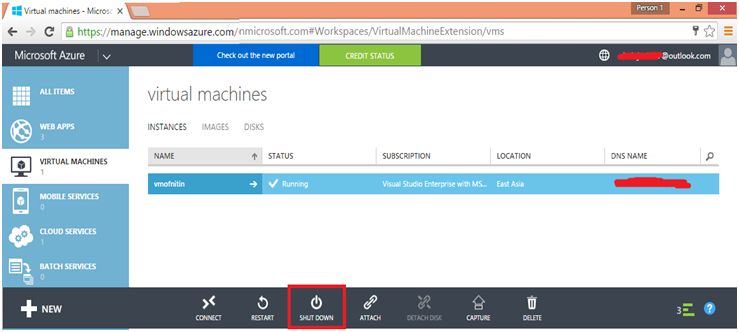

Make sure you don't forget to shut down your VM after completing your work. You can shut down it from shutdown option as in the following:

Virtual Machine

I hope you enjoyed this article. Stay tuned for part two of the article series.

Thanks for reading.
