Welcome To CSS / CSS3 Tutorial Series - Part One

In this series you will learn property-wise. The last stop in the journey of this series is Creating Responsive Site. So please go through with all futures CSS articles. Before starting the series first we will look at the answers to some basic questions.

  • What is CSS?
  • Which IDE(Integrated Development Environment) Required?
  • How to create a CSS file & Types of CSS?
  • How to link External CSS file to HTML?
  • What is Property?
  • Basic Rules of Writing CSS & CSS Selector
  • Online formatter.
  • CSS properties Explanation and Practical

    • Background
    • Border
    • Float

What is CSS?

CSS stand for Cascading Style Sheets. This very simple language is used to decorate and make beautification and make stylish web page. Without CSS web page will not look good.

If a Web Page isa  human body then  HTML  is like a skeleton and CSS is like the actual body.

Simple Web Page            Web Page with CSS

CSS              CSS

CSS makes web pages look  stylish. Mostly visitors look at your website design, way of presentation and colors, dimension of object etc….

This can all be achieved by CSS.

Which IDE(Integrated Development Environment) Is Required?

You can use any normal notepad application to write HTML and CSS. Because CSS is not required to compile, it's just a text file.

To the best of my knowledge you can use the following IDE:

  1. Visual Studio Community Edition
  2. Visual Studio Code
  3. NetBeans
  4. Brackets
  5. SubLimeText

For more detail you can Google the following keywords ”free html css ide”

Or

https://www.google.co.in/search?source=hp&ei=Yq8mWsizLYSSvQSyh5DwCA&q=ree+html+css+ide&oq=ree+html+css+ide&gs_l=psy-ab.3..0i13k1j0i22i30k1l3.7651.7651.0.8026.1.1.0.0.0.0.140.140.0j1.1.0....0...1c.1.64.psy-ab..0.1.139....0.CG91BYfxBgU

How to create a CSS file & Types of CSS?

CSS file is a plain text file you can even create it  in a simple notepad program.

There are three ways to use css in html documents.

  • In Document Style / Internal Style Sheet
  • Inline (With Html Tag)
  • External Style Sheet

These three ways can be used in one document. Its depends upon developer to developer and project / situation.

In Document Style

Under head tag section mostly we write a style tag that is In Document Style.

  1. <head>
  2.     <style>
  3.         IN DOCUMENT STYLE
  4.     </style>
  5. </head>

Example

  1. <head>
  2.     <style>
  3.         p {
  4.             background: green
  5.         }
  6.
  7.         ;
  8.     </style>
  9. </head>

Inline Style

With html tag we write Inline style.

  1. <p style=”Inline Style”>This paragraph tag and text</p>

Example

  1. <p style=”background:red”>This paragraph tag and text</p>

Performance

External CSS file is the best option to use in html documents because it reduces the loading time of the page.

Inline CSS makes it slightly slower to load html documents.

Online Test CSS performance link

https://jsperf.com/inline-style-vs-css-class/2

How to link External CSS file to HTML?

You can bind CSS files in header <head> section of HTML document.

Example

<link href="css/style.css" type="text/css" rel="stylesheet" />

In the above example you can see STYLE.CSS file which located inside CSS folder and linked with html document.

What is Property?

CSS is all about properties. Property is one type of predefined option which can be set by different values.

In the example you can see background color property option which can be set by different colors as per your web page requirement.

Example

background-color: yellow;

Above property will make a yellow background color where its get declared.

Basic Rules of Writing CSS

; : Semicomma is line terminator.

{ } : Inside curly braces we write the css style for In document (Internal) )style and External Style Sheet.

/* */ : Single line and Multiline can be marked as comments.

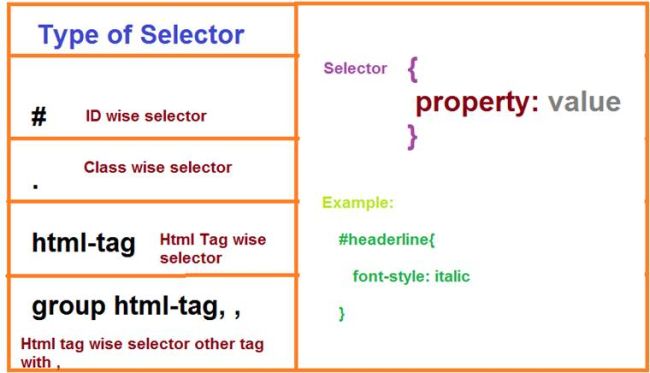

CSS Selector

You can write css on a selector basis. Following is a type of selector,

CSS

  1. ID wise
  2. Tag wise
  3. Class wise
  4. Group Tag wise

ID wise

As you know CSS for HTML and CSS bind to html tag. In html tag you mostly define ID attribute.

In following example you can see P tag defined with id named intropara

Example

<p id=”intropara”>Welcome to learn CSS</p>

We write css for defined ID.

Example

  1. #intropara {
  2.     text - align: justify;
  3. }

Tag wise

We write HTML with the help of Tags like this:

<p> <h1> etc..

  1. p {
  2.     background - color: yellow;
  3. }
  4. h1 {
  5.     font - style: italic;
  6. }

As per above, tag wise style means background color will be yellow to all p tags and all H1 tag will be displayed in italic form.

Class wise

Classwise style sheet are mostly used in HTML and CSS because you can give one class name to multiple tags. Class wise css start with . (dot).

Class HTML example,

  1. <p id=”firstpara” class=”italicletter”>This paragraph number 1</p>
  2. <p id=”secondpara” class=”italicletter”>This paragraph number 2</p>

CSS example,

  1. .italicletter {
  2.     font - style: italic;
  3. }

Group Tag wise

Groupwise tag css style is where we write css rules for multiple html tags.

In the following example you can see style sheet rules written for h1 and p tags.

Example

  1. h1, p {
  2.     font - style: italic;
  3. }

Online CSS Formatter

You can format and align your css code online on the following sites,

  1. https://www.cleancss.com/css-beautify/
  2. https://www.freeformatter.com/css-beautifier.html
  3. http://www.codebeautifier.com

CSS properties Explanation and Practical

  • Background
  • Border
  • Content
  • Float

Background

CSS background property to set the background things of HTML element.

Background has the following types of properties,

  • background-color
  • background-image
  • background-repeat
  • background-attachment
  • background-position
  • background-color:

To set the background color of a html element.

You can specify the color by following ways,

  1. Color Name
  2. Hex Values
  3. RGB numers.

Syntax

background-color: <color name>;

Example

background-color: red;

  • background-image

To set the background image of a html element.

Syntax

background-image: url / path

Example

background-image: “images/pic.jpg”;

  • background-repeat

To set background if image will repeat on page or not.

Syntax

background-repeat: repeat/repeat-x/repeat-y/no-repeat/

Example

background-repeat: repeat-x;

  • background-attachment

This property is to set background image scrollable with image or without image.

Syntax

background-attachment: scroll / fixed / local / initial / inherit

Example

background-attachment: scroll;

  • background-position

To set the position of the image

Syntax

background-position: left / left top / left center / left bottom / right top / right / right center / right bottom /

center / center top / center center / center bottom

Example

background-position: left;

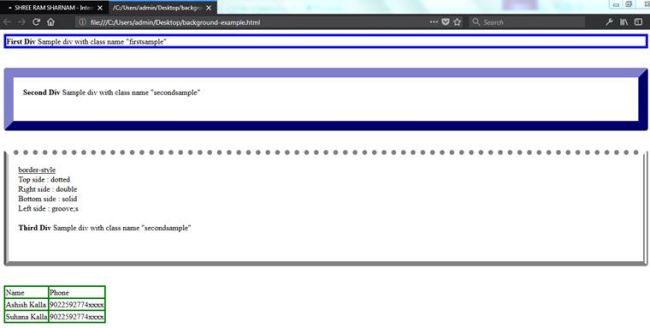

Border

To set the border. Border having following sub categories properties.

  • border: All in one property to set the all types border rules.

Syntax

border: <width> <style> <color>

Example

border: 7px dotted blue;

You will learn more about border-width, border-style and border-color in coming paragraphs.

  • border-bottom : To set bottom side border.

Syntax

border-bottom: <bottom width> <bottom style> <bottom color>

Example

border-bottom: 7px dotted blue;

Border bottom can be further divided or extended into the following properties

  • border-bottom-color
  • border-bottom-style
  • border-bottom-width
  • border-bottom-left-radius
  • border-bottom-right-radius
  • border-bottom-color : To set the bottom border color.

Syntax

border-bottom-color: <color name>

Example

border-bottom-color: red;

  • border-bottom-style : To set the bottom border style.

Syntax

border-bottom-style: <none/dotted/solid/double/groove/ridge/inset/outset>

Example

border-bottom-style: dotted;

  • border-bottom-width: To set the bottom border width

Syntax

border-bottom-style: <thin/thick/??px>

Example

border-bottom-style: 10px;

  • border-bottom-left-radius: To make left bottom in round corner shape.

Syntax

border-bottom-left-radius: <length/%>

Example

border-bottom-left-radius: 10px;

border-bottom-left-radius: 10%;

  • border-bottom-right-radius:To make right bottom in round corner shape.

Syntax

border-bottom-right-radius: <length/%>

Example

border-bottom-right-radius: 10px;;

border-bottom-right-radius: 10%;

  • border-top: To set top side border.

Syntax

border-top: <width> <style> <color>

Example

border-top: 7px dotted blue;

Border top can be  further divided or extended into the following properties:

  • border-top-color
  • border-top-style
  • border-top-width
  • border-top-left-radius
  • border-top-right-radius

    NOTE
    You can set border-top-<properties> in a similar way as border-bottom-<properties>

  • border-left: To set left side border.

Syntax

border-left: <width> <style> <color>

Example

border-left: 7px dotted blue;

Border left can be further divided or extended into the following properties:

  • border-left-color
  • border-left-style
  • border-left-width

    NOTE
    You can set border-left-<properties> as similar way as border-bottom-<properties>

  • border-right: To set right side border.

Syntax

border-right: <width> <style> <color>

Example

border-right: 7px dotted blue;

Border right can be further divided or extended into the following properties:

  • border-right-color
  • border-right-style
  • border-right-width

    NOTE
    You can set border-right-<properties> as similar way as border-bottom-<properties>

  • border-color: To set the border color

Syntax

border-color: <color name / hex code / rgb code>

You can give color definition by color name, hex code and rgb code.

Example

border-color: red;

(all four side will be red color)

border-color:red blue green yellow;

(Top border in red, Right border in blue , Bottom border in green , Left border in yellow)

border-color: #F00;

border-color: #ff0000;

  • border-collapse: To display cells or contents in collapse separately.

Collapse will reduce space and make it into single border.

Separate will give space and make an individual border to cell or content.

Syntax

border-collapse: <collapse/separate>

Example

border-collapse: red;

  • border-image: To set image as a border to an element.

You can give the path or url of the image.

Syntax

border-image: <collapse/separate>

Example

border-image: collapse;

  • border-radius: To add rounded corner.

Syntax

border-radius: <width px/width px>

Example

border-radius: 25px;

border-radius: 50px 25px;

  • border-width: To specify the border type.

Syntax

border-width: <medium/thin/thick/??px>

Example

border-width: 10px;

border-width: medium thick 20px 30px

(above property value will build top border medium, right border thick and bottom border 20px, Left border 30px)

  • border-style: To set the pattern of border.

Syntax

border-style: <none/dotted/solid/double/groove/ridge/inset/outset>

Example

border-style: dotted;

border-style: dotted double groove solid

(above property value will build border style top border dotted, right border double and bottom border groove, left border solid.)

  • border-spacing: To set the spacing.

Syntax

border-spacing: <??px> (To set the spacing Top,Right,Bottom,Left side equally.)

border-spacing: <LRpx TBpx >

(LRpx : Left side and Right side spacing // TBpx: Top side and Bottom side spacing)

Example

border-spacing: 10px;

border-spacing: 10px 30px;

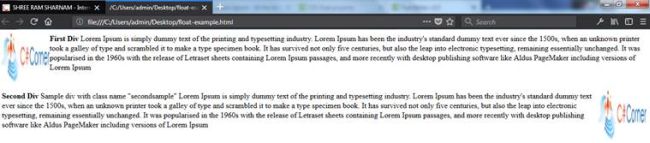

Float

To set alignment of element inside container. There are two basic values; left , right.

Syntax

float: <none/left/right/initial/inherit>

Example

float: left; (To move element left side in container.)

float: right; (To move element right side in container.)

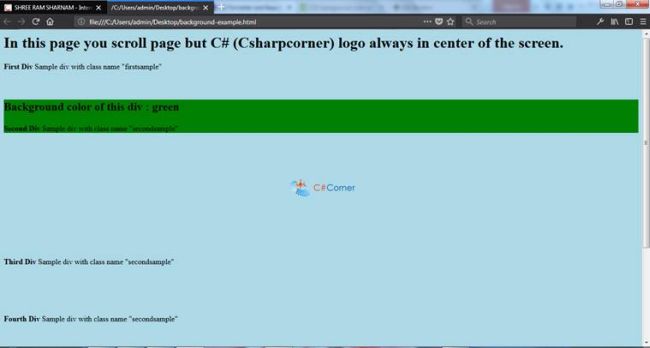

Background HTML and CSS Sample Code

  1. <html>
  2.
  3. <head>
  4.     <style>
  5.         .firstsample {
  6.             background: lightblue url("http://csharpcorner.mindcrackerinc.netdna-cdn.com/App_Themes/CSharp/Images/SiteLogo.png") no-repeat fixed center;
  7.         }
  8.
  9.         .secondsample {
  10.             background-color: green;
  11.         }
  12.     </style>
  13. </head>
  14.
  15. <body class="firstsample">
  16.     <h1>In this page you scroll page but C# (Csharpcorner) logo always in center of the screen.</h1>
  17.     <div> <b>First Div</b> Sample div with class name "firstsample" </div> <br> <br>
  18.     <div class="secondsample">
  19.         <h2>Background color of this div : green</h2> <b>Second Div</b> Sample div with class name "secondsample" </div> <br> <br> <br> <br> <br> <br> <br>
  20.     <div> <br> <br> <br> <br> <br> <br> <b>Third Div</b> Sample div with class name "secondsample" </div> <br> <br>
  21.     <div> <br> <br> <br> <b>Fourth Div</b> Sample div with class name "secondsample" </div> <br> <br>
  22.     <div> <br> <br> <br> <br> <br> <br> <br> <br> <br> <br> <b>Fifth Div</b> Sample div with class name "secondsample" </div> <br> <br> </body>
  23.
  24. </html>

OUTPUT

CSS

Border HTML and CSS Sample Code

  1. <html>
  2.
  3. <head>
  4.     <style>
  5.         .firstsample {
  6.             border: 5px solid blue;
  7.         }
  8.
  9.         .secondsample {
  10.             padding-top: 20px;
  11.             padding-left: 20px;
  12.             height: 70px;
  13.             border-width: 20px;
  14.             border-color: #009;
  15.             border-style: outset;
  16.             border-radius: 5px;
  17.         }
  18.
  19.         .thirdsample {
  20.             padding-top: 20px;
  21.             padding-left: 20px;
  22.             height: 200px;
  23.             border-width: 10px;
  24.             border-color: grey;
  25.             border-style: dotted double solid groove;
  26.             border-radius: 5px;
  27.         }
  28.
  29.         table,
  30.         td,
  31.         th {
  32.             border: 3px solid green;
  33.         }
  34.
  35.         .firsttable {
  36.             border-collapse: collapse;
  37.         }
  38.
  39.         .secondtable {
  40.             border-collapse: separate;
  41.             border-color: blue;
  42.         }
  43.     </style>
  44. </head>
  45.
  46. <body>
  47.     <div class="firstsample"> <b>First Div</b> Sample div with class name "firstsample" </div> <br> <br>
  48.     <div class="secondsample"> <b>Second Div</b> Sample div with class name "secondsample" </div> <br> <br>
  49.     <div class="thirdsample"> <u>border-style </u> <br> Top side : dotted <br> Right side : double <br> Bottom side : solid <br> Left side : groove;s <br> <br> <b>Third Div</b> Sample div with class name "secondsample" </div> <br> <br>
  50.     <div>
  51.         <table class="firsttable">
  52.             <tr>
  53.                 <td> Name </td>
  54.                 <td> Phone </td>
  55.             </tr>
  56.             <tr>
  57.                 <td> Ashish Kalla </td>
  58.                 <td> 9022592774xxxx </td>
  59.             </tr>
  60.             <tr>
  61.                 <td> Suhana Kalla </td>
  62.                 <td> 9022592774xxxx </td>
  63.             </tr>
  64.         </table>
  65.     </div>
  66. </body> <br> <br>
  67. <div>
  68.     <table class="secondtable">
  69.         <tr>
  70.             <td> Name </td>
  71.             <td> Phone </td>
  72.         </tr>
  73.         <tr>
  74.             <td> Ashish Kalla </td>
  75.             <td> 9022592774xxxx </td>
  76.         </tr>
  77.         <tr>
  78.             <td> Suhana Kalla </td>
  79.             <td> 9022592774xxxx </td>
  80.         </tr>
  81.     </table>
  82. </div>
  83. </body>
  84.
  85. </html>

OUTPUT

CSS

Float HTML and CSS Sample Code

  1. <html>
  2.
  3. <head>
  4.     <style>
  5.         .firstsample {
  6.             float: left
  7.         }
  8.
  9.         .secondsample {
  10.             float: right
  11.         }
  12.     </style>
  13. </head>
  14.
  15. <body>
  16.     <div> <b>First Div</b> <img src="http://csharpcorner.mindcrackerinc.netdna-cdn.com/App_Themes/CSharp/Images/SiteLogo.png" class="firstsample" width="100px" height="100px" /> Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum </div> <br> <br>
  17.     <div class="secondsample"> <b>Second Div</b> Sample div with class name "secondsample" <img src="http://csharpcorner.mindcrackerinc.netdna-cdn.com/App_Themes/CSharp/Images/SiteLogo.png" class="secondsample" width="100px" height="100px" /> Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum </div>
  18. </body>
  19.
  20. </html>

OUTPUT

CSS

Happy Coding…

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
