Workflow Initiation Form And Association Forms

In SharePoint Workflows, Initiation Forms are used to provide some additional information into the workflow for whom it is triggered or who starts it. Basically, the initiation forms are used to interact with the user, for example - if we want to take some data from the user before the workflow is triggered, this will be done by Initiation Forms. At first, the input will be taken and then the workflow will be triggered. This is the scenario of initiation form.

On the other hand, Association Forms are also workflow forms which are used to take the information before associating with the list and they are usually used for reusable workflows.

Let’s take an example of initiation form workflow.

Scenario

We are making a workflow named “Reimbursement” in which a user applies for a reimbursement of some amount against his/her expenditure but if the manager wants to allow it only up to certain amount, then we can use initiation parameter. Let’s say the Max Limit for reimbursement amount will be up to 5000. So, we will set this parameter and make workflow to provide a solution.

Step 1st

Make a “Custom List”, let’s say “Reimburse”, which contains the following columns - Title, Description, & Amount.

SharePoint

Go to SharePoint Designer and select the List Workflow; and after that, select your List “Reimburse”.

SharePoint

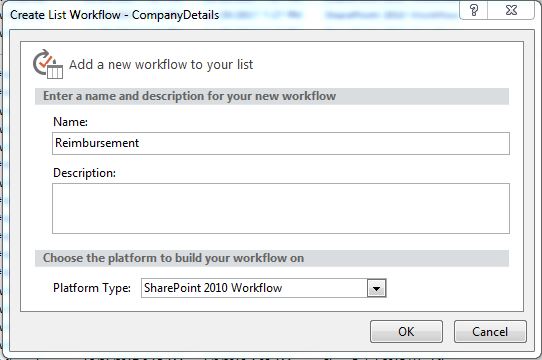

Once you select your list, a workflow window appears named as “Reimbursement”. Select SharePoint 2010 Workflows.

SharePoint

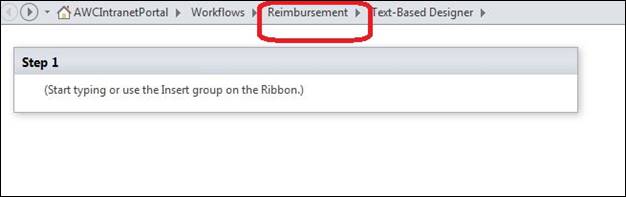

Now, click on Reimbursement that expands some options on the top of the page.

SharePoint

Now, select Initiation Form parameters in which you can set parameters or you can say amount limit.

SharePoint

SharePoint

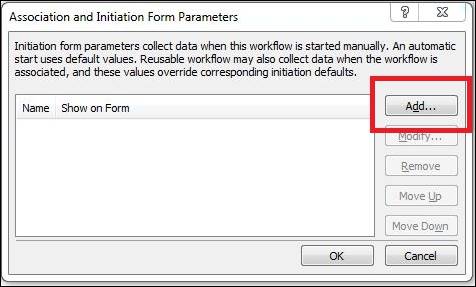

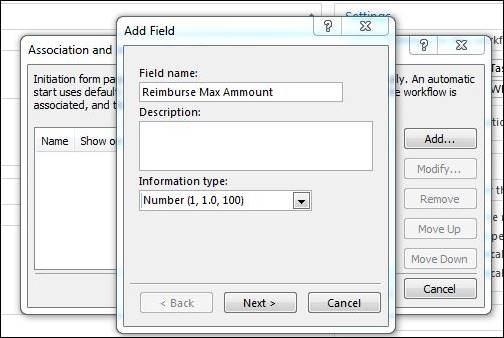

For setting the Parameters, click on "Add" button and after that, name it as Reimburse Max Amount and make information type a number.

SharePoint

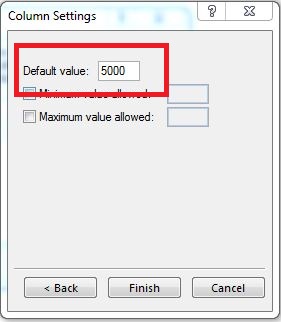

Set the default value, as I set the Reimbursement amount max limit is 5000. Your parameters are done. Now, go to your Workflow.

SharePoint

SharePoint

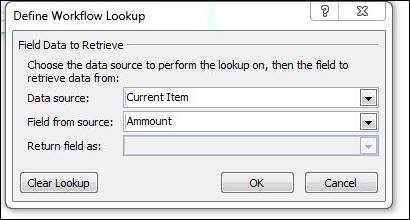

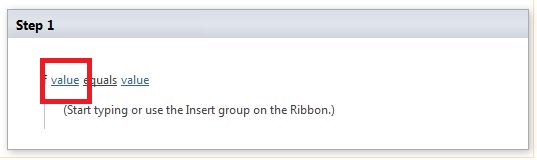

Choose the condition “If any Value equals value “ click on value. & set ‘Data source’ to Current Item and ‘field from source’ to Amount and select.

SharePoint

SharePoint

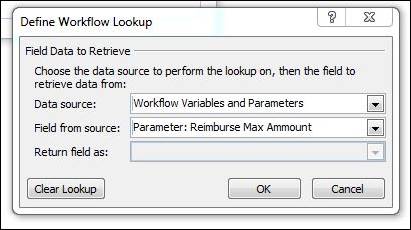

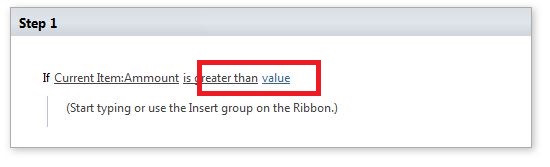

Select “is greater than “instead of equal & select another value option." Then choose Workflow Variable and parameters and Parameter : Reimburse Max Amount  under Field from source.

SharePoint
SharePoint

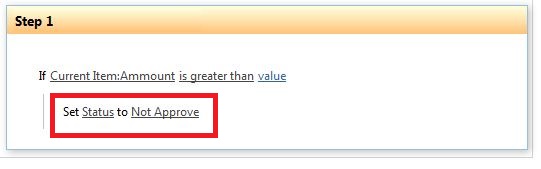

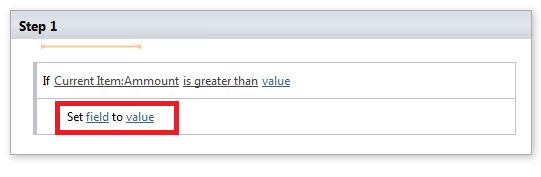

“Set Field to value” Action, in which select Status is in fields & type “Not Approve” in Value.

SharePoint

SharePoint

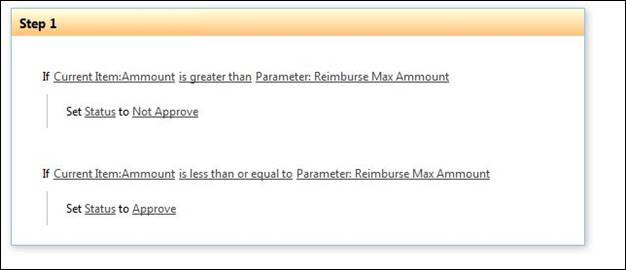

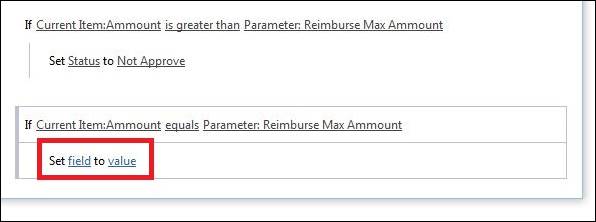

Same as above condition, the below will be the same but use “less than or equal to” instead of previous and  set status to Approve which is shown in fig above

SharePoint

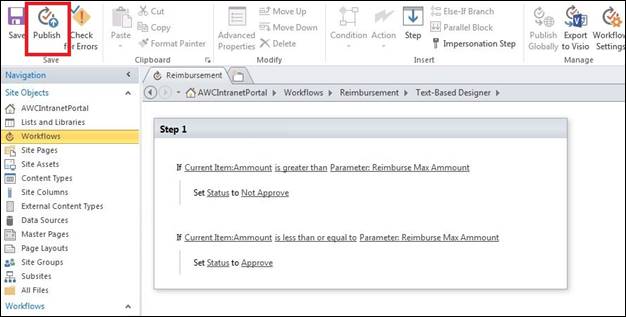

Now Publish the workflow. It will take a couple of minutes to publish.

SharePoint

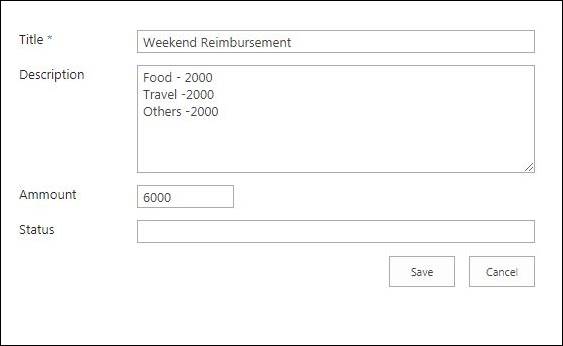

Now, check your workflow add a new Item in the list , if it is more than Reimbursement max amount then the request has been Rejected.

SharePoint

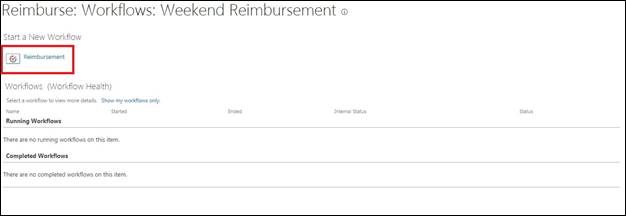

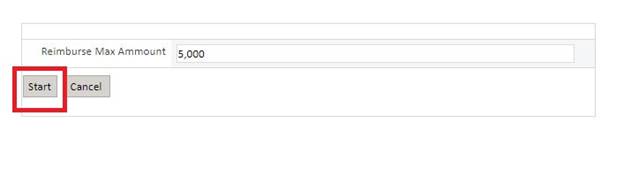

Now, view the list item and go in workflow to start the workflow
SharePoint
Now, check if your request is Rejected or Approved.
