Xamarin Android: Create Android Card Flip Animation Using Gesture Event - Part Two

Let’s start,

First, we create a gesture event. Refer to part one,

• Xamarin Android: Create Android Card Flip Animation Using Gesture Event-Part One

Step 1: We already created the project and did some pages. Here, we create a card backend page and animation XML file.

Step 2: Create Card_Back.axml page. Go to Solution Explorer-> Project Name-> Resources-> Layout. Right click to Add-> New Item and open the new dialog box.

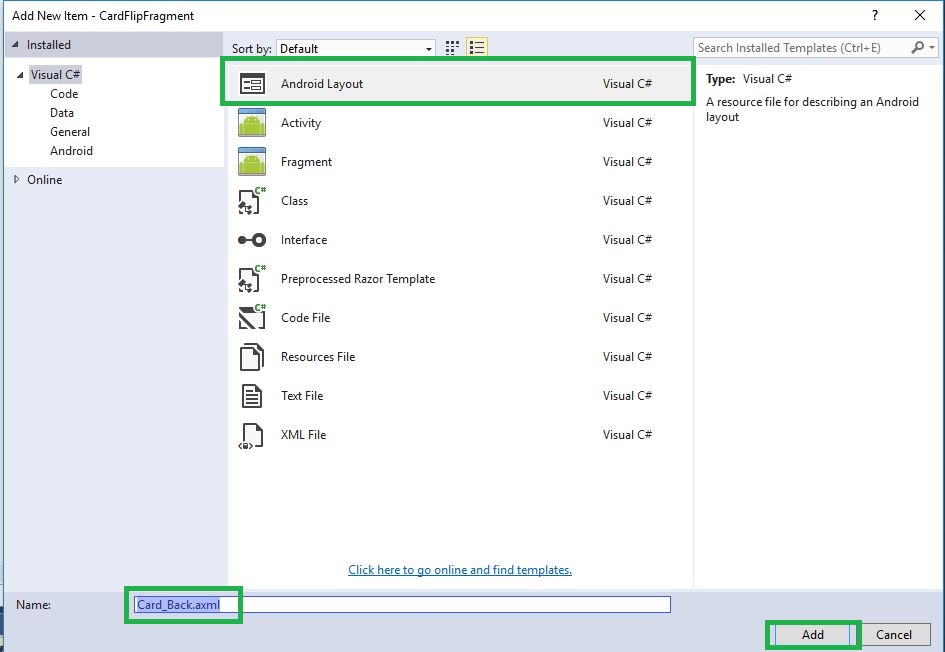

Step 3: This dialog box is required to select Android Layout and give the  name for Card_back. axml.



Step 4: Go to Solution Explorer-> Project Name-> Resources. Right click to Add->New Folder and give the name for Anim.

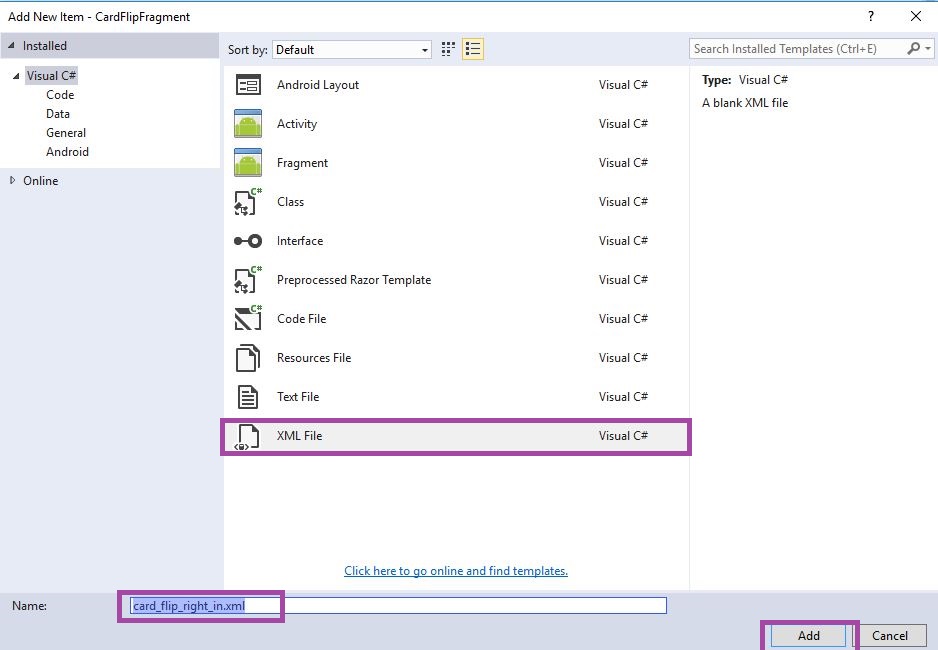

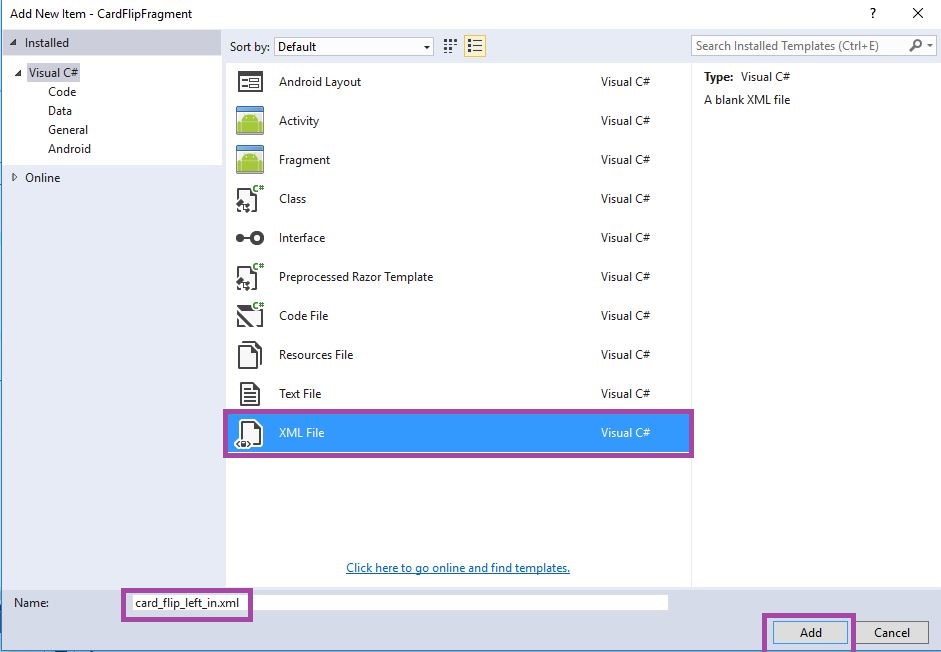

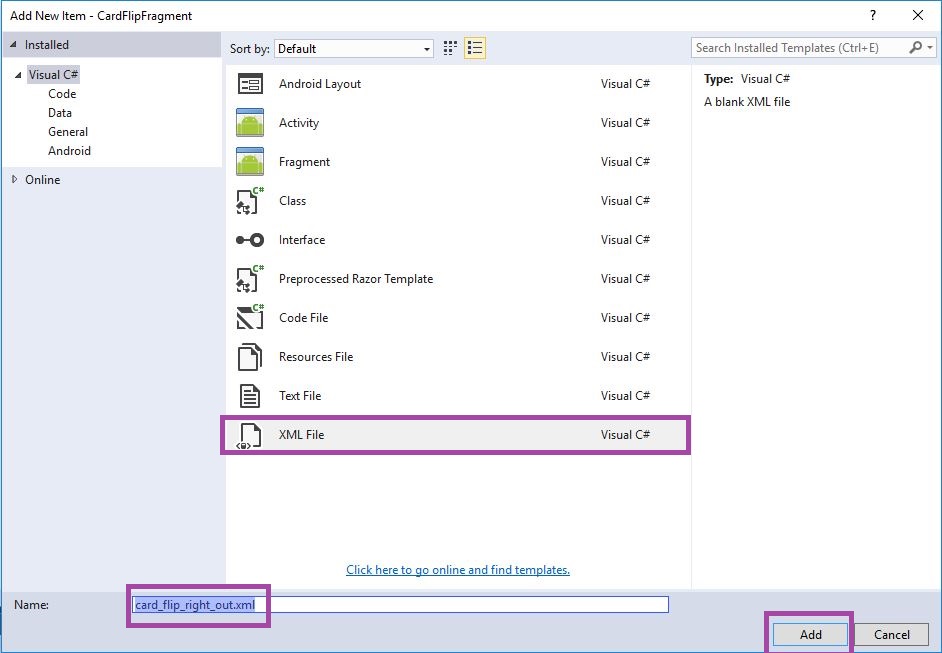

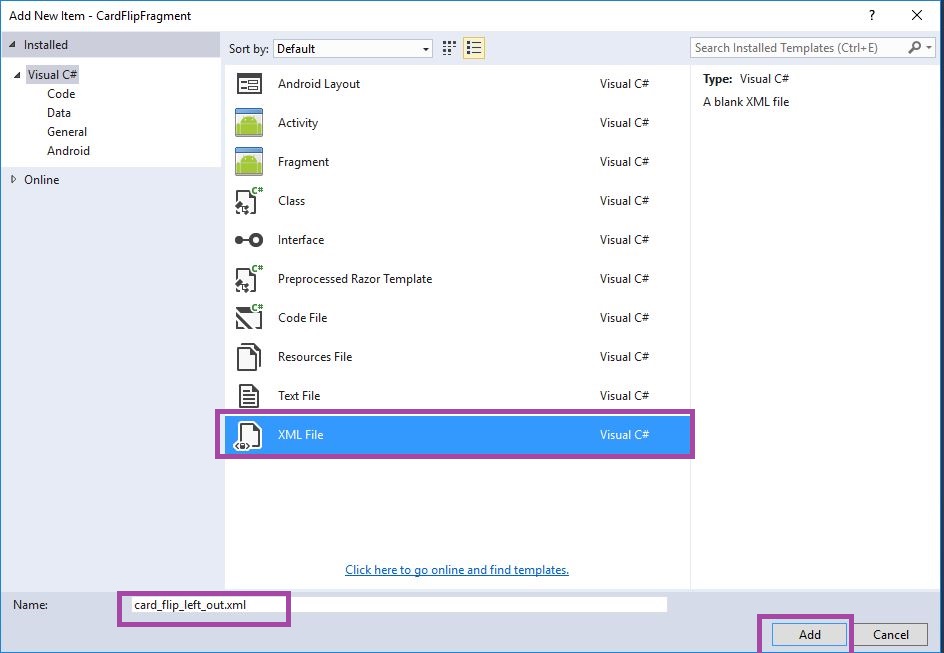

Step 5: Here, we will create four animations. Thus, we create XML resource. Go to Solution Explorer-> Project Name-> Resources-> Anim. Right click to Add-> New Item and open a new dialog box. This dialog box is required to select XML and give the name for Card_flip_left_in.xml, Card_flip_left_out.xml, Card_flip_right_in.xml and Card_flip_right_out.xml.

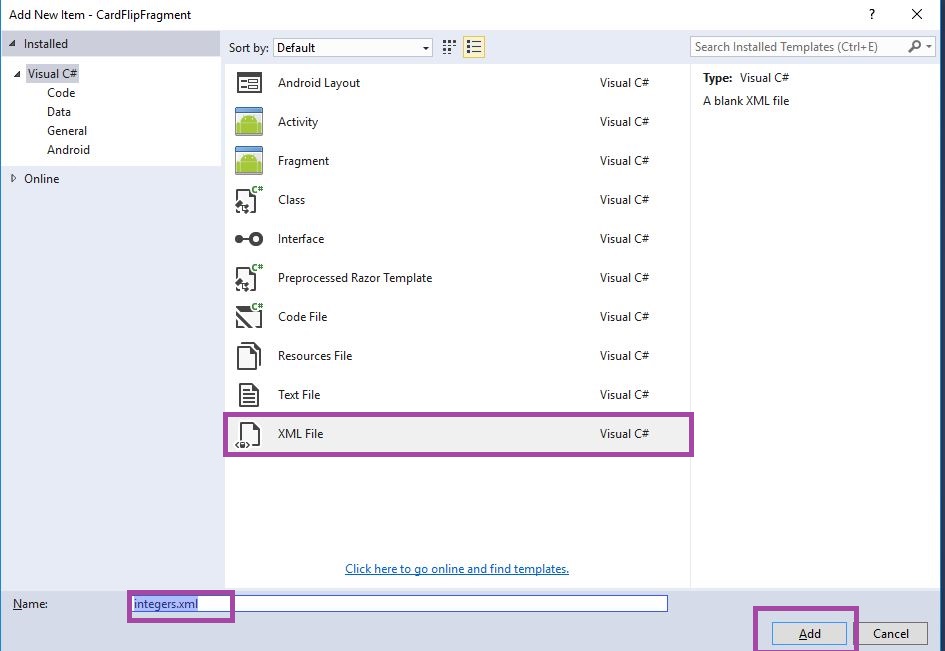

Step 6: Go to Solution Explorer-> Project Name-> Resources-> values. Right click to Add->New Item and select XML. Give the name for Integers.xml.



Step 7: Open Solution Explorer-> Project Name-> Resources-> Anim -> card_flip_left_in.xml. Click to open and add the code, given below:

<set xmlns:android="http://schemas.android.com/apk/res/android">

<!-- Before rotating, immediately set the alpha to 0. -->
   <objectAnimator
      android:valueFrom="1.0"
      android:valueTo="0.0"
      android:propertyName="alpha"
      android:duration="0" />
   <!-- Rotate. -->
   <objectAnimator
      android:valueFrom="-180"
      android:valueTo="0"
      android:propertyName="rotationY"
      android:interpolator="@android:interpolator/accelerate_decelerate"
      android:duration="@integer/card_flip_time_full" />
   <!-- Half-way through the rotation (see startOffset), set the alpha to 1. -->
   <objectAnimator
      android:valueFrom="0.0"
      android:valueTo="1.0"
      android:propertyName="alpha"
      android:startOffset="@integer/card_flip_time_half"
      android:duration="1" />
</set>

Step 8: Open Solution Explorer-> Project Name-> Resources-> Anim -> card_flip_left_out.xml. Click to open and add the code, given below:

<set xmlns:android="http://schemas.android.com/apk/res/android">
<!-- Rotate. -->
   <objectAnimator
      android:valueFrom="0"
      android:valueTo="180"
      android:propertyName="rotationY"
      android:interpolator="@android:interpolator/accelerate_decelerate"
      android:duration="@integer/card_flip_time_full" />
   <!-- Half-way through the rotation (see startOffset), set the alpha to 0. -->
   <objectAnimator
      android:valueFrom="1.0"
      android:valueTo="0.0"
      android:propertyName="alpha"
      android:startOffset="@integer/card_flip_time_half"
      android:duration="1" />
</set>

Step 9: Open Solution Explorer-> Project Name->Resources->Anim -> card_flip_right_in.xml. Click to open add the code, given below:

<set xmlns:android="http://schemas.android.com/apk/res/android">
   <!-- Before rotating, immediately set the alpha to 0. -->
   <objectAnimator
      android:valueFrom="1.0"
      android:valueTo="0.0"
      android:propertyName="alpha"
      android:duration="0" />
   <!-- Rotate. -->
   <objectAnimator
      android:valueFrom="180"
      android:valueTo="0"
      android:propertyName="rotationY"
      android:interpolator="@android:interpolator/accelerate_decelerate"
      android:duration="@integer/card_flip_time_full" />
   <!-- Half-way through the rotation (see startOffset), set the alpha to 1. -->
   <objectAnimator
      android:valueFrom="0.0"
      android:valueTo="1.0"
      android:propertyName="alpha"
      android:startOffset="@integer/card_flip_time_half"
      android:duration="1" />
</set>

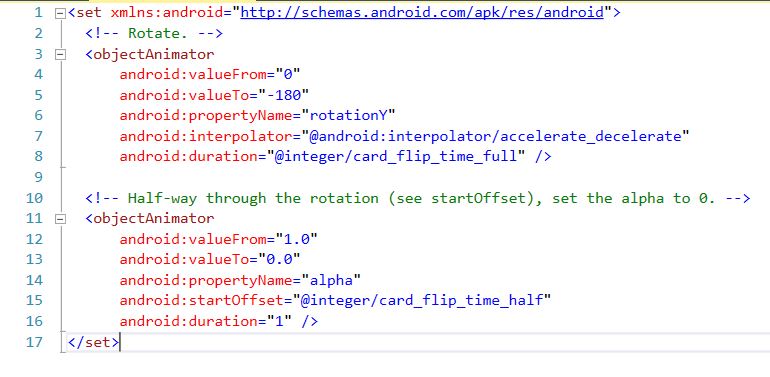

Step 10: Open Solution Explorer-> Project Name->Resources->Anim -> card_flip_right_out.xml. Click to open and add the code, given below:

<set xmlns:android="http://schemas.android.com/apk/res/android">
   <!-- Rotate. -->
   <objectAnimator
      android:valueFrom="0"
      android:valueTo="-180"
      android:propertyName="rotationY"
      android:interpolator="@android:interpolator/accelerate_decelerate"
      android:duration="@integer/card_flip_time_full" />
   <!-- Half-way through the rotation (see startOffset), set the alpha to 0. -->
   <objectAnimator
      android:valueFrom="1.0"
      android:valueTo="0.0"
      android:propertyName="alpha"
      android:startOffset="@integer/card_flip_time_half"
      android:duration="1" />
</set>

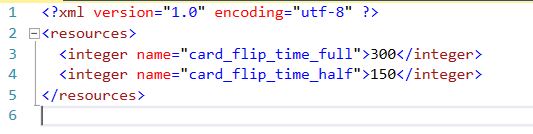

Step 11: Open Solution Explorer-> Project Name->Resources->values -> Integers.xml. Click to open and add the code, given below:

<?xml version="1.0" encoding="utf-8" ?>
<resources>
    <integer name="card_flip_time_full">300</integer>
    <integer name="card_flip_time_half">150</integer>
</resources>

Step 12: Open Solution Explorer-> Project Name->Resources->drawable->Card_Back.axml. Click to open Design View. Give the following code:

<?xml version="1.0" encoding="utf-8"?>
   <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
      android:orientation="vertical"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:background="@android:color/holo_blue_dark">
   <TextView
      android:text="Card Back"
      android:textAppearance="?android:attr/textAppearanceLarge"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:id="@+id/textView2"
      android:gravity="center_horizontal" />
   <TextView
      android:text="Card Back Side"
      android:textAppearance="?android:attr/textAppearanceLarge"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:id="@+id/textView2"
      android:gravity="center_horizontal|center_vertical" />
</LinearLayout>

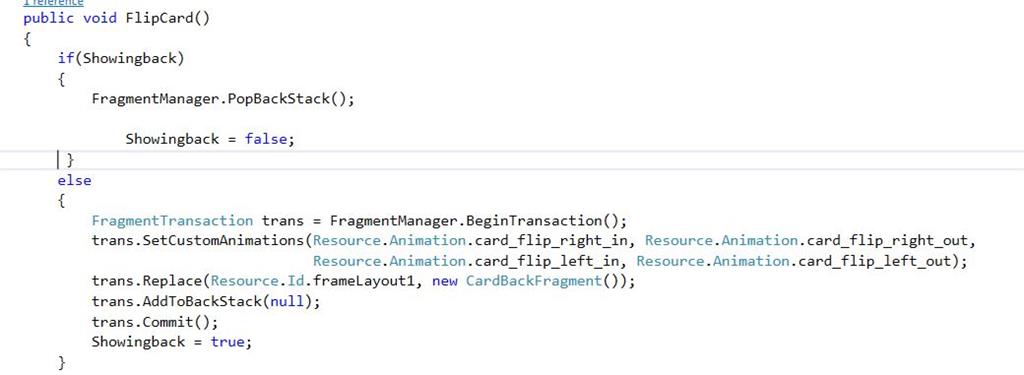

Step 13: Open MainActivity.cs page, below OnCreate(), create a new class for FlipCard.

public void FlipCard()
{
    if (Showingback) {
        FragmentManager.PopBackStack();
        Showingback = false;
    } else {
        FragmentTransaction trans = FragmentManager.BeginTransaction();
        trans.SetCustomAnimations(Resource.Animation.card_flip_right_in, Resource.Animation.card_flip_right_out, Resource.Animation.card_flip_left_in, Resource.Animation.card_flip_left_out);
        trans.Replace(Resource.Id.frameLayout1, new CardBackFragment());
        trans.AddToBackStack(null);
        trans.Commit();
        Showingback = true;
    }
}

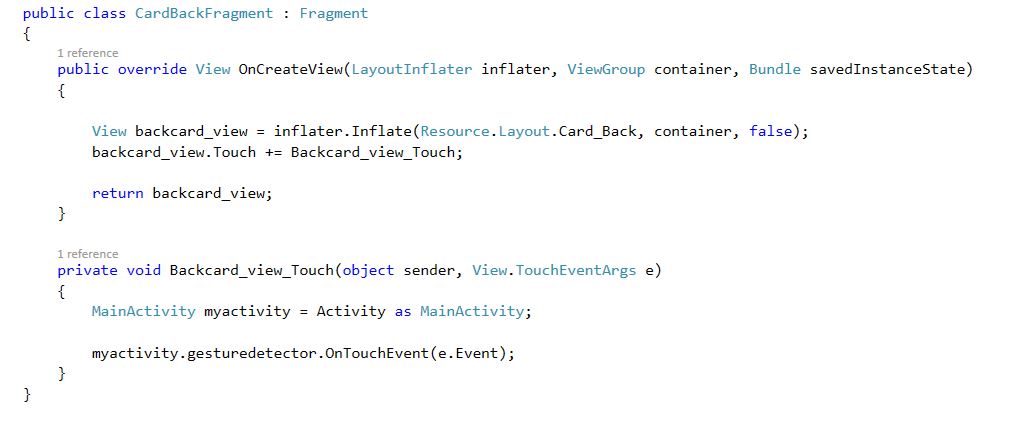

Step 14: Define Back_card function to create new class fragment.


C# Code

public class CardBackFragment: Fragment
{
    public override View OnCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View backcard_view = inflater.Inflate(Resource.Layout.Card_Back, container, false);
        backcard_view.Touch += Backcard_view_Touch;
        return backcard_view;
    }
    private void Backcard_view_Touch(object sender, View.TouchEventArgs e) {
        MainActivity myactivity = Activity as MainActivity;
        myactivity.gesturedetector.OnTouchEvent(e.Event);
    }
}

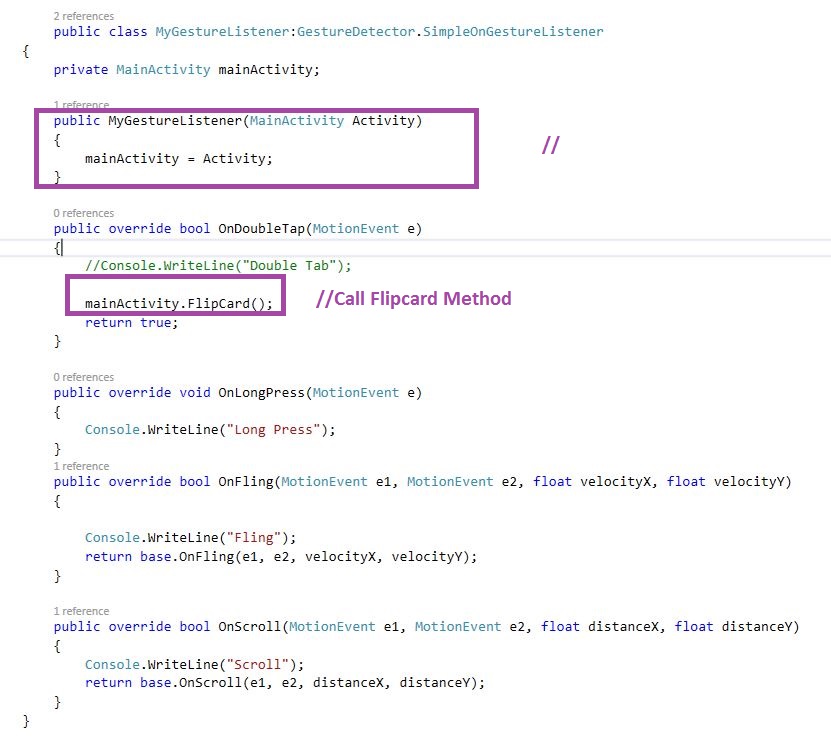

Step 15: Open MyGestureListener and add the code, given below:


C# Code

public class MyGestureListener: GestureDetector.SimpleOnGestureListener
{
    private MainActivity mainActivity;
    public MyGestureListener(MainActivity Activity) {
        mainActivity = Activity;
    }
    public override bool OnDoubleTap(MotionEvent e) {
        //Console.WriteLine("Double Tab");
        mainActivity.FlipCard();
        return true;
    }
    public override void OnLongPress(MotionEvent e) {
        Console.WriteLine("Long Press");
    }
    public override bool OnFling(MotionEvent e1, MotionEvent e2, float velocityX, float velocityY) {
        Console.WriteLine("Fling");
        return base.OnFling(e1, e2, velocityX, velocityY);
    }
    public override bool OnScroll(MotionEvent e1, MotionEvent e2, float distanceX, float distanceY) {
        Console.WriteLine("Scroll");
        return base.OnScroll(e1, e2, distanceX, distanceY);
    }
}

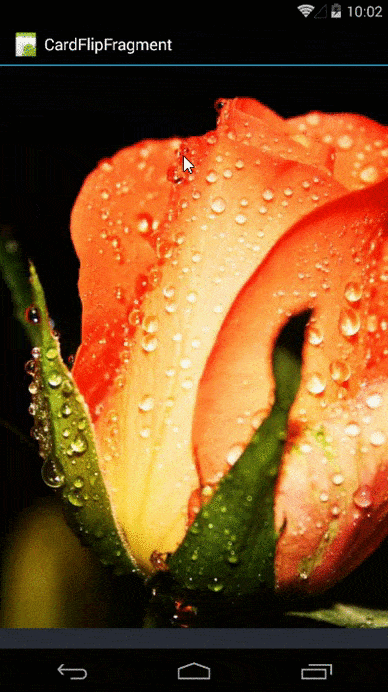

Step 16: Debug and run the app.



Finally, we successfully created Xamarin Android flip card animation between the fragments, using Gesture event.
