Xamarin Android: Create Android Custom Action Bar Menu And Popup Menu

Let’s start.

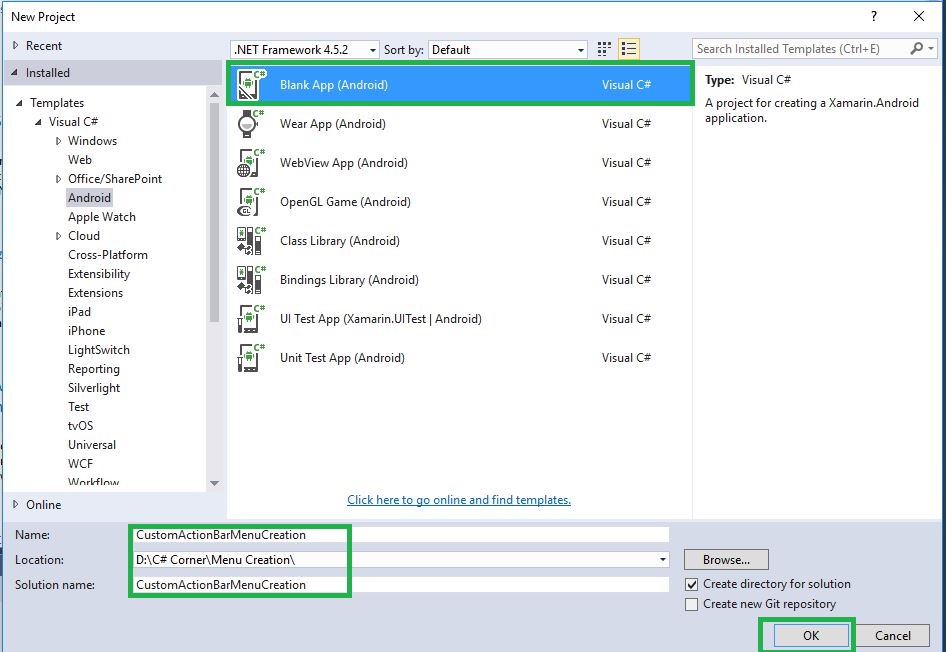

Step 1: Open Visual Studio ->New Project ->Templates ->Visual C# ->Android ->Blank App.

Select Blank App and give the Project Name and Project Location.

CUSTOM ACTION BAR MENU

Step 2: Next, create options_menu.xml file. Go to Solution Explorer -> Project Name ->Resources ->values. Then, right click and go to Add->New Item. This opens a new dialog box. Select XML File and give it a name, as option_menu.xml.



Step 3: The next step is to open the Solution Explorer -> Project Name ->Resources ->values ->options_menu.xml. Click on Open Design View and then, give the following code in it.

<?xml version="1.0" encoding="utf-8" ?>
<menu xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto">
    <!--///showAsAction="always" ///-->
    <item android:id="@+id/action_settings" android:title="Share" showAsAction="always" />
    <item android:id="@+id/action_settings1" android:title="Bluetooth" showAsAction="always" />
    <item android:id="@+id/action_settings2" android:title="Exit" showAsAction="always" />
    <!--/android:showAsAction="ifRoom"/-->
    <item android:id="@+id/action_settings3" android:title="Share" android:showAsAction="ifRoom" />
    <item android:id="@+id/action_settings4" android:title="Bluetooth" android:showAsAction="ifRoom" />
</menu>

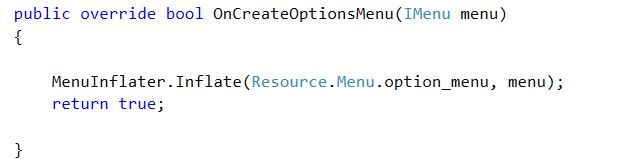

Step 4: Next, open Solution Explorer -> Project Name ->MainActivity.cs. Create OnCreateOptionsMenu() after Oncreate() method.

public override bool OnCreateOptionsMenu(IMenu menu)
{
    MenuInflater.Inflate(Resource.Menu.option_menu, menu);
    return true;
}

POPUP MENU CREATION

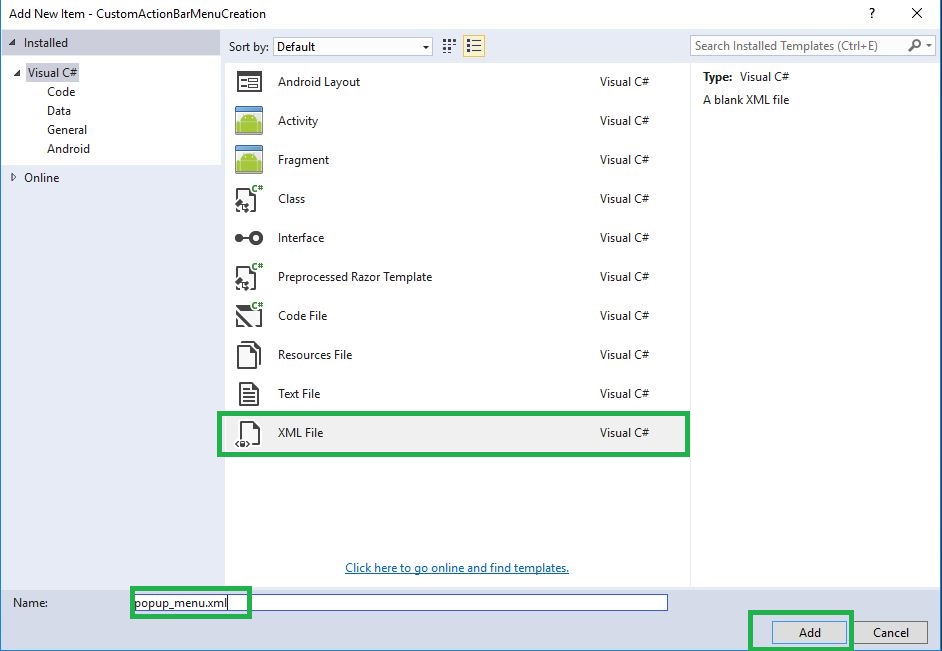

Step 5: Now, create another xml file as options_popup.xml file. For this, go to Solution Explorer -> Project Name ->Resources ->values. Right click and Add ->New Item. Then, open new dialog box. Then, select XML File and give it the name as popup_menu.xml.



Step 6: Next, open the Solution Explorer -> Project Name ->Resources ->values -> popup_menu.xml. Click on Open Design View. Then, give the following code:

<?xml version="1.0" encoding="utf-8" ?>
<menu xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto">
    <item android:id="@+id/action_setting1" android:title="Share" showAsAction="always" />
    <item android:id="@+id/action_settings2" android:title="Bluetooth" showAsAction="always" />
    <item android:id="@+id/action_settings3" android:title="Exit" showAsAction="always" />
</menu>

Step 7: Next step is to open the Solution Explorer -> Project Name ->Resources ->Layout ->Main.axml. Then, give the following code.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent">
    <Button android:id="@+id/btnpopupmenu" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="POPUP MENU" />
</LinearLayout>

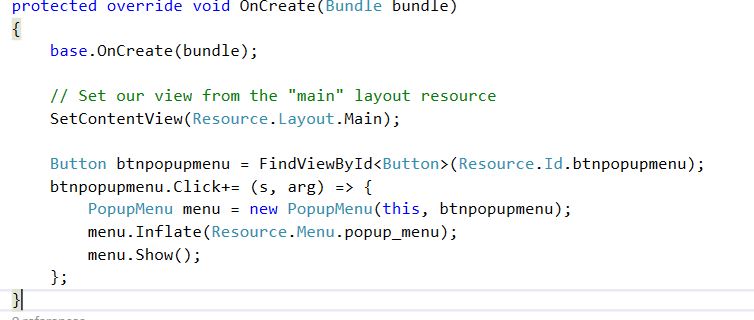

Step 8: Now, open Solution Explorer -> Project Name -> MainActivity.cs. Then, give the following code:



protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    // Set our view from the "main" layout resource
    SetContentView(Resource.Layout.Main);
    Button btnpopupmenu = FindViewById < Button > (Resource.Id.btnpopupmenu);
    btnpopupmenu.Click += (s, arg) =>
    {
        PopupMenu menu = new PopupMenu(this, btnpopupmenu);
        menu.Inflate(Resource.Menu.popup_menu);
        menu.Show();
    };
}

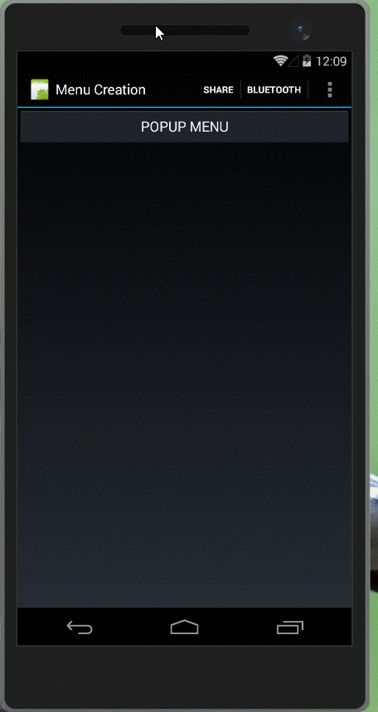

Step 9: Press F5 or Build and Run the Application.



Finally, we have successfully created the Xamarin Android Custom Action Bar Menu and created the Popup Menu.
