Xamarin Android: Create Android ISharedPreferences App

Introduction

This application is to create and maintain Session Values in Xamarin Android.

Let’s start

Step 1

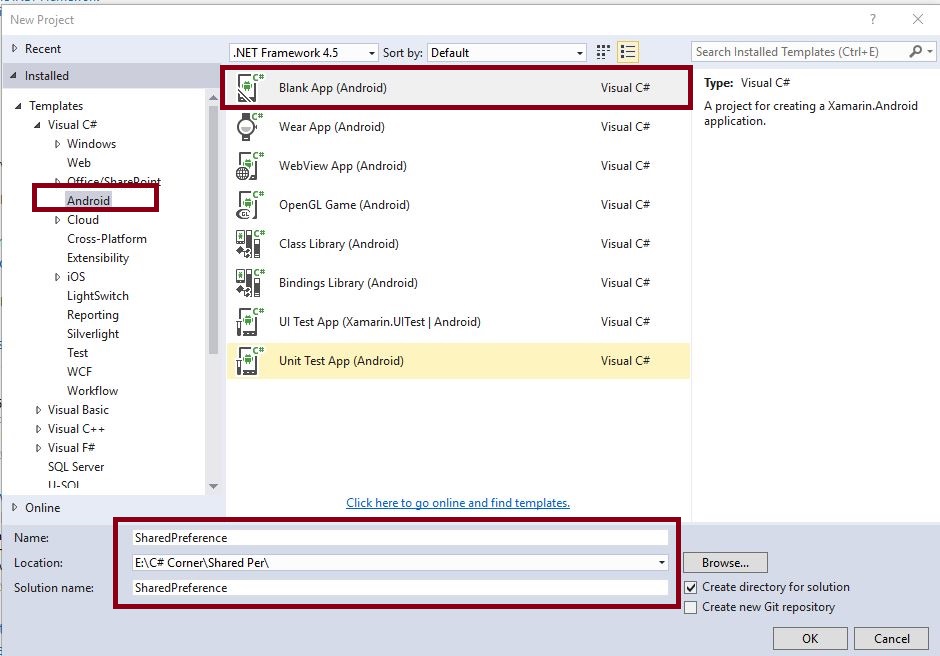

Open Visual Studio, New Project, Templates, Visual C#, Android, Blank App, Select Blank App (Android). Then give Project Name and Project Location.

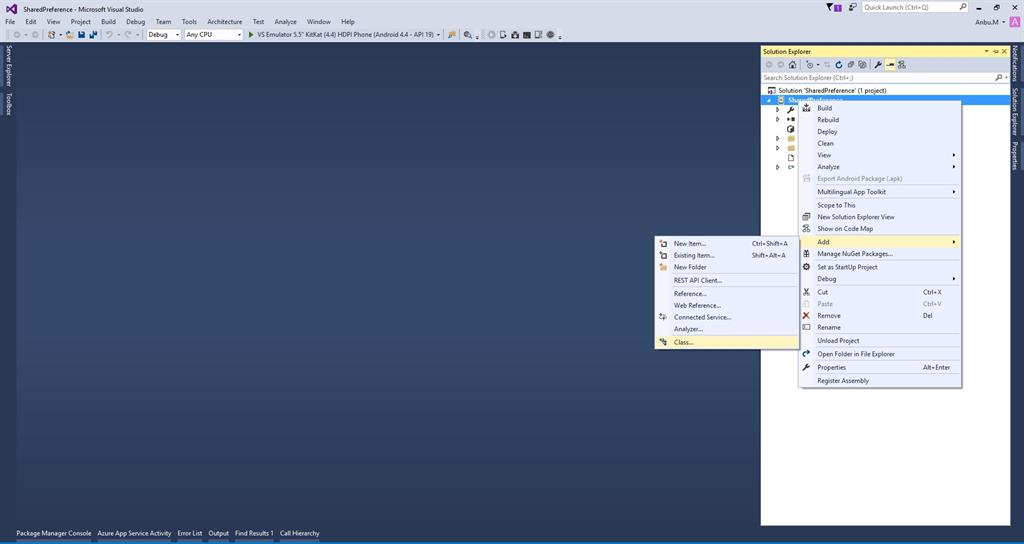

Step 2 - Next go to Solution Explorer-> Project Name then Right Click to Add->Class and open new Dialog box.



Step 3 - Dialog box to select Class and give the Name AppPreferences.cs,

Step 4 - Next, Open Solution Explorer, Project Name, Resources, AppPreferences.cs. Click to open the following code.

C# Code

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using Android.App;
  6. using Android.Content;
  7. using Android.OS;
  8. using Android.Runtime;
  9. using Android.Views;
  10. using Android.Widget;
  11. using Android.Preferences; //Add New NameSpace
  12. namespace SharedPreference
  13. {
  14. public class AppPreferences
  15.  private ISharedPreferences nameSharedPrefs;
  16.   private ISharedPreferencesEditor namePrefsEditor; //Declare Context,Prefrences name and Editor name
  17.   private Context mContext;
  18.   private static String PREFERENCE_ACCESS_KEY = "PREFERENCE_ACCESS_KEY"//Value Access Key Name
  19.   public static String NAME = "NAME"//Value Variable Name
  20.   public AppPreferences(Context context)
  21.   {
  22.   this.mContext = context;
  23.   nameSharedPrefs = PreferenceManager.GetDefaultSharedPreferences(mContext);
  24.   namePrefsEditor = nameSharedPrefs.Edit();
  25.   }
  26.   public void saveAccessKey(string key) // Save data Values
  27.   {
  28.   namePrefsEditor.PutString(PREFERENCE_ACCESS_KEY, key);
  29.   namePrefsEditor.Commit();
  30.   }
  31.   public string getAccessKey() // Return Get the Value
  32.   {
  33.   return nameSharedPrefs.GetString(PREFERENCE_ACCESS_KEY, "");
  34.   }
  35.   }
  36.   }

Step 5

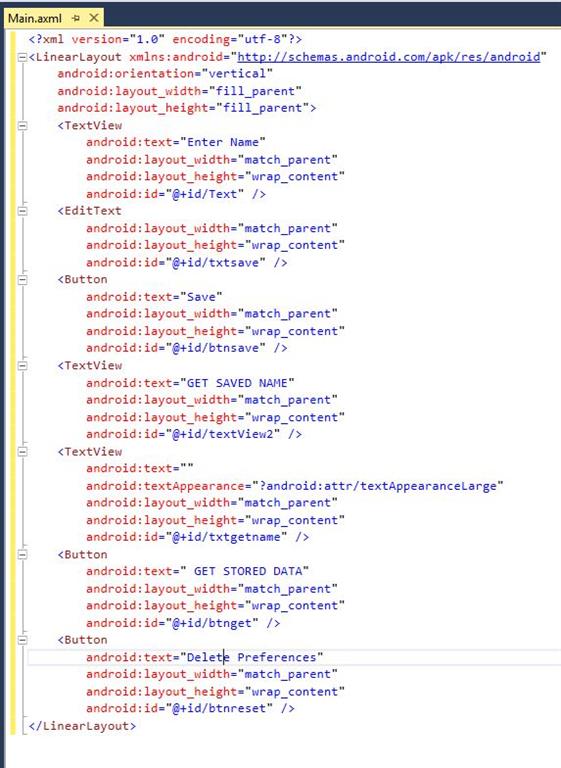

Then Open Solution Explorer, Project Name, Resources, layout, Main.axml, then click open Design View. Select Toolbar, then Drag and Drop design of Buttons, TextView, PlainText.

XML Code

  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  4.
  5. android:orientation="vertical"
  6.
  7. android:layout_width="fill_parent"
  8.
  9. android:layout_height="fill_parent">
  10.
  11. <TextView
  12.
  13. android:text="Enter Name"
  14.
  15. android:layout_width="match_parent"
  16.
  17. android:layout_height="wrap_content"
  18.
  19. android:id="@+id/Text" />
  20.
  21. <EditText
  22.
  23. android:layout_width="match_parent"
  24.
  25. android:layout_height="wrap_content"
  26.
  27. android:id="@+id/txtsave" />
  28.
  29. <Button
  30.
  31. android:text="Save"
  32.
  33. android:layout_width="match_parent"
  34.
  35. android:layout_height="wrap_content"
  36.
  37. android:id="@+id/btnsave" />
  38.
  39. <TextView
  40.
  41. android:text="GET SAVED NAME"
  42.
  43. android:layout_width="match_parent"
  44.
  45. android:layout_height="wrap_content"
  46.
  47. android:id="@+id/textView2" />
  48.
  49. <TextView
  50.
  51. android:text=""
  52.
  53. android:textAppearance="?android:attr/textAppearanceLarge"
  54.
  55. android:layout_width="match_parent"
  56.
  57. android:layout_height="wrap_content"
  58.
  59. android:id="@+id/txtgetname" />
  60.
  61. <Button
  62.
  63. android:text=" GET STORED DATA"
  64.
  65. android:layout_width="match_parent"
  66.
  67. android:layout_height="wrap_content"
  68.
  69. android:id="@+id/btnget" />
  70.
  71. <Button
  72.
  73. android:text="Delete Preferences"
  74.
  75. android:layout_width="match_parent"
  76.
  77. android:layout_height="wrap_content"
  78.
  79. android:id="@+id/btnreset" />
  80.
  81. </LinearLayout>

Step 6

Then open Solution Explorer, Project Name, MainActivity.cs. Click to open C# Code page. Then go to section OnCreate() and declare create Button, TextView and EditText Events.

C# Code

  1. using System;
  2.
  3. using Android.App;
  4.
  5. using Android.Content;
  6.
  7. using Android.Runtime;
  8.
  9. using Android.Views;
  10.
  11. using Android.Widget;
  12.
  13. using Android.OS;
  14.
  15. using Android.Preferences;
  16.
  17. namespace SharedPreference
  18.
  19. {
  20.
  21. [Activity(Label = "SharedPreference", MainLauncher = true, Icon = "@drawable/icon")]
  22.
  23. public class MainActivity : Activity
  24.
  25. {
  26.
  27. Button btnsave;
  28.
  29. Button btnget;
  30.
  31. Button btnreset;
  32.
  33. EditText txtname;
  34.
  35. TextView txtview;
  36.
  37. protected override void OnCreate(Bundle bundle)
  38.
  39. {
  40.
  41. base.OnCreate(bundle);
  42.
  43. // Set our view from the "main" layout resource
  44.
  45. SetContentView(Resource.Layout.Main);
  46.
  47. // Get our button from the layout resource,
  48.
  49. // and attach an event to it
  50.
  51. btnsave = FindViewById<Button>(Resource.Id.btnsave);
  52.
  53. btnget = FindViewById<Button>(Resource.Id.btnget);
  54.
  55. btnreset = FindViewById<Button>(Resource.Id.btnreset);
  56.
  57. txtname = FindViewById<EditText>(Resource.Id.txtsave);
  58.
  59. txtview = FindViewById<TextView>(Resource.Id.txtgetname);
  60.
  61. btnsave.Click += Btnsave_Click;
  62.
  63. btnget.Click += Btnget_Click;
  64.
  65. btnreset.Click += Btnreset_Click;
  66.
  67. }
  68.
  69. }

Step 7

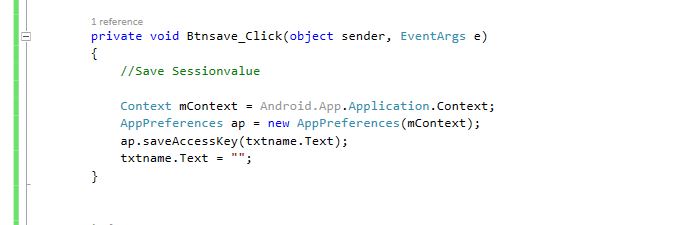

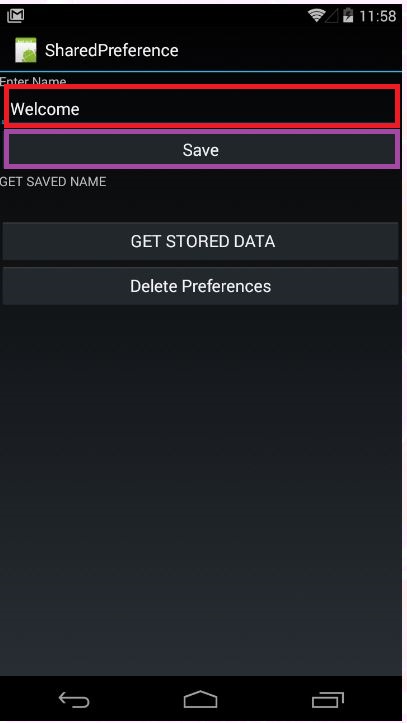

Next to create Save Button Event, save the entered text in textbox values. It is the value to maintain Session of AppPreferences.

C# Code

  1. private void Btnsave_Click(object sender, EventArgs e)
  2.
  3. {
  4.
  5. //Save Sessionvalue
  6.
  7. Context mContext = Android.App.Application.Context;
  8.
  9. AppPreferences ap = new AppPreferences(mContext);
  10.
  11. ap.saveAccessKey(txtname.Text);
  12.
  13. txtname.Text = "";
  14.
  15. }

Step 8

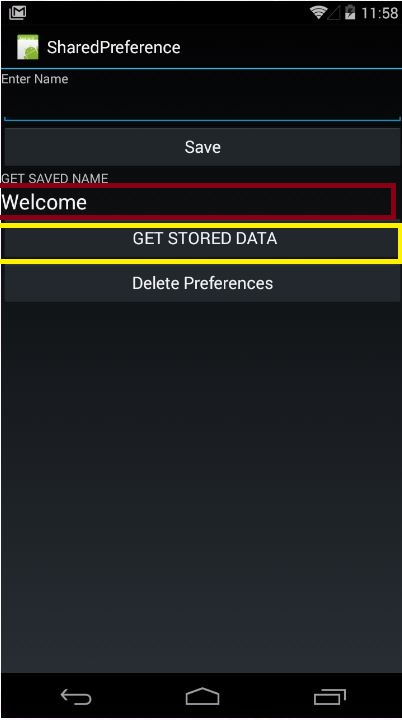

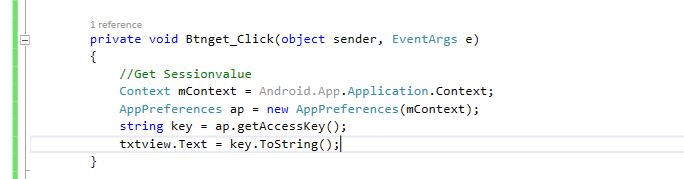

Next to create Get Button Event, this event work to retrieve the AppPreferences stored value. After Retrieve Value it will display in TextView.



C# Code

  1. private void Btnget_Click(object sender, EventArgs e)
  2. {
  3.
  4. //Get Sessionvalue
  5.
  6. Context mContext = Android.App.Application.Context;
  7.
  8. AppPreferences ap = new AppPreferences(mContext);
  9.
  10. string key = ap.getAccessKey();
  11.
  12. txtview.Text = key.ToString();
  13.
  14. }

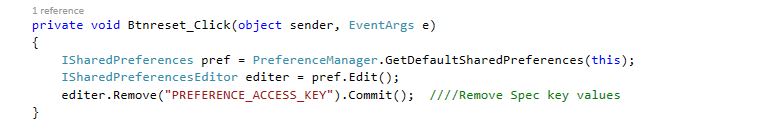

Step 9 - Next to create Reset Button Event, this event would work with remove stored value in specified ACCESS_KEY.

C# Code
  1. private void Btnreset_Click(object sender, EventArgs e)
  2.   {
  3. ISharedPreferences pref = PreferenceManager.GetDefaultSharedPreferences(this);
  4.  ISharedPreferencesEditor editer = pref.Edit();
  5.   editer.Remove("PREFERENCE_ACCESS_KEY").Commit(); ////Remove Spec key values
  6.   }

Step 10 - Press F5 or Build and Run the Application.




Click Delete Preferences button to remove Session values.

Finally, we successfully created Xamarin Android SharedPreferences(AppPreferences) Application.
