Xamarin Android: Create Xamarin Android Google Map With Add Markers

Let’s start

Before we create a Google Map application we need  Signed Fingerprint SHA1 KEY. So, I already explained how to create SHA1 KEY.

Step 1:

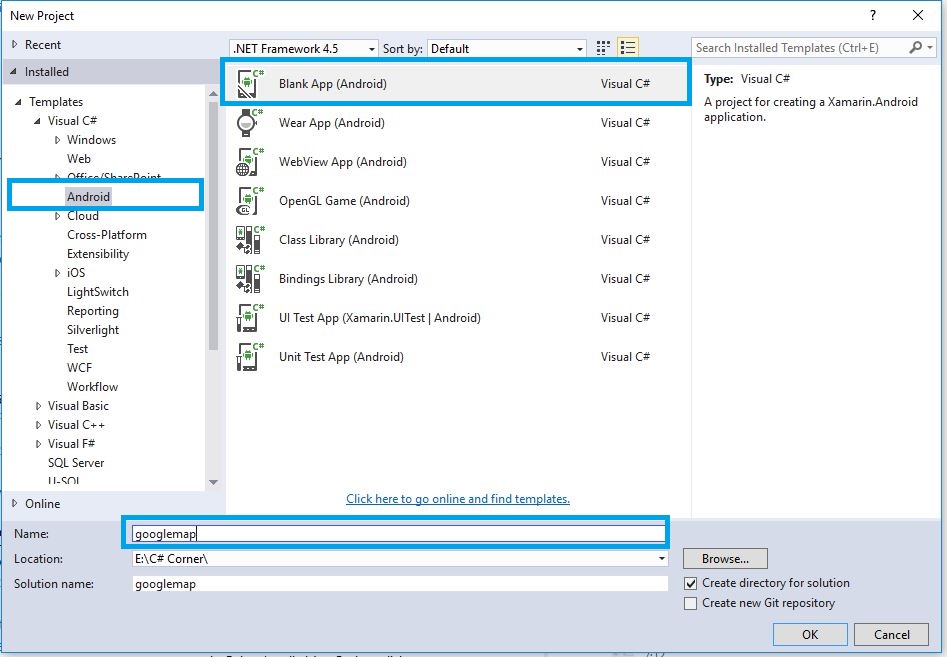

Open Visual Studio, New Project, Templates, Visual C#, Android, then click Blank App, and select Blank App. Then give Project Name and Project Location.

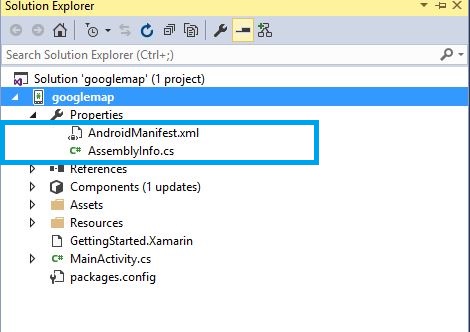

Step 2:Next Click to select Solution Explorer->Project Name->Properties-> AndroidManifest.xml file.

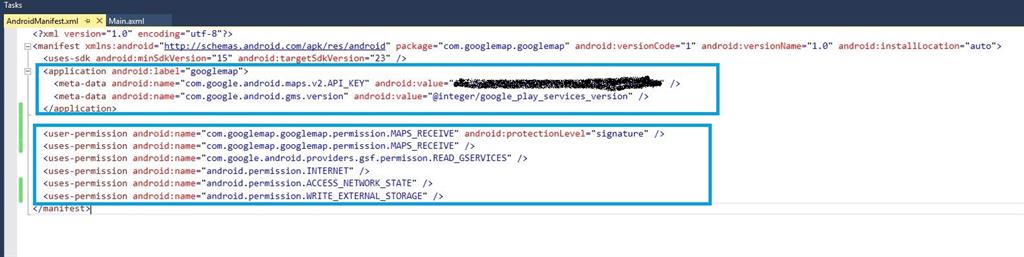

Step 3: Here will be Copy and paste of the already created Google Map SHA1 KEY and alsoit will give some permissions.



XML Code:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.googlemap.googlemap" android:versionCode="1" android:versionName="1.0" android:installLocation="auto">
<uses-sdk android:minSdkVersion="15" android:targetSdkVersion="23" />

<application android:label="googlemap">

<meta-data android:name="com.google.android.maps.v2.API_KEY" android:value="YOUR_API KEY" />

<meta-data android:name="com.google.android.gms.version" android:value="@integer/google_play_services_version" />

</application>

<user-permission android:name="com.googlemap.googlemap.permission.MAPS_RECEIVE" android:protectionLevel="signature" />

<uses-permission android:name="com.googlemap.googlemap.permission.MAPS_RECEIVE" />
<uses-permission android:name="com.google.android.providers.gsf.permisson.READ_GSERVICES" />

<uses-permission android:name="android.permission.INTERNET" />

<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

</manifest>

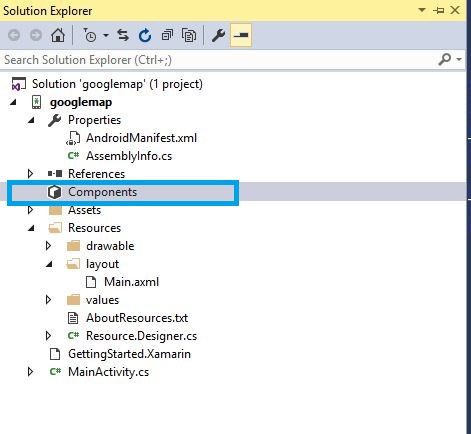

Step 4: Next we add Google Map References to click Solution Explorer-> Project Name->Components.





Step 5:

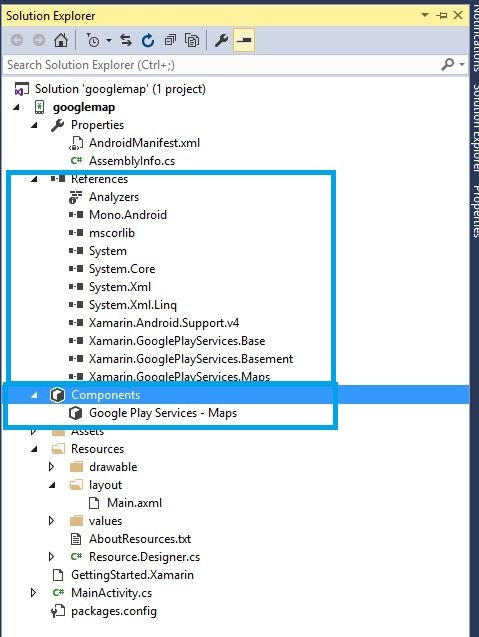

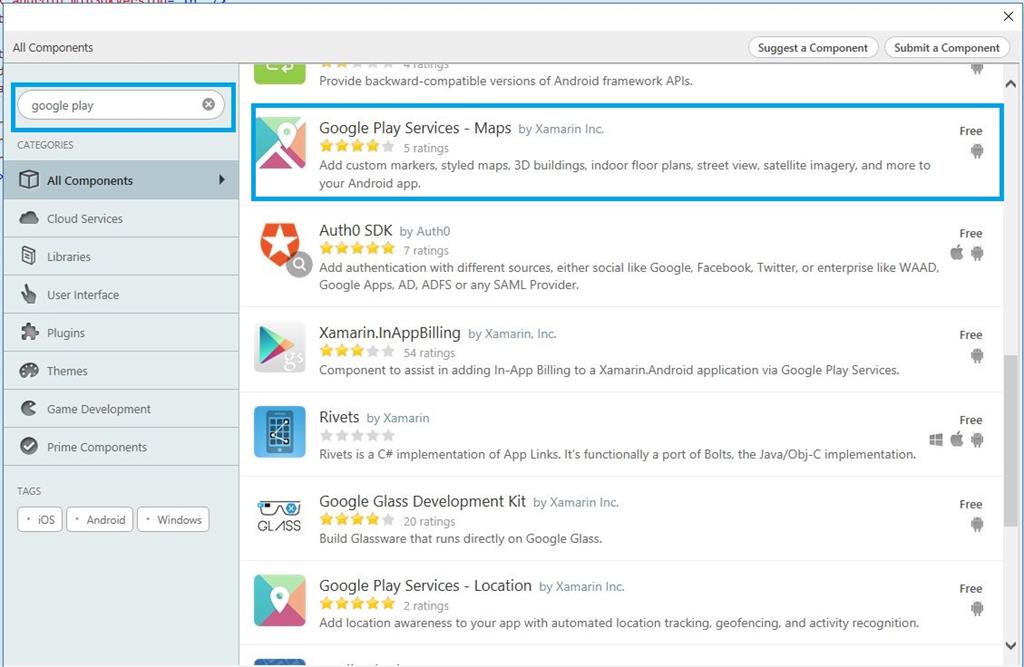

Then Add packages Google Play services - Maps, then check Solution Explorer-Project Name->References to be added Google play services packages.

Step 6:

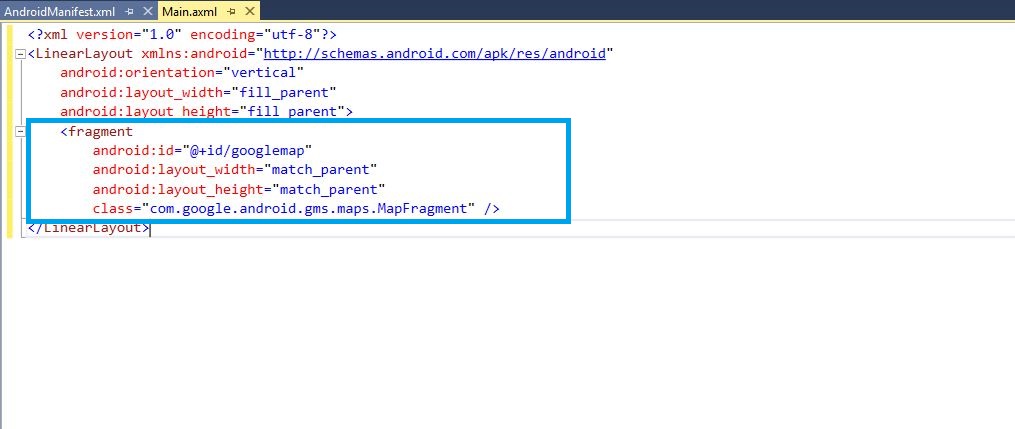

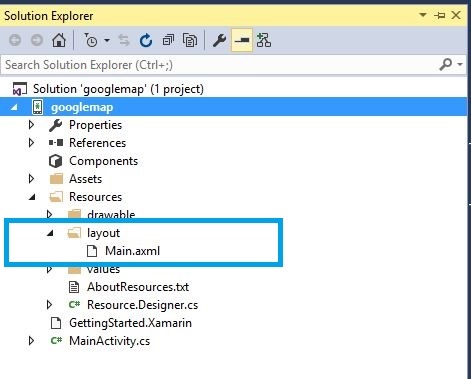

Next create Map function. In select Solution Explorer->Project Name->Resources->Layout->Main.axml, Click and open AXML Design Page to added below Code.



XML CODE:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical"

android:layout_width="fill_parent"

android:layout_height="fill_parent">

<fragment

   android:id="@+id/googlemap"

   android:layout_width="match_parent"

   android:layout_height="match_parent"

   class="com.google.android.gms.maps.MapFragment" />

</LinearLayout>

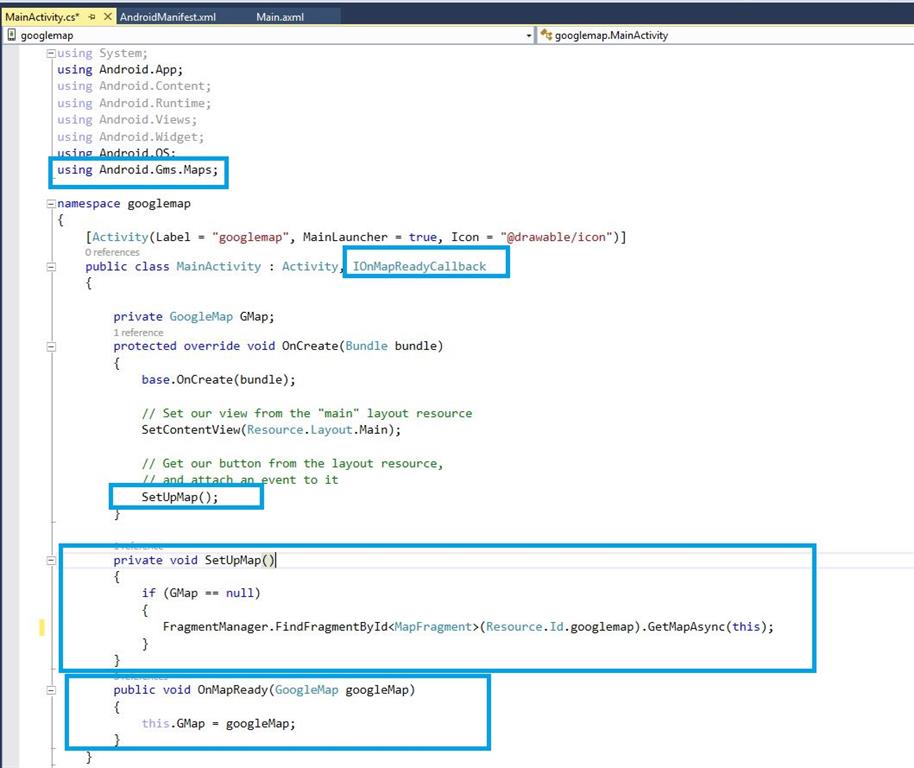

Step 7: Next open MainActivity.cs page, then Add Namespace and following code.



Namespace: using Android.Gms.Maps;

C# Code:

public class MainActivity: Activity, IOnMapReadyCallback
{
    private GoogleMap GMap;
    protected override void OnCreate(Bundle bundle)
    {
        base.OnCreate(bundle);
        // Set our view from the "main" layout resource
        SetContentView(Resource.Layout.Main);
        SetUpMap();
    }
    private void SetUpMap() {
        if (GMap == null) {
            FragmentManager.FindFragmentById < MapFragment > (Resource.Id.googlemap).GetMapAsync(this);
        }
    }
    public void OnMapReady(GoogleMap googleMap) {
        this.GMap = googleMap;
    }
}

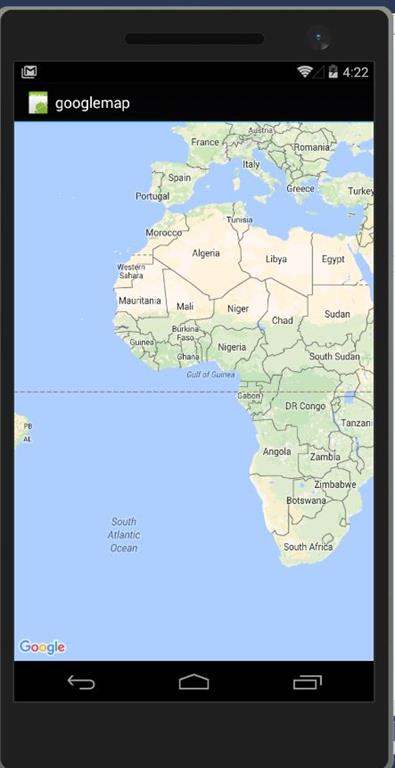

Step 8: Then Debug and run the application then check emulator showing Google map,



Step 9: Next Google map Marker will be added.

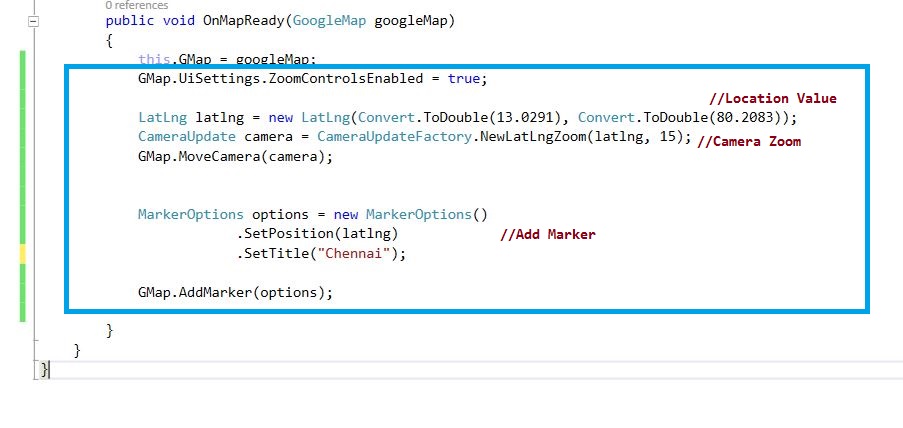

Step 10: Open MainActivity.cs page select section of OnMapReady Function to added following code.



C# Code:

LatLng latlng = new LatLng(Convert.ToDouble(13.0291), Convert.ToDouble(80.2083));
CameraUpdate camera = CameraUpdateFactory.NewLatLngZoom(latlng, 15);
GMap.MoveCamera(camera);
MarkerOptions options = new MarkerOptions().SetPosition(latlng).SetTitle("Chennai");
GMap.AddMarker(options);

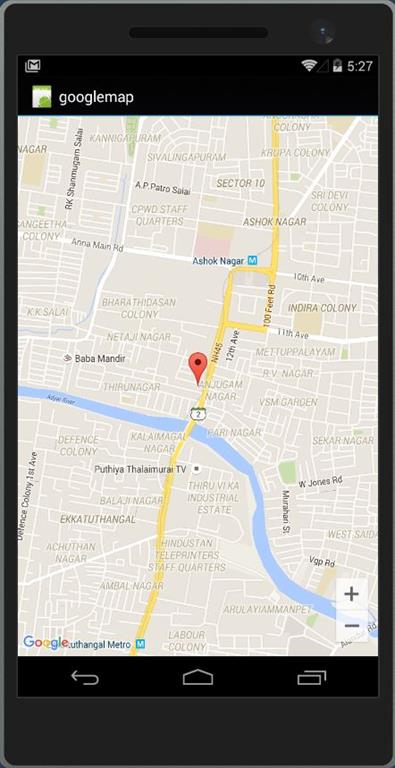

Step 11: Then Run the Application,



Finally, we have successfully created Xamarin Android Google Map with marker Application.
