Xamarin.Android - Download Image From URL With Progress-Bar

Introduction



In this article, you will learn how to download an image from a URL address into your Xamarin Android application.



The prerequisites

• Android Support Library v7 AppCompat
• Any Image URL

The steps given below are required to be followed in order to create an app that lets you download an image from the URL with Progress-bar.



Step 1 - Create Android Project



Create your Android solution in Visual Studio or Xamarin Studio. Select Android and from the list, choose Android Blank App. Give it a name, like SaveWithProgress.



Step 2 - Add Android Support v7 AppCompat Library

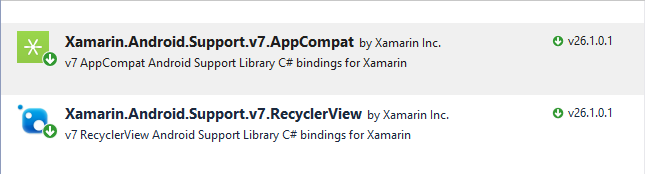

First of all, in References, add a reference Android.Support.v7. AppCompat using NuGet Package Manager, as shown below.







Step 3 - Add XML File



After successful installation of AppCompat, add a new XML file. For that, go to Solution Explorer-> Project Name-> Resources-> Values-> Right-click to add a new item, select XML, and give it a name, such as style.xml. Open this XML file and add the following code.



(Folder Name: values, File Name: style.xml)



XML Code

<?xml version="1.0" encoding="utf-8" ?>
<resources>
  <style name="MyTheme" parent="MyTheme.Base">
  </style>
  <!--Base theme applied no matter what API-->
  <style name="MyTheme.Base" parent="Theme.AppCompat.Light.DarkActionBar">
    <item name="windowNoTitle">true</item>
    <!--We will be using the toolbar so no need to show ActionBar-->
    <item name="windowActionBar">false</item>
    <!--Set theme color from http://www.google.com/design/spec/style/color.html#color-co-->
    <!--Color Primary is used for default action bar backround-->
    <item name="colorPrimary">#009688</item>
    <!--Color Primary Dark is use for status bar-->
    <item name="colorPrimaryDark">#1976D2</item>
    <!--ColorAccent is used as the default value for
    ColorControlActivated which is used to tint widgts-->
    <item name="colorAccent">#FF4081</item>
    <item name="colorControlHighlight">#FF4081</item>
    <!--You can also set ColorControlNormal ColorControlActivated
      ColorControlHihglight colorSwitchThumbNormal.-->
  </style>
</resources>

Step 4 - Add XML File



Now, add a new folder to the Resources Folder with name values-v21. Similarly, add a new XML file inside values-v21 folder - style.xml and add the following code.



(Folder Name: values-v21, File Name: style.xml)



XML Code

<?xml version="1.0" encoding="utf-8" ?>
<resources>
  <!--
  Base Application theme for API 21+. this theme
  replaces MyTheme from res/style.xml on API 21+ devices-->
  <style name="MyTheme" parent="MyTheme.Base">
    <item name="android:windowContentTransitions">true</item>
    <item name="android:windowAllowEnterTransitionOverlap">true</item>
    <item name="android:windowAllowReturnTransitionOverlap">true</item>
    <item name="android:windowSharedElementEnterTransition">@android:transition/move</item>
    <item name="android:windowSharedElementExitTransition">@android:transition/move</item>
    <item name="android:windowTranslucentStatus">true</item>
  </style>
</resources>

Step 5 - Writing DownloadImageFromUrl Class



Before you go further, you need to write your DownloadImageFromUrl class. For this, go to Solution Explorer-> Project Name and right-click. Select Add -> New Item-> Class. Give it a name like DownloadImageFromUrl.cs and write the following code with appropriate namespaces.



(File Name: DownloadImageFromUrl.cs)



C# Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Android.App;
using Android.Content;
using Android.Graphics.Drawables;
using Android.OS;
using Android.Runtime;
using Android.Views;
using Android.Widget;
using Java.IO;
using Java.Net;
namespace SaveWithProgress
{
    public class DownloadImageFromUrl : AsyncTask<string, string, string>
    {
        private ProgressDialog pDialog;
        private ImageView imgView;
        private Context context;
        public DownloadImageFromUrl(Context context, ImageView imgView)
        {
            this.context = context;
            this.imgView = imgView;
        }
        protected override void OnPreExecute()
        {
            pDialog = new ProgressDialog(context);
            pDialog.SetMessage("Downloading file. Please wait...");
            pDialog.Indeterminate = false;
            pDialog.Max = 100;
            pDialog.SetProgressStyle(ProgressDialogStyle.Horizontal);
            pDialog.SetCancelable(true);
            pDialog.Show();
            base.OnPreExecute();
        }
        protected override void OnProgressUpdate(params string[] values)
        {
            base.OnProgressUpdate(values);
            pDialog.SetProgressNumberFormat(values[0]);
            pDialog.Progress = int.Parse(values[0]);
        }
        protected override void OnPostExecute(string result)
        {
            string strongPath = Android.OS.Environment.ExternalStorageDirectory.Path;
            string filePath = System.IO.Path.Combine(strongPath, "download.jpg");
            pDialog.Dismiss();
            imgView.SetImageDrawable(Drawable.CreateFromPath(filePath));
        }
        protected override string RunInBackground(params string[] @params)
        {
            string strongPath = Android.OS.Environment.ExternalStorageDirectory.Path;
            string filePath = System.IO.Path.Combine(strongPath, "download.jpg");
            int count;
            try
            {
                URL url = new URL(@params[0]);
                URLConnection connection = url.OpenConnection();
                connection.Connect();
                int LengthOfFile = connection.ContentLength;
                InputStream input = new BufferedInputStream(url.OpenStream(), LengthOfFile);
                OutputStream output = new FileOutputStream(filePath);
                byte[] data = new byte[1024];
                long total = 0;
                while ((count = input.Read(data)) != -1 )
                {
                    total += count;
                    PublishProgress(""+(int)((total / 100) / LengthOfFile));
                    output.Write(data, 0, count);
                }
                output.Flush();
                output.Close();
                input.Close();
            }
            catch (Exception e)
            {
            }
            return null;
        }
    }
}

Step 6 - Main Layout



Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml. Open this main layout file and add the following code.



(File Name: Main.axml , Folder Name: Layout)



XML Code

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:local="http://schemas.android.com/apk/res-auto"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <android.support.v7.widget.Toolbar
        android:id="@+id/toolbar"
        android:fitsSystemWindows="true"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:minHeight="?attr/actionBarSize"
        android:background="?attr/colorPrimary"
        android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
        local:popupTheme="@style/ThemeOverlay.AppCompat.Light" />
    <Button
        android:text="Download Image"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/btnDownload" />
    <ImageView
        android:src="@android:drawable/ic_menu_gallery"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/imageView" />
</LinearLayout>

Step 7 - Main Activity Class



Now, go to Solution Explorer-> Project Name-> MainActivity and add the following code to the main activity with appropriate namespaces.



(FileName: MainActivity)



C# Code

using Android.App;
using Android.Widget;
using Android.OS;
using Android.Support.V7.App;
namespace SaveWithProgress
{
    [Activity(Label = "SaveWithProgress", MainLauncher = true , Theme ="@style/MyTheme")]
    public class MainActivity : AppCompatActivity
    {
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);
            // Set our view from the "main" layout resource
            SetContentView(Resource.Layout.Main);
            var btnDownload = FindViewById<Button>(Resource.Id.btnDownload);
            var imageView = FindViewById<ImageView>(Resource.Id.imageView);
            btnDownload.Click += delegate
            {
                DownloadImageFromUrl download = new DownloadImageFromUrl(this, imageView);
                download.Execute("http://www.qygjxz.com/data/out/244/4304228-wallpaper-phone-hd.jpg");
            };
        }
    }
}

Step 8 - Permissions From Device



We need permissions from the device. So, go to Solution Explorer-> Properties-> AndroidManifest and add this code inside application tags.

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.INTERNET" />

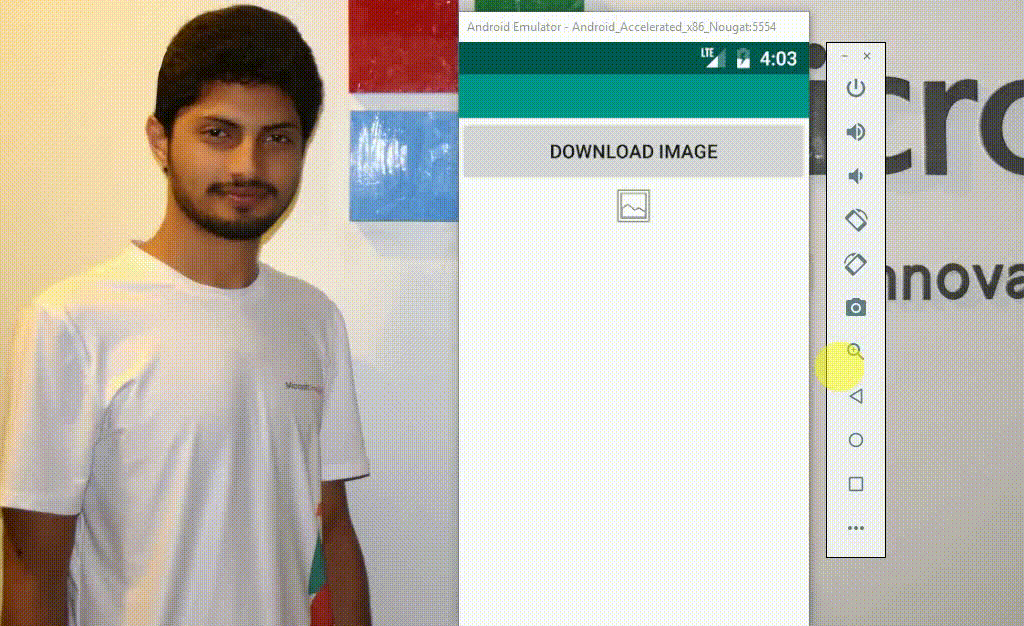

Output







Summary



This was the process of creating an app that allows the users to download an image from a URL with ProgressBar in Xamarin.Android. Please share your comments and feedback.
