Xamarin.Android - Gesture Overlay View


In this article, I shall show you how to create gestures using Gesture Overlay View in Xamarin Android. A "gesture" occurs when a user places one or more fingers on the touchscreen and your application interprets that pattern of touches as a particular gesture.

Step 1

Open Visual Studio emulator for Android and open "Gestures Builder" from emulator apps.


Step 2

Next, click on "Add Gesture" button and draw a gesture, give it a name as shown in the screenshot, and click on "Done" button.

Step 3

After creating some gestures in Gesture Builder, click on emulator double arrow and go to Emulator Tools -> Additional Tools -> SD card. Pick a local folder whose content will be used to populate the SD card and give it a new location.

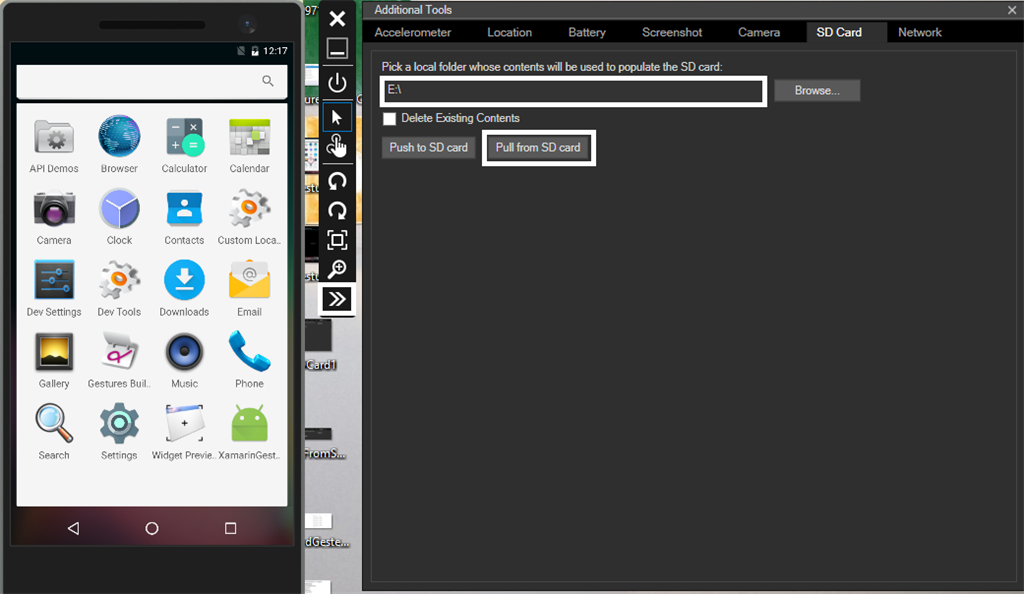

Next, click on "Pull from SD card". The emulator will pull all the emulator data to your local folder.

Step 4

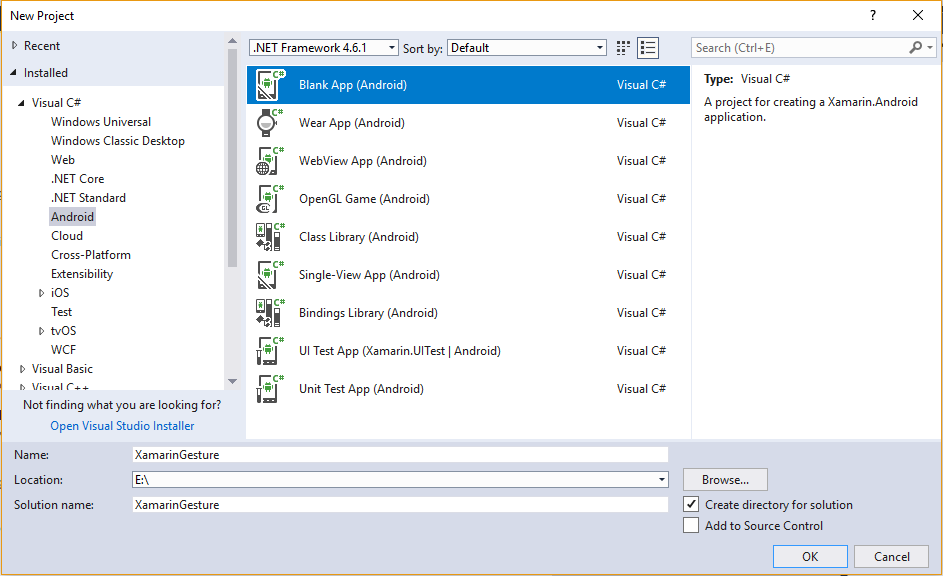

Open Visual Studio and go to New Project-> Templates-> Visual C#-> Android-> Blank app. Give it a name like XamarinGesture.


Step 5

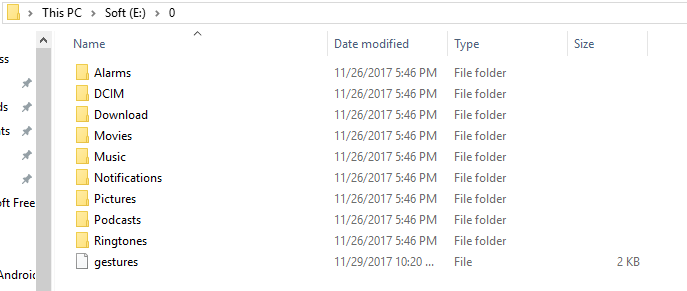

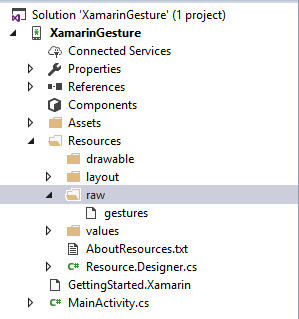

Now, copy the gestures file from your local folder with the name "0" and go to Solution Explorer-> Project Name-> Resources. Right-click to create a new folder, give it a name like Raw, and paste the gesture file in it, as shown in below screenshot.



Step 6

Go to Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml. Open main.axml file and add the following code. The layout will have a TextView in order to display the preview of the gesture name.

(FileName: Main.axml)

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.gesture.GestureOverlayView xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:id="@+id/gesture"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent">
  7.     <TextView
  8.         android:layout_width="wrap_content"
  9.         android:layout_height="wrap_content"
  10.         android:layout_gravity="center"
  11.         android:id="@+id/txtResult"
  12.         android:textSize="30sp"
  13.         android:text="Gesture" />
  14. </android.gesture.GestureOverlayView>


Next, go to Solution Explorer-> Project Name-> MainActivity and add the following code to it using appropriate namespaces.

(FileName: MainActivity)

C# Code

  1. using Android.App;
  2. using Android.Widget;
  3. using Android.OS;
  4. using Android.Gestures;
  5. using static Android.Gestures.GestureOverlayView;
  6. using System.Collections.Generic;
  7. using System.Linq;
  8. namespace XamarinGesture
  9. {
  10.     [Activity(Label = "XamarinGesture", MainLauncher = true)]
  11.     public class MainActivity : Activity, IOnGesturePerformedListener
  12.     {
  13.         GestureLibrary lib;
  14.         TextView txtResult;
  15.         public void OnGesturePerformed(GestureOverlayView overlay, Gesture gesture)
  16.         {
  17.             List<Prediction> predictions = lib.Recognize(gesture).ToList();
  18.             foreach(var item in predictions)
  19.             {
  20.                 if (item.Score > 1.0)
  21.                     txtResult.Text = item.Name;
  22.             }
  23.         }
  24.         protected override void OnCreate(Bundle savedInstanceState)
  25.         {
  26.             base.OnCreate(savedInstanceState);
  27.             // Set our view from the "main" layout resource
  28.             SetContentView(Resource.Layout.Main);
  29.             txtResult = FindViewById<TextView>(Resource.Id.txtResult);
  30.             lib = GestureLibraries.FromRawResource(this, Resource.Raw.gestures);
  31.             if (!lib.Load())
  32.                 Finish();
  33.             GestureOverlayView gesture = FindViewById<GestureOverlayView>(Resource.Id.gesture);
  34.             gesture.AddOnGesturePerformedListener(this);
  35.         }
  36.     }
  37. }

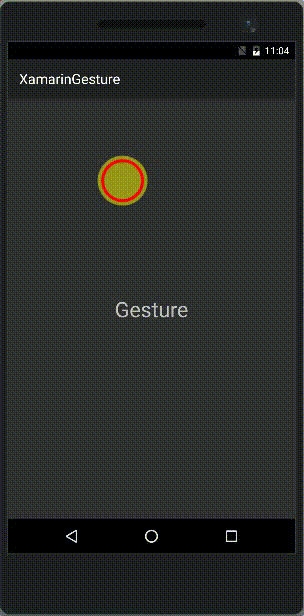

We have finished our gesture builder app. Just rebuild and run the project. You will have the result like below.
