Xamarin.Android - Horizontal And Vertical View In Linear Layout Using Visual Studio 2017

What are Xamarin and Xamarin Forms?

• Xamarin is a cross-platform tool to develop multi-platform applications.
• Xamarin offers a shared code (C#) but separately designed UIs Android (java), Windows (C#), iOS (Objective C & XCODE).
• Xamarin.Forms UIs and shared code (C#) are the same in all projects. To develop multi-platforms applications, run all projects (Android, Windows, iOS) at the same time.

Prerequisites

• Visual Studio 2017 Enterprise

The steps given below are required to be followed in order to design Linear layout horizontal & vertical view in Xamarin.Android, using Microsoft Visual Studio 2017.

Step 1

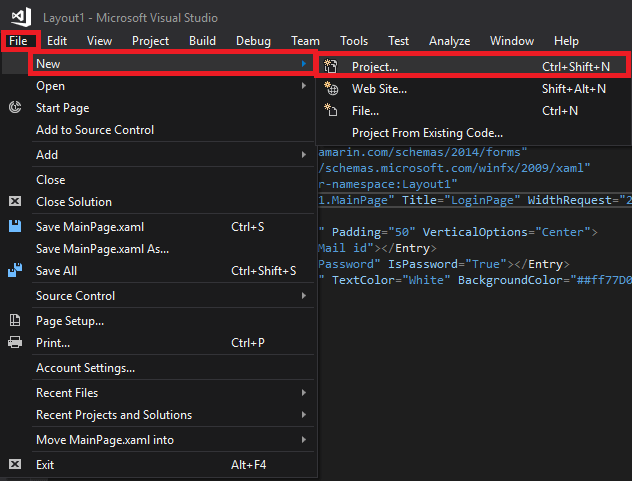

• Go to the Visual Studio 2017.
• Click File -> New -> Project.




Step 2

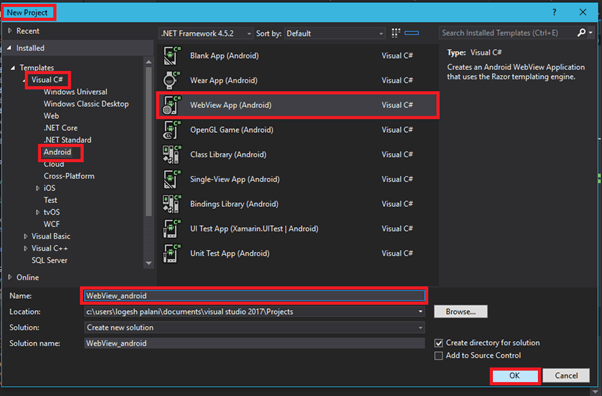

• Click to C# -> Android -> Blank App (Android).
• Enter the application name.
• Go to Blank App = A project for creating a Xamarin.Android Application.




Step 3

After this, go to

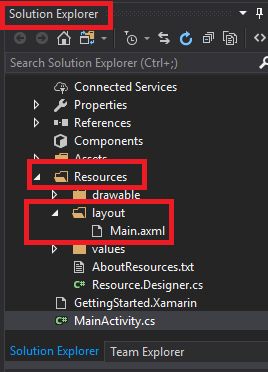

• Open Solution Explorer window.
• Click Resources folder followed by clicking Layout folder -> Open Main.axml




 The below steps are the same for Horizontal & Vertical Views.

Step 4.1: Linear Layout – Horizontal View

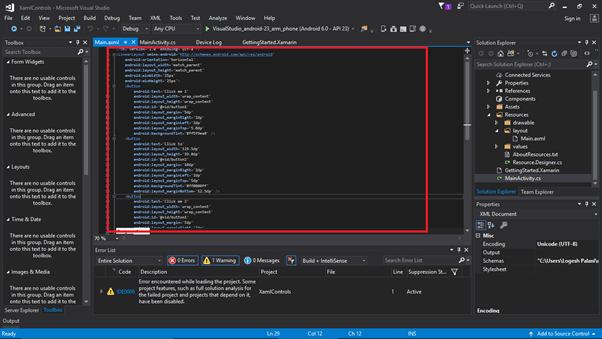

• In this step, go to the .axml page and insert the code given below in Main.axml and save it.




  <?xml version="1.0" encoding="utf-8"?>
  <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
      android:orientation="horizontal"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:minWidth="25px"
      android:minHeight="25px">
      <Button
          android:text="Click me 1"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:id="@+id/button1"
          android:layout_margin="5dp"
          android:layout_marginRight="2dp"
          android:layout_marginLeft="2dp"
          android:layout_marginTop="5.0dp"
          android:backgroundTint="#ff5f9ea0" />
      <Button
          android:text="Click to"
          android:layout_width="129.5dp"
          android:layout_height="39.0dp"
          android:id="@+id/button2"
          android:layout_margin="10dp"
          android:layout_marginRight="2dp"
          android:layout_marginLeft="2dp"
          android:layout_marginTop="5dp"
          android:backgroundTint="#ff0000ff"
          android:layout_marginBottom="12.5dp" />
      <Button
          android:text="Click me 2"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:id="@+id/button1"
          android:layout_margin="5dp"
          android:layout_marginRight="2dp"
          android:layout_marginLeft="2dp"
          android:layout_marginTop="5.0dp"
          android:backgroundTint="#ffdaa520" />
  </LinearLayout>

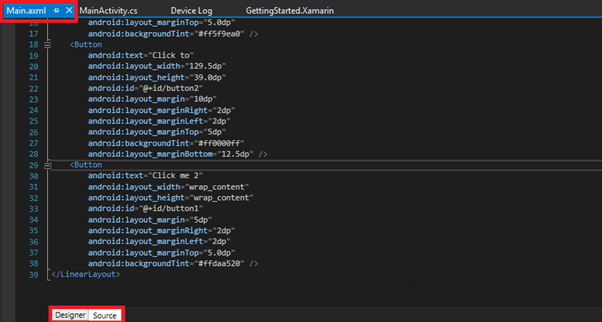

Click Main.axml page Designer View. Wait for a few minutes to get the Designer View visible.

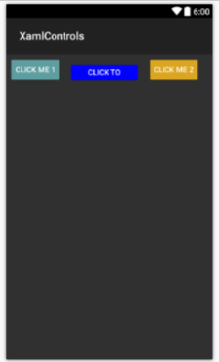

The Designer View horizontal buttons are given below.

Step 4.2: Linear Layout – Vertical View

• In this step, go to axml page. Insert the code given below in Main.axml and save it.




  <?xml version="1.0" encoding="utf-8"?>
  <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
      android:orientation="vertical"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:minWidth="25px"
      android:minHeight="25px">
      <Button
          android:text="Am first button"
          android:layout_width="match_parent"
          android:layout_height="wrap_content"
          android:id="@+id/button1"
          android:backgroundTint="#ffff7f50" />
      <Button
          android:text="ButtonAam Scond Button"
          android:layout_width="match_parent"
          android:layout_height="wrap_content"
          android:id="@+id/button2"
          android:backgroundTint="#ffd2691e" />
      <Button
          android:text="Don't Touch Me"
          android:layout_width="match_parent"
          android:layout_height="wrap_content"
          android:id="@+id/button3"
          android:layout_marginLeft="2dp"
          android:layout_marginRight="2dp"
          android:backgroundTint="#ff7fffd4" />
      <Button
          android:text="touch Me"
          android:layout_width="match_parent"
          android:layout_height="wrap_content"
          android:id="@+id/button4"
          android:backgroundTint="#ffee82ee"
          android:layout_marginRight="2dp"
          android:layout_marginLeft="2dp" />
      <Button
          android:text="Button"
          android:layout_width="match_parent"
          android:layout_height="wrap_content"
          android:id="@+id/button5"
          android:layout_margin="2dp"
          android:layout_marginLeft="2dp"
          android:layout_marginRight="2dp"
          android:backgroundTint="#ff008000" />
  </LinearLayout>

Go to Main.axml page designer view. Wait for a few minutes to get Designer View visible.

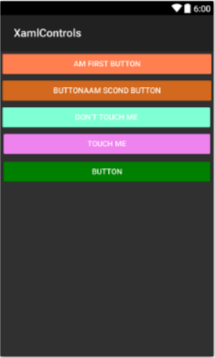

The Designer View vertical buttons are given below.

Your horizontal and vertical Views are designed succesfully.
