Xamarin.Android - To Do List App

Introduction



In this article, I shall show you how to make a To Do List app in Xamarin.Android.



The prerequisite

• Android Support Library v7 AppCompat

The steps given below are required to be followed in order to create a To Do List App in Xamarin.Android, using Visual Studio.



Step 1 - Create Android Project



Create your Android solution in Visual Studio or Xamarin Studio. Select Android and from the list, choose Android Blank App. Give it a name, like ToDoList.



Step 2 - Add Android Support v7 AppCompat Library

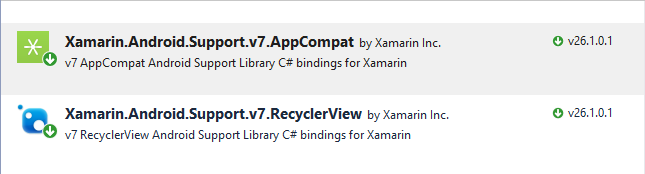

First of all, in References, add a reference of Android.Support.v7. AppCompat using NuGet Package Manager, as shown below.





Step 3 - Main Layout



Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml. Open this main layout file and add the following code.



(File Name: Main.axml , Folder Name: Layout)



XML Code

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
<ListView
    android:id="@+id/lstTask"
    android:layout_width="match_parent"
    android:layout_height="match_parent"/>
</LinearLayout>

Step 4 - Add New Layout



Next, add a new layout by going to Solution Explorer-> Project Name-> Resources-> Layout. Right-click to add a new item, select Layout, and give it a name, such as row.axml. Open this layout file and add the following code.



(Folder Name: Layout , File Name: row.axml)



XML Code

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
  <TextView
  android:id="@+id/task_title"
  android:text="Example"
  android:textSize="20sp"
  android:textColor="@android:color/black"
  android:layout_alignParentLeft="true"
  android:layout_alignParentStart="true"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"/>
  <Button
  android:id="@+id/btnDelete"
  android:text="DELETE"
  android:textSize="20sp"
  android:textColor="@android:color/black"
  android:layout_alignParentRight="true"
  android:layout_alignParentEnd="true"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"/>
</RelativeLayout>

Step 5 - Add Menu



Next, add a new folder by going to Solution Explorer-> Project Name-> Resources-> Right-click to add a new folder. Give it a name, like Menu, and right-click on menu folder to add a new item. Select XML, and give it a name as menu_item.xml. Open this XML file and add the following code.



(Folder Name: menu , File Name: menu_item.xml)



XML Code

<?xml version="1.0" encoding="utf-8" ?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
  <item
    android:id="@+id/action_add"
    android:icon="@android:drawable/ic_menu_add"
    android:title="Add New Task"
    android:showAsAction="always"/>
</menu>

Step 6 - Writing DbHelper Class



Before you go further, you need to write your DbHelper Class. For this, go to Solution Explorer-> Project Name and right-click. Select Add -> New Item-> Class. Give it a name like DbHelper.cs and write the following code with appropriate namespaces.



(File Name: DbHelper.cs)



C# Code

using Android.Content;
using Android.Database;
using Android.Database.Sqlite;
using System;
using System.Collections.Generic;
namespace ToDoList.Helper
{
    public class DbHelper : SQLiteOpenHelper
    {
        private static String DB_NAME = "Ahsan";
        private static int DB_VERSION = 1;
        private static String DB_TABLE = "Task";
        private static String DB_COLUMN = "TaskName";
        public DbHelper(Context context) : base(context, DB_NAME, null, DB_VERSION)
        {
        }
        public override void OnCreate(SQLiteDatabase db)
        {
            string query = $"CREATE TABLE {DbHelper.DB_TABLE} (ID INTEGER PRIMARY KEY AUTOINCREMENT, {DbHelper.DB_COLUMN} TEXT NOT NULL);";
            db.ExecSQL(query);
        }
        public override void OnUpgrade(SQLiteDatabase db, int oldVersion, int newVersion)
        {
            string query = $"DELETE TABLE IF EXISTS {DB_TABLE}";
            db.ExecSQL(query);
            OnCreate(db);
        }
        public void InsertNewTask(String task)
        {
            SQLiteDatabase db = this.WritableDatabase;
            ContentValues values = new ContentValues();
            values.Put(DB_COLUMN, task);
            db.InsertWithOnConflict(DB_TABLE, null, values, Android.Database.Sqlite.Conflict.Replace);
            db.Close();
        }
        public void deleteTask(String task)
        {
            SQLiteDatabase db = this.WritableDatabase;
            db.Delete(DB_TABLE, DB_COLUMN + " = ?", new String[] { task });
            db.Close();
        }
        public List<string> getTaskList()
        {
            List<string> taskList = new List<string>();
            SQLiteDatabase db = this.ReadableDatabase;
            ICursor cursor = db.Query(DB_TABLE, new string[] { DB_COLUMN }, null, null, null, null, null);
            while (cursor.MoveToNext())
            {
                int index = cursor.GetColumnIndex(DB_COLUMN);
                taskList.Add(cursor.GetString(index));
            }
            return taskList;
        }
    }
}

Step 7 - Writing CustomAdapter Class



Similarly, add a new class - CustomAdapter.cs and add the following code with appropriate namespaces.

(File Name: CustomAdapter.cs)



C# Code

using Android.Content;
using Android.Views;
using Android.Widget;
using System.Collections.Generic;
namespace ToDoList.Helper
{
    public class CustomAdapter : BaseAdapter
    {
        private MainActivity mainActivity;
        private List<string> taskList;
        private DbHelper dbHelper;
        public CustomAdapter(MainActivity mainActivity, List<string> taskList, DbHelper dbHelper)
        {
            this.mainActivity = mainActivity;
            this.taskList = taskList;
            this.dbHelper = dbHelper;
        }
        public override int Count { get { return taskList.Count; } }
        public override Java.Lang.Object GetItem(int position)
        {
            return position;
        }
        public override long GetItemId(int position)
        {
            return position;
        }
        public override View GetView(int position, View convertView, ViewGroup parent)
        {
            LayoutInflater inflater = (LayoutInflater)mainActivity.GetSystemService(Context.LayoutInflaterService);
            View view = inflater.Inflate(Resource.Layout.row, null);
            TextView txtTask = view.FindViewById<TextView>(Resource.Id.task_title);
            Button btnDelete = view.FindViewById<Button>(Resource.Id.btnDelete);
            txtTask.Text = taskList[position];
            btnDelete.Click += delegate
            {
                string task = taskList[position];
                dbHelper.deleteTask(task);
                mainActivity.LoadTaskList(); // Reload Data
            };
            return view;
        }
    }
}

Step 8 - Main Activity Class



Now, go to Solution Explorer-> Project Name-> MainActivity and add the following code with appropriate namespaces.



(FileName: MainActivity)



C# Code

using Android.App;
using Android.Widget;
using Android.OS;
using Android.Support.V7.App;
using Android.Views;
using Android.Content;
using System;
using ToDoList.Helper;
using System.Collections.Generic;
namespace ToDoList
{
    [Activity(Label = "ToDoList", MainLauncher = true , Theme ="@style/Theme.AppCompat.Light")]
    public class MainActivity : AppCompatActivity
    {
        EditText edtTask;
        DbHelper dbHelper;
        CustomAdapter adapter;
        ListView lstTask;
        public override bool OnCreateOptionsMenu(IMenu menu)
        {
            MenuInflater.Inflate(Resource.Menu.menu_item, menu);
            return base.OnCreateOptionsMenu(menu);
        }
        public override bool OnOptionsItemSelected(IMenuItem item)
        {
            switch (item.ItemId)
            {
                case Resource.Id.action_add:
                    edtTask = new EditText(this);
                    Android.Support.V7.App.AlertDialog alertDialog = new Android.Support.V7.App.AlertDialog.Builder(this)
                        .SetTitle("Add New Task")
                        .SetMessage("What do you want to do next?")
                        .SetView(edtTask)
                        .SetPositiveButton("Add", OkAction)
                        .SetNegativeButton("Cancel", CancelAction)
                        .Create();
                    alertDialog.Show();
                    return true;
            }
            return base.OnOptionsItemSelected(item);
        }
        private void CancelAction(object sender, DialogClickEventArgs e)
        {
        }
        private void OkAction(object sender, DialogClickEventArgs e)
        {
            string task = edtTask.Text;
            dbHelper.InsertNewTask(task);
            LoadTaskList();
        }
        public void LoadTaskList()
        {
            List<string> taskList = dbHelper.getTaskList();
            adapter = new CustomAdapter(this, taskList, dbHelper);
            lstTask.Adapter = adapter;
        }
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);
            // Set our view from the "main" layout resource
            SetContentView(Resource.Layout.Main);
            dbHelper = new DbHelper(this);
            lstTask = FindViewById<ListView>(Resource.Id.lstTask);
            //Load Data
            LoadTaskList();
        }
    }
}

Output

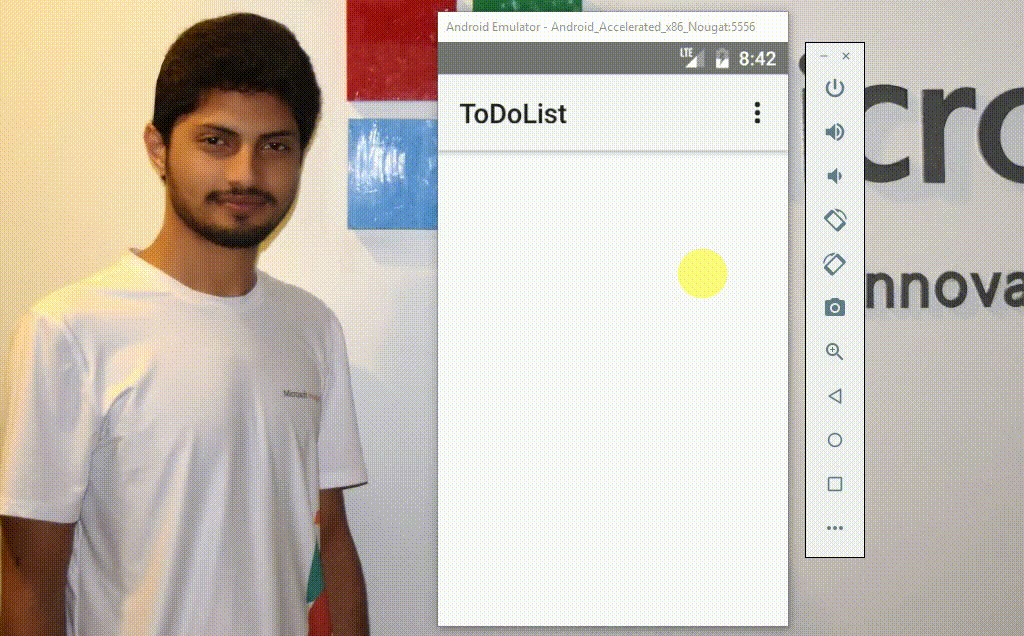

After a few seconds, the app will start running on your Android Emulator. You will see that your app is working successfully.







Summary



This was the process of creating a To Do List app in Xamarin.Android, using Visual Studio. Please share your comments and feedback.
