Xamarin.Android - Working With Firebase Database - Part Two

Introduction

In this part, I will be completing the remaining process of Firebase Database.

Refer to part one.
Step 1

Add a new XML file. For that, go to Solution Explorer-> Project Name-> Resources-> Values-> Right-click to add a new item, select XML, and give it a name such as styles.xml. Open this XML file and add the following code.

(Folder Name: values, File Name: styles.xml)

XML Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <resources>
  3.   <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
  4.     <item name="colorPrimary">@color/colorPrimary</item>
  5.     <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
  6.     <item name="colorAccent">@color/colorAccent</item>
  7.   </style>
  8.   <style name="CircularProgress" parent="Theme.AppCompat.Light">
  9.     <item name="colorAccent">@color/circularColor</item>
  10.   </style>
  11. </resources>
Step 2

Similarly, add a new XML file - colors.xml and add the following code.

(Folder Name: values, File Name: colors.xml)

XML Code
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <resources>
  3.    <color name="colorPrimary">#009688</color>
  4.    <color name="colorPrimaryDark">#00695C</color>
  5.    <color name="colorAccent">#64FFDA</color>
  6.    <color name="circularColor">#9F489B</color>
  7. </resources>

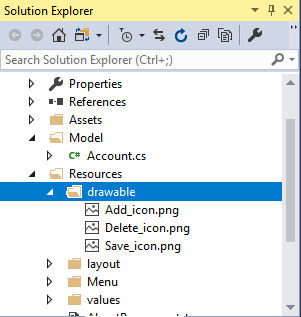

Step 3 - Create Menu

Open Solution Explorer-> Project Name-> Resources-> Right-click to add a new folder with the name Menu. Right-click to Menu folder to add a new XML file name as, menu_main. Open this main XML file and add the following code.

(File Name: menu_main , Folder Name: Menu)
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <menu xmlns:android="http://schemas.android.com/apk/res/android"
  3.       xmlns:app="http://schemas.android.com/apk/res-auto">
  4.   <item android:id="@+id/menu_add"
  5.         android:title="Add"
  6.         android:icon="@drawable/Add_icon"
  7.         app:showAsAction="always"/>
  8.   <item android:id="@+id/menu_save"
  9.         android:title="Save"
  10.         android:icon="@drawable/Save_icon"
  11.         app:showAsAction="always"/>
  12.   <item android:id="@+id/menu_delete"
  13.         android:title="Delete"
  14.         android:icon="@drawable/Delete_icon"
  15.         app:showAsAction="always"/>
  16. </menu>
Step 4 - Writing Account Class

Before you go further, you need to write your Account class with all the getter and setter methods. For this, go to Solution Explorer-> Project Name and right-click. Select Add -> New Item-> Class. Give it a name like Account.cs and write the following code.

(File Name: Account.cs)

C# Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using Android.App;
  6. using Android.Content;
  7. using Android.OS;
  8. using Android.Runtime;
  9. using Android.Views;
  10. using Android.Widget;
  11. namespace FirebaseDatabase.Model
  12. {
  13.     public class Account
  14.     {
  15.         public string uid { get; set; }
  16.         public string name { get; set; }
  17.         public string email { get; set; }
  18.     }
  19. }
Step 5 - Add Layout For List Item

Next, add a new Layout by going to Solution Explorer-> Project Name-> Resources-> Layout. Right-click to add a new item, select Layout, give it a name as list_Item.axml. Open this layout file and add the following code.

(Folder Name: Layout , File Name: list_Item.axml)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent">
  6.     <TextView
  7.         android:id="@+id/list_name"
  8.         android:text="User"
  9.         android:textSize="30sp"
  10.         android:textStyle="bold"
  11.         android:layout_width="wrap_content"
  12.         android:layout_height="wrap_content" />
  13.     <TextView
  14.         android:id="@+id/list_email"
  15.         android:text="Email"
  16.         android:textSize="20sp"
  17.         android:textStyle="italic"
  18.         android:layout_width="wrap_content"
  19.         android:layout_height="wrap_content" />
  20. </LinearLayout>
Step 5 - Writing List View Adapter Class

We need to write our own class to make a custom adapter inherited from the base adapter. Go to Solution Explorer-> Project name and right-click. Select Add -> New Item-> Class. Give it a name as ListViewAdapter.cs and write the following code.

(File Name: ListViewAdapter.cs)

C# Code
  1. using Android.App;
  2. using Android.Content;
  3. using Android.Views;
  4. using Android.Widget;
  5. using FirebaseDatabase.Model;
  6. using System.Collections.Generic;
  7. namespace FirebaseDatabase
  8. {
  9.     public class ListViewAdapter : BaseAdapter
  10.     {
  11.         Activity activity;
  12.         List<Account> lstAccounts;
  13.         LayoutInflater inflater;
  14.         public ListViewAdapter(Activity activity, List<Account> lstAccounts)
  15.         {
  16.             this.activity = activity;
  17.             this.lstAccounts = lstAccounts;
  18.         }
  19.         public override int Count
  20.         {
  21.             get { return lstAccounts.Count; }
  22.         }
  23.         public override Java.Lang.Object GetItem(int position)
  24.         {
  25.             return position;
  26.         }
  27.         public override long GetItemId(int position)
  28.         {
  29.             return position;
  30.         }
  31.         public override View GetView(int position, View convertView, ViewGroup parent)
  32.         {
  33.             inflater = (LayoutInflater)activity.BaseContext.GetSystemService(Context.LayoutInflaterService);
  34.             View itemView = inflater.Inflate(Resource.Layout.list_Item, null);
  35.             var txtuser = itemView.FindViewById<TextView>(Resource.Id.list_name);
  36.             var txtemail = itemView.FindViewById<TextView>(Resource.Id.list_email);
  37.             if(lstAccounts.Count > 0)
  38.             {
  39.                 txtuser.Text = lstAccounts[position].name;
  40.                 txtemail.Text = lstAccounts[position].email;
  41.             }
  42.             return itemView;
  43.         }
  44.     }
  45. }

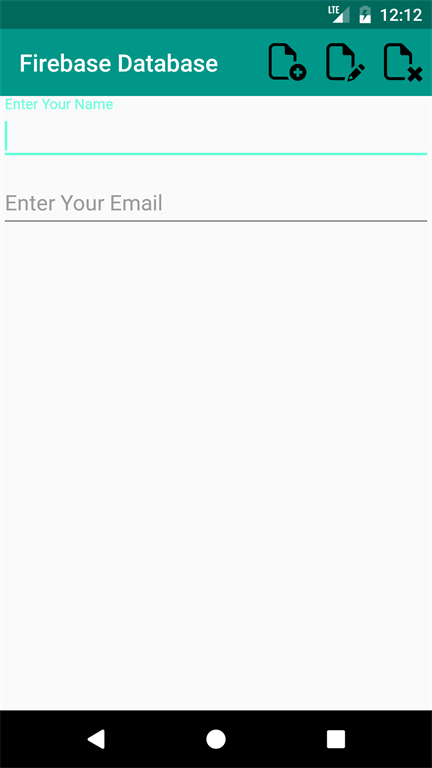

Step 6 - Main Layout

Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml. Open this main layout file and add the following code.

(File Name: Main.axml , Folder Name: Layout)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.                 xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent">
  6.   <android.support.v7.widget.Toolbar
  7.     android:id="@+id/toolbar"
  8.     android:minHeight="?attr/actionBarSize"
  9.     android:layout_width="match_parent"
  10.     android:layout_height="wrap_content"
  11.     android:background="?attr/colorPrimary"
  12.     app:titleTextColor="@android:color/white"/>
  13.   <android.support.design.widget.TextInputLayout
  14.     android:layout_below="@+id/toolbar"
  15.     android:id="@+id/txtName"
  16.     android:layout_width="match_parent"
  17.     android:layout_height="wrap_content">
  18.     <EditText
  19.       android:id="@+id/name"
  20.       android:hint="Enter Your Name"
  21.       android:inputType="textCapWords"
  22.       android:maxLines="1"
  23.       android:layout_width="match_parent"
  24.       android:layout_height="wrap_content"/>
  25.   </android.support.design.widget.TextInputLayout>
  26.   <android.support.design.widget.TextInputLayout
  27.     android:layout_below="@+id/txtName"
  28.     android:id="@+id/txtEmail"
  29.     android:layout_width="match_parent"
  30.     android:layout_height="wrap_content">
  31.     <EditText
  32.       android:id="@+id/email"
  33.       android:hint="Enter Your Email"
  34.       android:inputType="textCapWords"
  35.       android:maxLines="1"
  36.       android:layout_width="match_parent"
  37.       android:layout_height="wrap_content"/>
  38.   </android.support.design.widget.TextInputLayout>
  39.   <ListView
  40.     android:id="@+id/list_data"
  41.     android:layout_below="@+id/txtEmail"
  42.     android:layout_width="match_parent"
  43.     android:layout_height="wrap_content"/>
  44.   <ProgressBar
  45.     android:id="@+id/circularProgress"
  46.     android:visibility="invisible"
  47.     android:layout_centerInParent="true"
  48.     android:theme="@style/CircularProgress"
  49.     android:layout_width="match_parent"
  50.     android:layout_height="wrap_content"
  51.     style="@style/Widget.AppCompat.ProgressBar"/>
  52. </RelativeLayout>

Step 7 - Main Activity Class

Note - Must change your Firebase Database URL in Main activity class before building the project.

Now, go to Solution Explorer-> Project Name-> MainActivity and add the following code to main activity with appropriate namespaces.

(FileName: MainActivity)

C# Code
  1. using Android.App;
  2. using Android.Widget;
  3. using Android.OS;
  4. using Android.Support.V7.App;
  5. using Android.Views;
  6. using System.Collections.Generic;
  7. using FirebaseDatabase.Model;
  8. using System;
  9. using System.Threading.Tasks;
  10. using Firebase.Xamarin.Database;
  11. using Firebase.Xamarin.Database.Query;
  12. namespace FirebaseDatabase
  13. {
  14.     [Activity(Label = "FirebaseDatabase", MainLauncher = true , Theme ="@style/AppTheme")]
  15.     public class MainActivity : AppCompatActivity
  16.     {
  17.         private EditText input_name, input_email;
  18.         private ListView list_data;
  19.         private ProgressBar circular_progress;
  20.         private List<Account> list_users = new List<Account>();
  21.         private ListViewAdapter adapter;
  22.         private Account selectedAccount;
  23.         private const string FirebaseURL = "https://fir-database-33529.firebaseio.com/"; //Firebase Database URL
  24.         protected override async void OnCreate(Bundle savedInstanceState)
  25.         {
  26.             base.OnCreate(savedInstanceState);
  27.             // Set our view from the "main" layout resource
  28.             SetContentView(Resource.Layout.Main);
  29.             //Add Toolbar
  30.             Android.Support.V7.Widget.Toolbar toolbar = FindViewById<Android.Support.V7.Widget.Toolbar>(Resource.Id.toolbar);
  31.             toolbar.Title = "Firebase Database";
  32.             SetSupportActionBar(toolbar);
  33.             //View
  34.             circular_progress = FindViewById<ProgressBar>(Resource.Id.circularProgress);
  35.             input_name = FindViewById<EditText>(Resource.Id.name);
  36.             input_email = FindViewById<EditText>(Resource.Id.email);
  37.             list_data = FindViewById<ListView>(Resource.Id.list_data);
  38.             list_data.ItemClick += (s, e) =>
  39.             {
  40.                 Account account = list_users[e.Position];
  41.                 selectedAccount = account;
  42.                 input_name.Text = account.name;
  43.                 input_email.Text = account.email;
  44.             };
  45.             await LoadData();
  46.         }
  47.         private async Task LoadData()
  48.         {
  49.             circular_progress.Visibility = ViewStates.Visible;
  50.             list_data.Visibility = ViewStates.Invisible;
  51.             var firebase =new FirebaseClient(FirebaseURL);
  52.             var items = await firebase
  53.                 .Child("users")
  54.                 .OnceAsync<Account>();
  55.             list_users.Clear();
  56.             adapter = null;
  57.             foreach (var item in items)
  58.             {
  59.                 Account account = new Account();
  60.                 account.uid = item.Key;
  61.                 account.name = item.Object.name;
  62.                 account.email = item.Object.email;
  63.                 list_users.Add(account);
  64.             }
  65.             adapter = new ListViewAdapter(this, list_users);
  66.             adapter.NotifyDataSetChanged();
  67.             list_data.Adapter = adapter;
  68.             circular_progress.Visibility = ViewStates.Invisible;
  69.             list_data.Visibility = ViewStates.Visible;
  70.         }
  71.         public override bool OnCreateOptionsMenu(IMenu menu)
  72.         {
  73.             MenuInflater.Inflate(Resource.Menu.menu_main, menu);
  74.             return base.OnCreateOptionsMenu(menu);
  75.         }
  76.         public override bool OnOptionsItemSelected(IMenuItem item)
  77.         {
  78.             int id = item.ItemId;
  79.             if(id == Resource.Id.menu_add)
  80.             {
  81.                 CreateUser();
  82.             }
  83.             else
  84.             if(id == Resource.Id.menu_save) //Update
  85.             {
  86.                 UpdateUser(selectedAccount.uid, input_name.Text, input_email.Text);
  87.             }
  88.             else
  89.             if (id == Resource.Id.menu_delete) //Delete
  90.             {
  91.                 DeleteUser(selectedAccount.uid);
  92.             }
  93.             return base.OnOptionsItemSelected(item);
  94.         }
  95.         private async void DeleteUser(string uid)
  96.         {
  97.             var firebase = new FirebaseClient(FirebaseURL);
  98.             await firebase.Child("users").Child(uid).DeleteAsync();
  99.             await LoadData();
  100.         }
  101.         private async void UpdateUser(string uid, string name, string email)
  102.         {
  103.             var firebase = new FirebaseClient(FirebaseURL);
  104.             await firebase.Child("users").Child(uid).Child("name").PutAsync(name);
  105.             await firebase.Child("users").Child(uid).Child("email").PutAsync(email);
  106.             await LoadData();
  107.         }
  108.         private async void CreateUser()
  109.         {
  110.             Account user = new Account();
  111.             user.uid = String.Empty;
  112.             user.name = input_name.Text;
  113.             user.email = input_email.Text;
  114.             var firebase = new FirebaseClient(FirebaseURL);
  115.             //Add Item
  116.             var item = await firebase.Child("users").PostAsync<Account>(user);
  117.             await LoadData();
  118.         }
  119.     }
  120. }
Step 8 - Add Icons into Drawable

Open Solution Explorer -> Project Name -> Resources-> Drawable. Paste "Add, Save, Delete"  icons into the drawable folder.

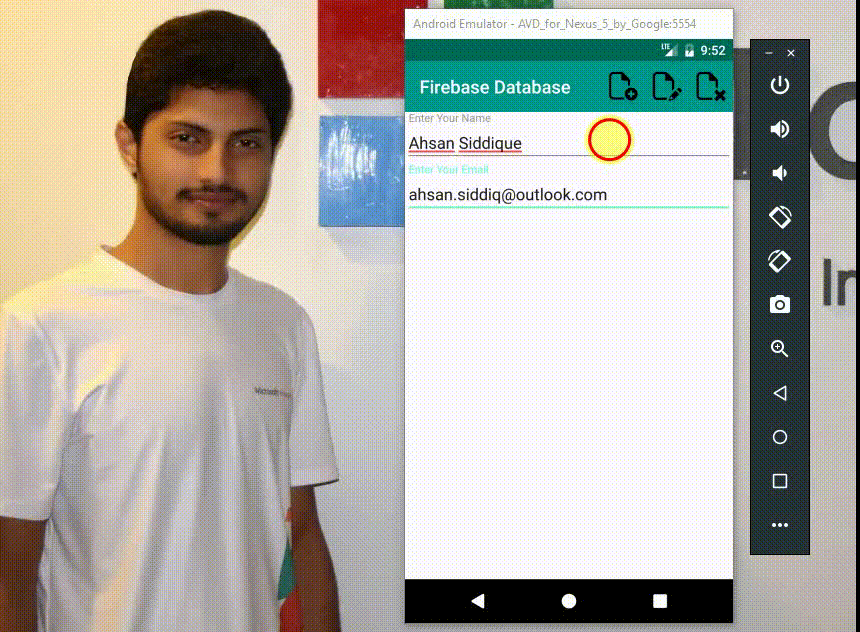

Output



Please share your comments and feedback.

Up Next
    Ebook Download
    View all
    Learn
    View all
