Xamarin.Android - List View Using SQL Server Database

Let’s start,

Prior to starting an Android Application, we need to Create SQL server Database Using WEB API. Refer to this one,

Step 1

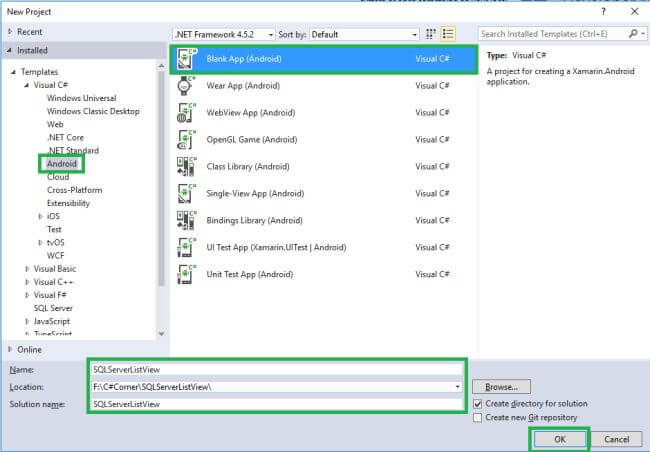

Open Visual Studio->New Project->Templates->Visual C#->Android->Blank App

Select Blank App. Then give Project Name and Project Location.

Step 2

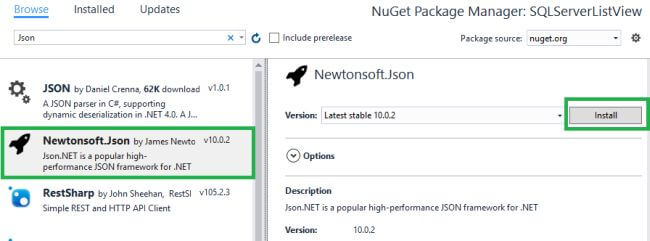

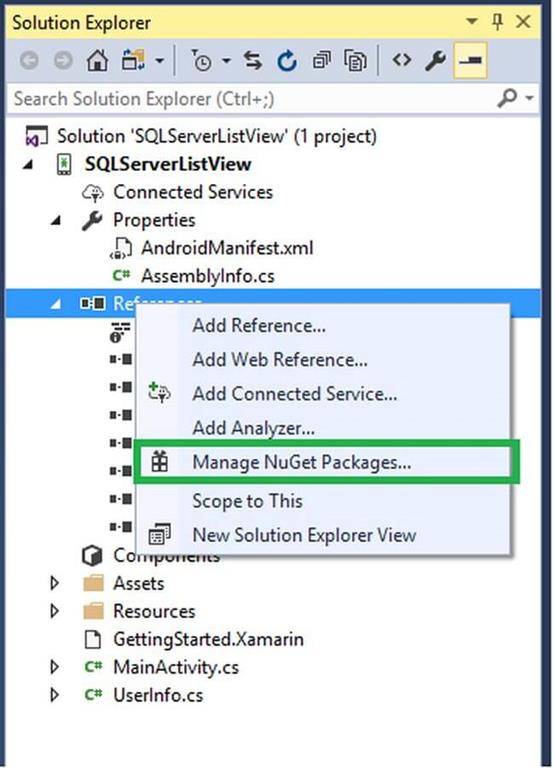

Go to Solution Explorer-> Project Name-> References then Right Click to Manage Nuget Packages then open new Dialog box. This dialog box to search the Json then Install theNewtonsoft.Json Packages.

Step 3

Next to Open Solution Explorer-> Project Name->Resources->layout->Main.axmlClick Open Design View.

Step 4

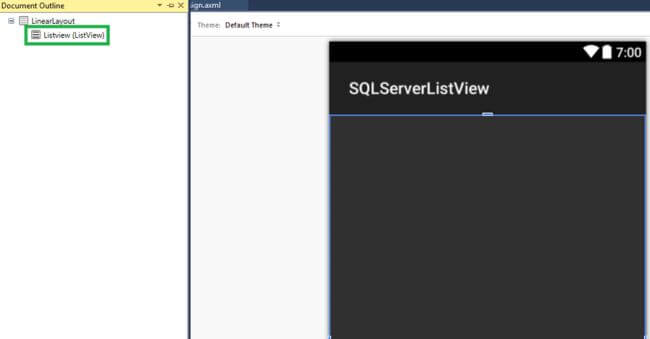

Then Go to Toolbar Select ListViewDrag and Drop in Design Page then give android:id="@+id/ListView".

XMLCode

  1. <?xmlversion="1.0"encoding="utf-8"?>
  2. <LinearLayout
  3.     xmlns:android="http://schemas.android.com/apk/res/android"
  4.    android:orientation="vertical"
  5.    android:layout_width="match_parent"
  6.    android:layout_height="match_parent"
  7.    android:minWidth="25px"
  8.    android:minHeight="25px">
  9.     <ListView
  10.       android:minWidth="25px"
  11.       android:minHeight="25px"
  12.       android:layout_width="match_parent"
  13.       android:layout_height="match_parent"
  14.       android:id="@+id/Listview" />
  15. </LinearLayout>

Step 5

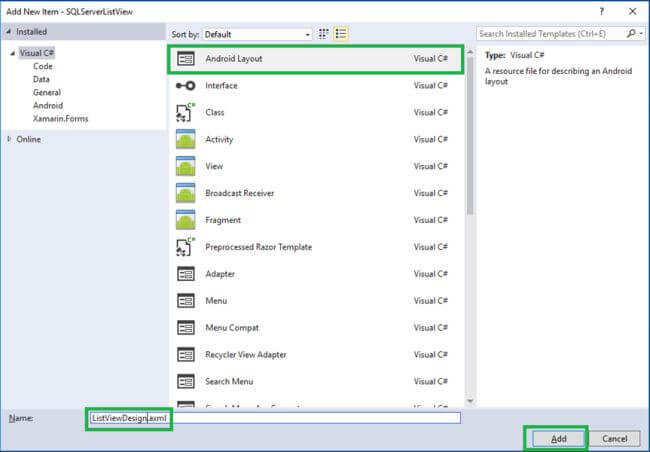

Next to create New Layout for List View Design Adapter Page, go to Solution Explorer-> Project Name->Resources->layout then Right Click to Add->New Item then open new Dialog box. Then select Android Layout then give name for ListViewDesign.axml

Step 6

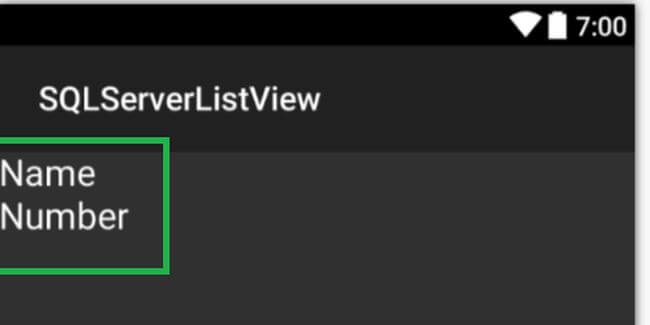

Then open Solution Explorer-> Project Name->Resources->Layout->ListViewDesign.axml click to open Design View then give the  following code, here we create two textviews, one for Name ,another one for Contact Number.

XML Code

  1. <?xmlversion="1.0"encoding="utf-8"?>
  2. <LinearLayout
  3.     xmlns:android="http://schemas.android.com/apk/res/android"
  4.    android:orientation="vertical"
  5.    android:layout_width="match_parent"
  6.    android:layout_height="match_parent">
  7.     <TextView
  8.       android:text="Name"
  9.       android:textAppearance="?android:attr/textAppearanceLarge"
  10.       android:layout_width="match_parent"
  11.       android:layout_height="wrap_content"
  12.       android:id="@+id/TxtName" />
  13.     <TextView
  14.       android:textAppearance="?android:attr/textAppearanceLarge"
  15.       android:layout_width="match_parent"
  16.       android:layout_height="wrap_content"
  17.       android:id="@+id/TxtNumber"
  18.       android:text="Number" />
  19. </LinearLayout>

Step 7

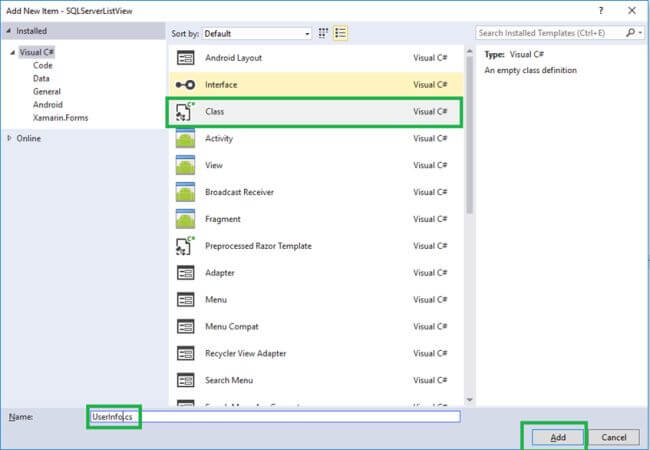

We need to assign the SQL List Values in any Class so here create new class. Go to Solution Explorer-> Project Name then Right Click to Add->New Item then open new Dialog box. Then select class File give name for UserInfo.cs

Step 8

Then open UserInfo.cs give following code.

  1. public class UserInfo {
  2.     publicstring firstname {
  3.         get;
  4.         set;
  5.     }
  6.     publicstring contact_no {
  7.         get;
  8.         set;
  9.     }
  10. }

Step 9

Afterwardsto open Solution Explorer-> Project Name->MainActivity.cs then Add below Namespaces.

  1. using System.Collections.Generic;
  2. using Newtonsoft.Json;
  3. using System.Net.Http.Headers;
  4. using System.Net.Http;

Step 10

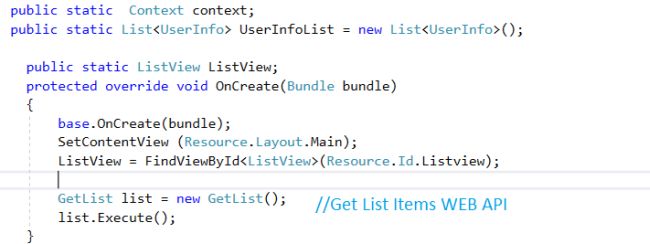

Next to Open Solution Explorer-> Project Name->MainAtivity.cs,Open Oncreate()then implement following code

C# Code
  1. public static Context context;
  2. public static List < UserInfo > UserInfoList = newList < UserInfo > ();
  3. public static ListView ListView;
  4. protected override void OnCreate(Bundle bundle) {
  5.     base.OnCreate(bundle);
  6.     SetContentView(Resource.Layout.Main);
  7.     ListView = FindViewById < ListView > (Resource.Id.Listview);
  8.     GetList list = newGetList();
  9.     list.Execute();
  10. }

Step 11

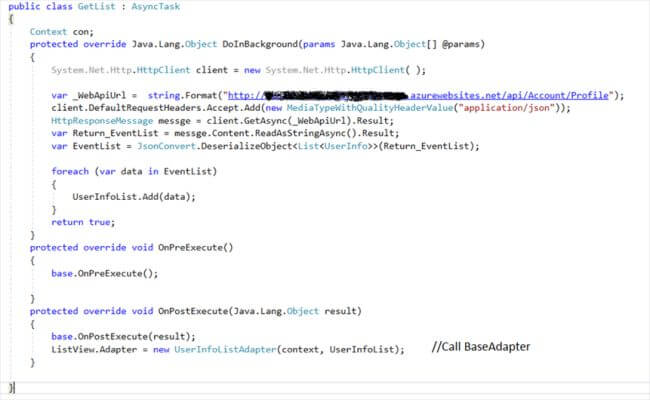

Below Oncreate() declare the AsyncTask for SQL Server Data Retrieve. Here only we call and assign the values for Base Adapter .



C# Code
  1. public class GetList: AsyncTask {
  2.     Context con;
  3.     protected override Java.Lang.Object DoInBackground(params Java.Lang.Object[] @params) {
  4.         System.Net.Http.HttpClient client = new System.Net.Http.HttpClient();
  5.         var _WebApiUrl = string.Format("https://URL/api/Account/Profile");
  6.         client.DefaultRequestHeaders.Accept.Add(newMediaTypeWithQualityHeaderValue("application/json"));
  7.         HttpResponseMessage messge = client.GetAsync(_WebApiUrl).Result;
  8.         var Return_EventList = messge.Content.ReadAsStringAsync().Result;
  9.         var EventList = JsonConvert.DeserializeObject < List < UserInfo >> (Return_EventList);
  10.         foreach(var data in EventList) {
  11.             UserInfoList.Add(data);
  12.         }
  13.         return true;
  14.     }
  15.     protected override void OnPreExecute() {
  16.         base.OnPreExecute();
  17.     }
  18.     protected override void OnPostExecute(Java.Lang.Object result) {
  19.         base.OnPostExecute(result);
  20.         ListView.Adapter = newUserInfoListAdapter(context, UserInfoList);
  21.     }
  22. }

Step 12

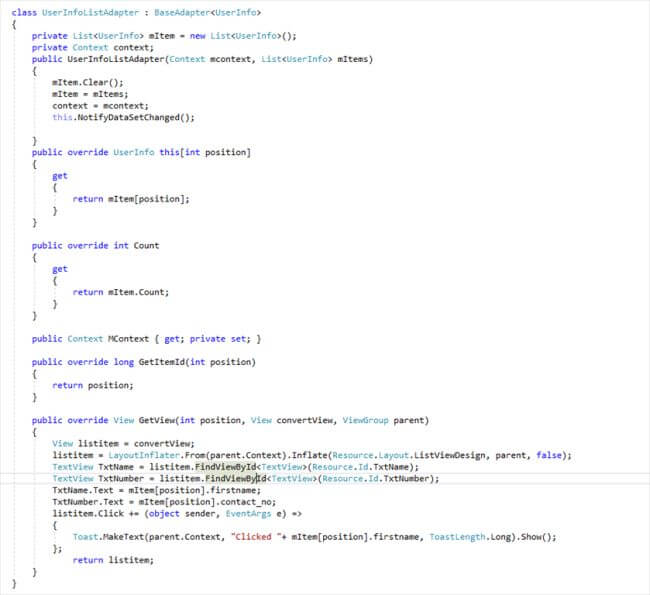

Next to create new BaseAdapter class. Declare all variables of ListViewDesign.axml here



C# Code
  1. class UserInfoListAdapter: BaseAdapter < UserInfo > {
  2.     private List < UserInfo > mItem = newList < UserInfo > ();
  3.     private Context context;
  4.     public UserInfoListAdapter(Context mcontext, List < UserInfo > mItems) {
  5.         mItem.Clear();
  6.         mItem = mItems;
  7.         context = mcontext;
  8.         this.NotifyDataSetChanged();
  9.     }
  10.     public override UserInfothis[int position] {
  11.         get {
  12.             return mItem[position];
  13.         }
  14.     }
  15.     public override int Count {
  16.         get {
  17.             return mItem.Count;
  18.         }
  19.     }
  20.     public Context MContext {
  21.         get;
  22.         privateset;
  23.     }
  24.     public override long GetItemId(int position) {
  25.         return position;
  26.     }
  27.     public override View GetView(int position, View convertView, ViewGroup parent) {
  28.         View listitem = convertView;
  29.         listitem = LayoutInflater.From(parent.Context).Inflate(Resource.Layout.ListViewDesign, parent, false);
  30.         TextView TxtName = listitem.FindViewById < TextView > (Resource.Id.TxtName);
  31.         TextView TxtNumber = listitem.FindViewById < TextView > (Resource.Id.TxtNumber);
  32.         TxtName.Text = mItem[position].firstname;
  33.         TxtNumber.Text = mItem[position].contact_no;
  34.         listitem.Click += (object sender, EventArgs e) => {
  35.             Toast.MakeText(parent.Context, "Clicked " + mItem[position].firstname, ToastLength.Long).Show();
  36.         };
  37.         return listitem;
  38.     }
  39. }

Step 13

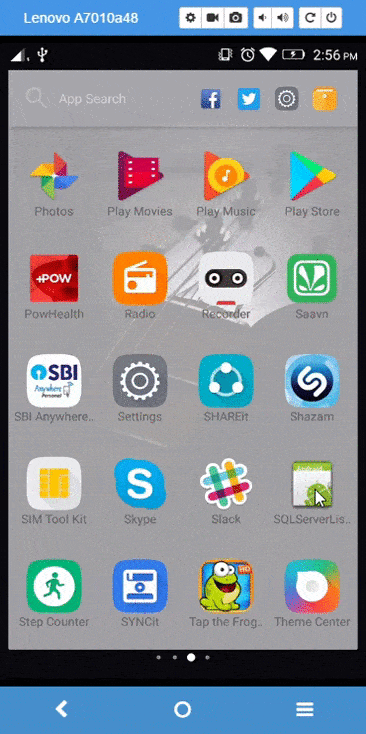

Press F5 or Build and Run the Application

Finally, you have successfully created a Xamarin Android List View using SQL Server.
