Xamarin.Forms - Create MVVM Data Binding Application

Introduction

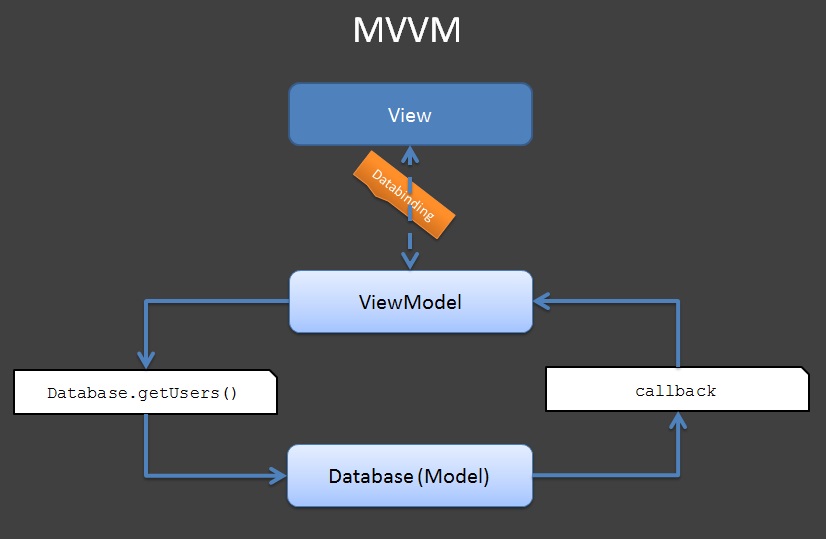

This article demonstrates how to create MVVM Data Binding Application using C# and XML in Xamarin.Forms.



Let’s start.

Step 1

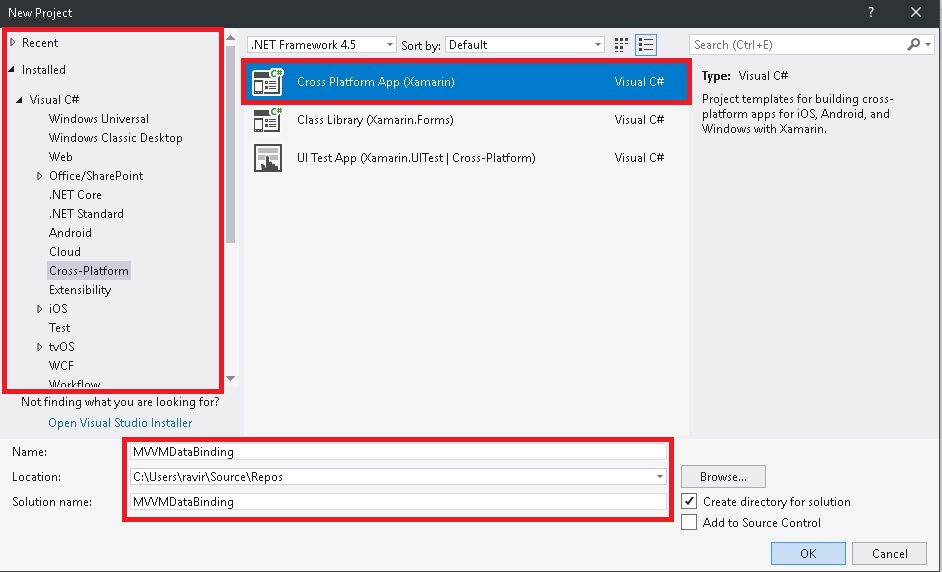

Open Visual Studio. Go to New Project >> Installed >> Visual C# >> Cross-Platforms >> Cross-Platform App (Xamarin).

Select Cross-Platform App, then give project name and project location.



Step 2

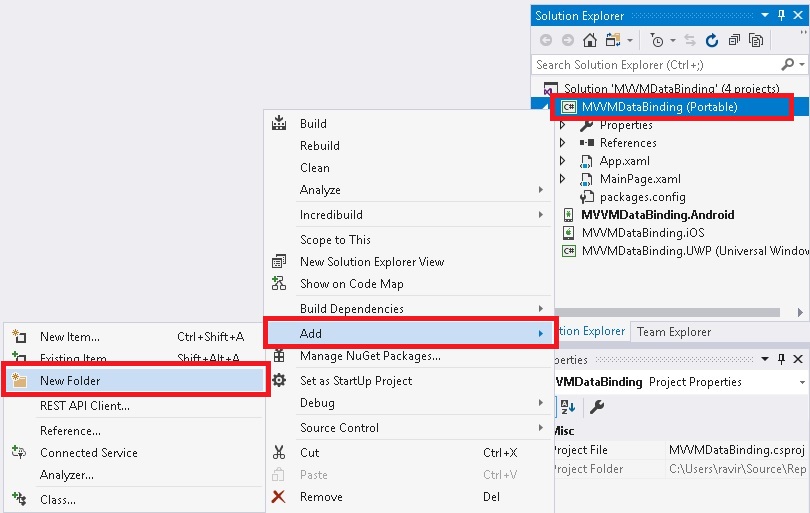

Next, go to Solution Explorer >> Project Name (Portable), then right-click to Add >> New Folder. It opens a new dialog box; give the name to your Model.

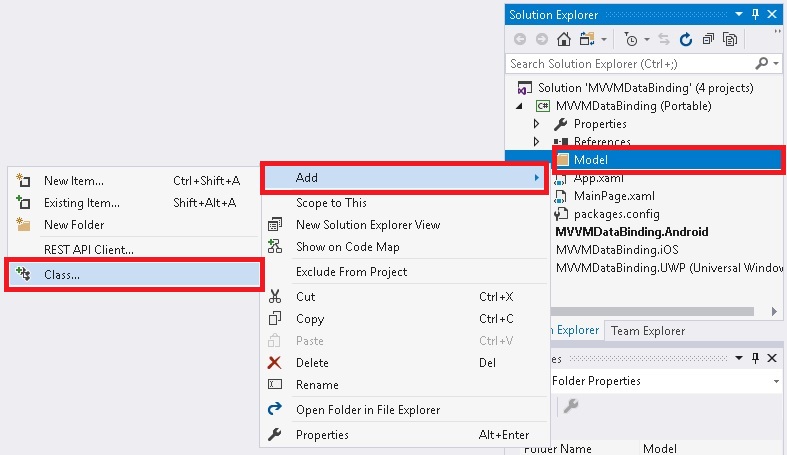

Go to Project Name >> Model. Right-click to Add >> Class. This opens a new dialog box. Give a name to TaskModel.cs.



Step 3

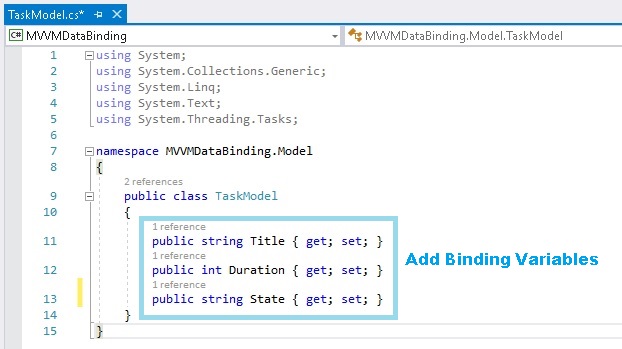

Next, open Solution Explorer >> Project Name >> Model >> TaskModel.cs. Click to open C# code. Then, give the following code.





C# Code

namespace MVVMDataBinding.Model
{
    public class TaskModel
    {
        public string Title { get; set; }
        public int Duration { get; set; }
        public string State { get; set; }
    }
}

 Step 4

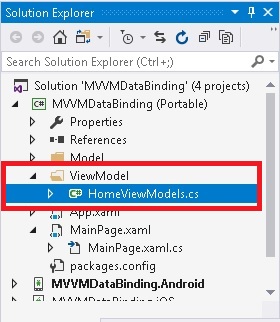

Similarly, add a new folder under Class page, then give the name for ViewModel and HomeViewModels.cs.



Step 5

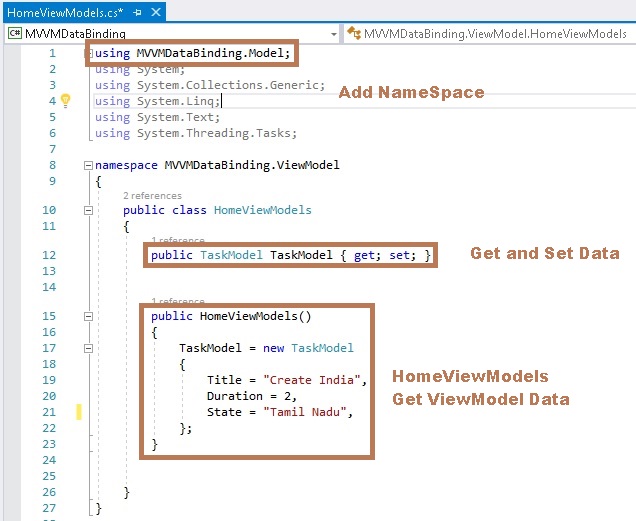

Next, open Solution Explorer >> Project Name >> ViewModel >> HomeViewModel then click open C# code. Give the following code.





C# Code

using MVVMDataBinding.Model;

namespace MVVMDataBinding.ViewModel
{
public class HomeViewModels
    {
        public TaskModel TaskModel { get; set; }
        public HomeViewModels()
        {
            TaskModel = new TaskModel
            {
                Title = "Create India",
                Duration = 2,
                State = "Tamil Nadu",
            };
        }
    }
}

 Step 6

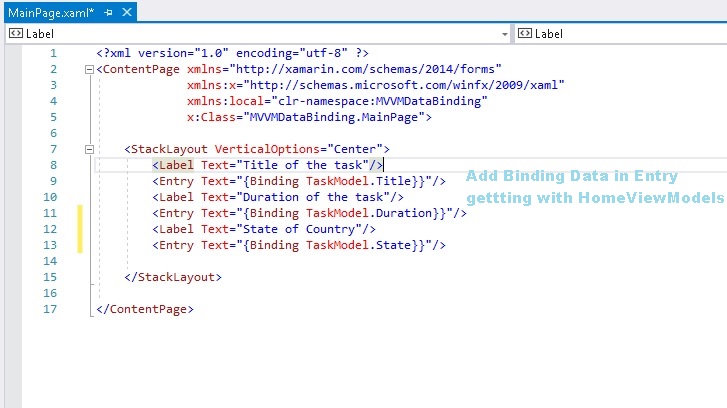

In this step, go to MainPage.xaml and open Design View. Paste the following code.





XML Code

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:MVVMDataBinding"
             x:Class="MVVMDataBinding.MainPage">

    <StackLayout VerticalOptions="Center">
        <Label Text="Title of the task"/>
        <Entry Text="{Binding TaskModel.Title}}"/>
        <Label Text="Duration of the task"/>
        <Entry Text="{Binding TaskModel.Duration}}"/>
        <Label Text="State of Country"/>
        <Entry Text="{Binding TaskModel.State}}"/>
     </StackLayout>
</ContentPage>

 Step 7

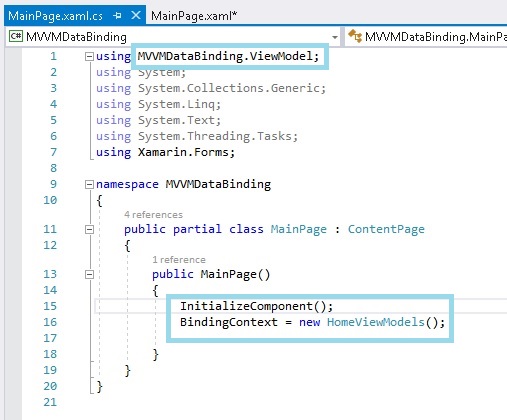

Next, open Mainpage.axml.cs Page, then add namespace MVVMDataBinding.ViewModel, and give the following C# code.





C# Code

using MVVMDataBinding.ViewModel;
using Xamarin.Forms;

namespace MVVMDataBinding
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            BindingContext = new HomeViewModels();
        }
    }
}

 Step 8

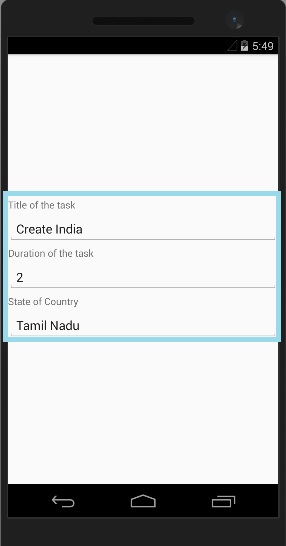

Finally, Debug and Run the app to see a working MVVMDataBindding.



Finally, we have successfully created Xamarin.Forms MVVMDataBinding application.
