Xamarin.Forms - Expandable ListView App

Introduction

This article demonstrates how to create an Expandable ListView of items in Xamarin.Forms application. If the user clicks on a product, that product expands and shows items. Then, the user clicks on the same product twice and it will be hidden.







Let's start.



Step 1

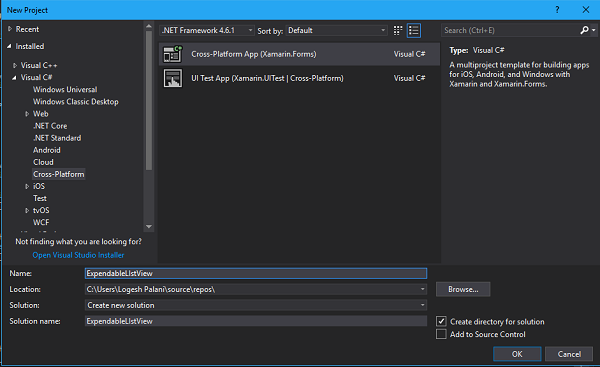

Create a new Xamarin.Forms app by going to File >> New -->> Visual C# >> Cross Platform >> Cross Platform App (Xamarin.Native or Xamarin.Forms), give the application name, and press OK.



(Project Name: ExpendableListView)







Step 2

Open Solution Explorer >> ExpendableLIstView (PCL) >> right click and select "New Item".In the popup window, select Cross Platform >>Class.

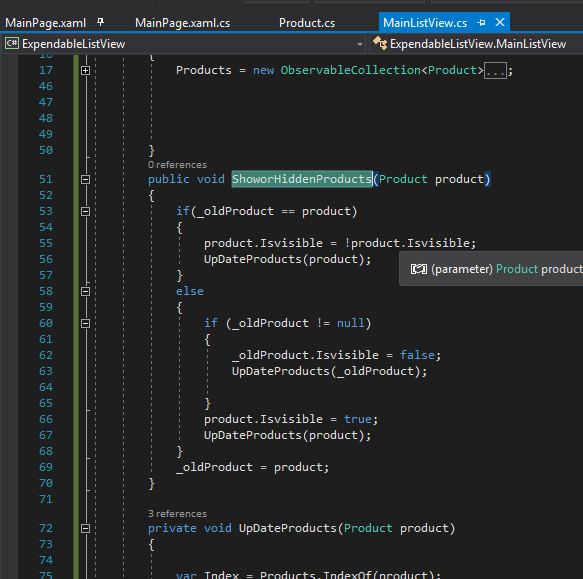

This way, you can add a new class. Create a new Class named MainListView.cs, double-click to get into its design view, and insert the code given below.



CS code

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Text;

namespace ExpendableListView
{
    public class MainListView
    {
        private Product _oldProduct;
        public ObservableCollection<Product> Products { get; set; }



        public MainListView()
        {
            Products = new ObservableCollection<Product>
            {
                new Product
                {
                    Title = "Microsoft Surface",

                    Isvisible =false
                },
                new Product
                {
                    Title = "Microsoft Lumia 535",
                    Isvisible = false
                },
                new Product
                {
                    Title = "Microsoft 650",
                    Isvisible = false
                },
                new Product
                {
                    Title = "Lenovo Surface",
                    Isvisible =  false
                },
                new Product
                {
                    Title = "Microsoft edge",
                    Isvisible = false
                }
            };




        }
        public void ShoworHiddenProducts(Product product)
        {
            if(_oldProduct == product)
            {
                product.Isvisible = !product.Isvisible;
                UpDateProducts(product);
            }
            else
            {
                if (_oldProduct != null)
                {
                    _oldProduct.Isvisible = false;
                    UpDateProducts(_oldProduct);

                }
                product.Isvisible = true;
                UpDateProducts(product);
            }
            _oldProduct = product;
        }

        private void UpDateProducts(Product product)
        {

            var Index = Products.IndexOf(product);
            Products.Remove(product);
            Products.Insert(Index, product);

        }
    }
}





Step 3

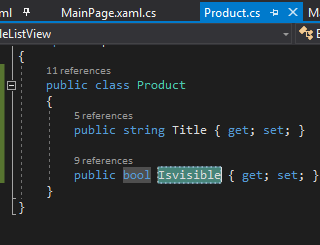

Similarly, create another class named Product.cs and add the following code.



CS code

namespace ExpandableListView
{
    public class Product
    {
        public string Title{ get; set; }

        public bool IsVisible { get; set; }
    }
}





Step 4

Afterwards, open MainPage.Xaml page.For that, go to Solution Explorer >> ExpendableListView(PCL)  >> MainPage.Xaml and click open MainPage page design view.Here is the code.



Xaml code

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:ExpendableListView"
             x:Class="ExpendableListView.MainPage"
             Title ="Expendable ListView "
             BackgroundColor="Bisque">
    <ContentPage.BindingContext>
        <local:MainListView/>
    </ContentPage.BindingContext>

    <ListView Margin="0,80"
              ItemTapped="ListViewItem_Tabbed"
              ItemsSource="{Binding Products}"
              HasUnevenRows="True"
              BackgroundColor="Black">
        <ListView.ItemTemplate>
            <DataTemplate>
                <ViewCell>
                    <StackLayout Padding="20">
                        <Label Text="{Binding Title}"
                               FontSize="25"
                               TextColor="Azure"/>
                        <StackLayout IsVisible="{Binding Isvisible}"
                                     Orientation="Horizontal"
                                     Margin="0,0,80,0">
                            <Button Text="Place Order"
                                    WidthRequest="110"
                                    FontSize="15"
                                    BackgroundColor="Chocolate"
                                    TextColor="White"/>
                            <Button Text="Details"
                                    WidthRequest="110"
                                    FontSize="15"
                                    BackgroundColor="CornflowerBlue"
                                    TextColor="DarkBlue"/>
                            <Button Text="Edit"
                                    WidthRequest="110"
                                    FontSize="15"
                                    BackgroundColor="LightCoral"
                                    TextColor="Maroon"/>
                        </StackLayout>
                    </StackLayout>
                </ViewCell>
            </DataTemplate>
        </ListView.ItemTemplate>
    </ListView>
</ContentPage>





Step 5

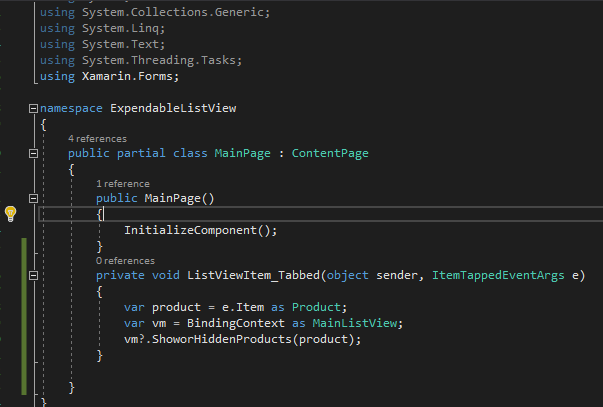

Now, open Solution Explorer >>ExpendableListView(PCL) >>open MainPage.xaml.cs page. Here is the code for this page.



CS code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;

namespace ExpendableListView
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
        }
        private void ListViewItem_Tabbed(object sender, ItemTappedEventArgs e)
        {
            var product = e.Item as Product;
            var vm = BindingContext as MainListView;
            vm?.ShoworHiddenProducts(product);
        }

    }
}





Step 6

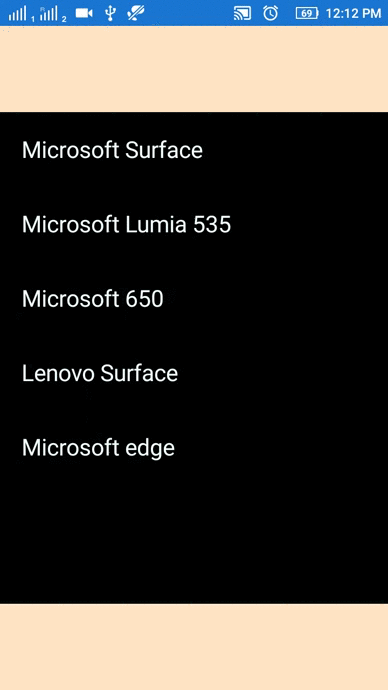

Click "F5" or "Build " to "Run" your application.Running your project, you will have the result like below.





Finally, we have successfully created a Xamarin.Forms Hierarchical Navigation Application.
