Xamarin.Forms - Modal Pages

Introduction

This article demonstrates how to navigate to modal pages. A modal page can be any of the page types (eg.-content page) supported by Xamarin.Forms. To display a modal page, the application will push it onto the navigation stack where it becomes an active page.

Let's start!

Step 1

Click File >> New >> Project >>Visual C# >> Cross-Platform(Xamarin.Forms or Native) >> give project a name and location. Then, click OK.



Step 2

Now, click open Mainpage.xaml and insert the below-given code. For that, go to Solution Explorer >> Modal page (PCL) >> Mainpage.xaml.

Next, insert the toolbar items of ListView to display page names and its clicked events to navigation between the pages.
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:ModalpageApp"
  5.              x:Class="ModalpageApp.MainPage"
  6.              Title="MainPage">
  7.
  8.     <ContentPage.Content>
  9.
  10.         <StackLayout >
  11.
  12.             <ListView x:Name="Listview" ItemSelected="Listview_ItemSelected"/>
  13.
  14.         </StackLayout>
  15.
  16.     </ContentPage.Content>
  17.
  18. </ContentPage>

Step 3

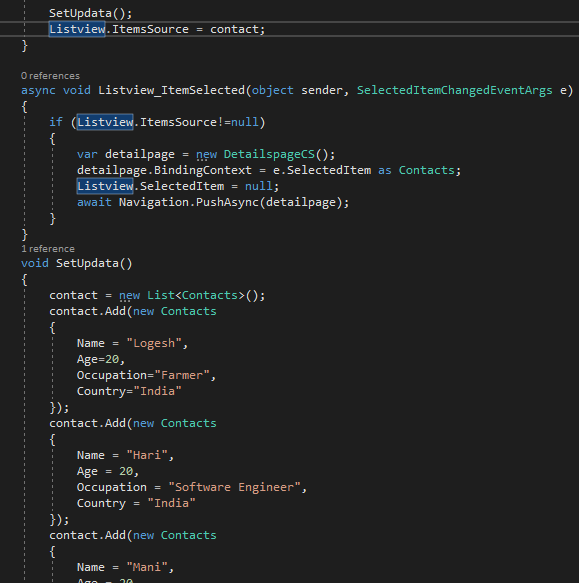

Then, open Solution Explorer >>Modalpages(PCL) >>Mainpage.xaml.cs page and double click to open the design view. Here is the code for this page.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7.
  8. namespace ModalpageApp
  9. {
  10.     public partial class MainPage : ContentPage
  11.     {
  12.         List<Contacts> contact;
  13.         public MainPage()
  14.         {
  15.             InitializeComponent();
  16.
  17.             SetUpdata();
  18.             Listview.ItemsSource = contact;
  19.         }
  20.
  21.         async void Listview_ItemSelected(object sender, SelectedItemChangedEventArgs e)
  22.         {
  23.             if (Listview.ItemsSource!=null)
  24.             {
  25.                 var detailpage = new DetailspageCS();
  26.                 detailpage.BindingContext = e.SelectedItem as Contacts;
  27.                 Listview.SelectedItem = null;
  28.                 await Navigation.PushAsync(detailpage);
  29.             }
  30.         }
  31.         void SetUpdata()
  32.         {
  33.             contact = new List<Contacts>();
  34.             contact.Add(new Contacts
  35.             {
  36.                 Name = "Logesh",
  37.                 Age=20,
  38.                 Occupation="Farmer",
  39.                 Country="India"
  40.             });
  41.             contact.Add(new Contacts
  42.             {
  43.                 Name = "Hari",
  44.                 Age = 20,
  45.                 Occupation = "Software Engineer",
  46.                 Country = "India"
  47.             });
  48.             contact.Add(new Contacts
  49.             {
  50.                 Name = "Mani",
  51.                 Age = 20,
  52.                 Occupation = "Farmer",
  53.                 Country = "India"
  54.             });
  55.             contact.Add(new Contacts
  56.             {
  57.                 Name = "Guna Seker",
  58.                 Age = 20,
  59.                 Occupation = "Farmer",
  60.                 Country = "India"
  61.             });
  62.             contact.Add(new Contacts
  63.             {
  64.                 Name = "Palani",
  65.                 Age = 20,
  66.                 Occupation = "Farmer",
  67.                 Country = "India"
  68.             });
  69.             contact.Add(new Contacts
  70.             {
  71.                 Name = "Laxman",
  72.                 Age = 30,
  73.                 Occupation = "Driver",
  74.                 Country = "India"
  75.             });
  76.         }
  77.     }
  78. }


Step 4

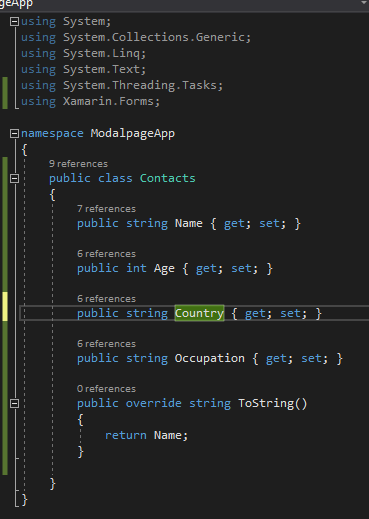

Now, create a class named Contacts.cs. For that, go to Solution Explorer>>Modalpage(PCL)>>right click and select Add>> New Item. In this popup window, select CrossPlatform>>class. Give a name such as Contacts.cs.

After double clicking to open it, insert the code given-below.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7.
  8. namespace ModalpageApp
  9. {
  10.     public class Contacts
  11.     {
  12.         public string Name { getset; }
  13.
  14.         public int Age { getset; }
  15.
  16.         public string Country { getset; }
  17.
  18.         public string Occupation { getset; }
  19.
  20.         public override string ToString()
  21.         {
  22.             return Name;
  23.         }
  24.
  25.     }
  26. }


Step 5

Similarly, create another class named Masterdetails.cs. This page is used when the user clicks on listview items after navigating t a new page to display details.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  7.
  8. namespace ModalpageApp
  9. {
  10.     public class DetailspageCS : ContentPage
  11.     {
  12.       public DetailspageCS()
  13.         {
  14.             var nameLabel = new Label
  15.             {
  16.                 FontSize = Device.GetNamedSize(NamedSize.Medium, typeof(Label)),
  17.                 FontAttributes = FontAttributes.Bold
  18.             };
  19.             nameLabel.SetBinding(Label.TextProperty, "Name");
  20.
  21.             var ageLabel = new Label
  22.             {
  23.                 FontSize = Device.GetNamedSize(NamedSize.Medium, typeof(Label)),
  24.                 FontAttributes = FontAttributes.Bold
  25.             };
  26.             ageLabel.SetBinding(Label.TextProperty, "Age");
  27.
  28.             var occupationLabel = new Label
  29.             {
  30.                 FontSize = Device.GetNamedSize(NamedSize.Medium, typeof(Label)),
  31.                 FontAttributes = FontAttributes.Bold
  32.             };
  33.             occupationLabel.SetBinding(Label.TextProperty, "Occupation");
  34.
  35.             var countryLabel = new Label
  36.             {
  37.                 FontSize = Device.GetNamedSize(NamedSize.Medium, typeof(Label)),
  38.                 FontAttributes = FontAttributes.Bold
  39.             };
  40.             countryLabel.SetBinding(Label.TextProperty, "Country");
  41.
  42.             var dismissButton = new Button { Text = "Dismiss" };
  43.             dismissButton.Clicked += OnDismissButtonClicked;
  44.
  45.             Padding = new Thickness(0, Device.OnPlatform(20, 0, 0), 0, 0);
  46.             Content = new StackLayout
  47.             {
  48.                 HorizontalOptions = LayoutOptions.Center,
  49.                 VerticalOptions = LayoutOptions.Center,
  50.                 Children = {
  51.                     new StackLayout {
  52.                         Orientation = StackOrientation.Horizontal,
  53.                         Children = {
  54.                             new Label {
  55.                                 Text = "Name:",
  56.                                 FontSize = Device.GetNamedSize (NamedSize.Medium, typeof(Label)),
  57.                                 HorizontalOptions = LayoutOptions.FillAndExpand
  58.                             },
  59.                             nameLabel
  60.                         }
  61.                     },
  62.                     new StackLayout {
  63.                         Orientation = StackOrientation.Horizontal,
  64.                         Children = {
  65.                             new Label {
  66.                                 Text = "Age:",
  67.                                 FontSize = Device.GetNamedSize (NamedSize.Medium, typeof(Label)),
  68.                                 HorizontalOptions = LayoutOptions.FillAndExpand
  69.                             },
  70.                             ageLabel
  71.                         }
  72.                     },
  73.                     new StackLayout {
  74.                         Orientation = StackOrientation.Horizontal,
  75.                         Children = {
  76.                             new Label {
  77.                                 Text = "Occupation:",
  78.                                 FontSize = Device.GetNamedSize (NamedSize.Medium, typeof(Label)),
  79.                                 HorizontalOptions = LayoutOptions.FillAndExpand
  80.                             },
  81.                             occupationLabel
  82.                         }
  83.                     },
  84.                     new StackLayout {
  85.                         Orientation = StackOrientation.Horizontal,
  86.                         Children = {
  87.                             new Label {
  88.                                 Text = "Country:",
  89.                                 FontSize = Device.GetNamedSize (NamedSize.Medium, typeof(Label)),
  90.                                 HorizontalOptions = LayoutOptions.FillAndExpand
  91.                             },
  92.                             countryLabel
  93.                         }
  94.                     },
  95.                     dismissButton
  96.                 }
  97.             };
  98.
  99.         }
  100.         async void OnDismissButtonClicked(object sender, EventArgs args)
  101.         {
  102.             await Navigation.PopModalAsync();
  103.         }
  104.
  105.     }
  106. }


Step 6

Then, open App.xaml.cs page to declare that the Main Page of application is Mainpage.xaml and it's navigation pages. For that, go to Solution Explorer >> Modal page (PCL) >> click open App.xaml.cs and put the code given below.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5.
  6. using Xamarin.Forms;
  7.
  8. namespace ModalpageApp
  9. {
  10.     public partial class App : Application
  11.     {
  12.         public App()
  13.         {
  14.             InitializeComponent();
  15.
  16.             MainPage = new NavigationPage( new MainPage());
  17.         }
  18.
  19.         protected override void OnStart()
  20.         {
  21.             // Handle when your app starts
  22.         }
  23.
  24.         protected override void OnSleep()
  25.         {
  26.             // Handle when your app sleeps
  27.         }
  28.
  29.         protected override void OnResume()
  30.         {
  31.             // Handle when your app resumes
  32.         }
  33.     }
  34. }


Step 7

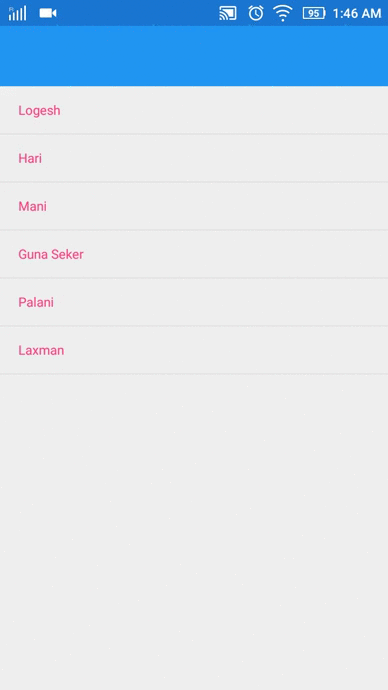

Press F5 or "Build and Run" your application. The result is shown below like this.


Finally, we have successfully created a Xamarin.Forms Modalpage application.
