Xamarin.Forms - Video Player App

Introduction

In this article, we are going to play a video and an audio in Xamarin.Forms application.There is no default function available for playing the video or audio. So, we need to add a plugin for this.



Nuget Packages

Xamarin.Forms = search "Plugin.MediaManager.Forms".

Xamarin.Android = search"Plugin.MediaMager".



MediaMager Cross-platform media plugin features

•  Designed to be simple and easy to play
•  Stand alone for easy integration with existing projects and frameworks
•  Native playback of media files from remote and local sources
•  Native media notifications and remote controls
•  Playback status(Playing, Buffering, Loading, Paused, Progress)

Step 1

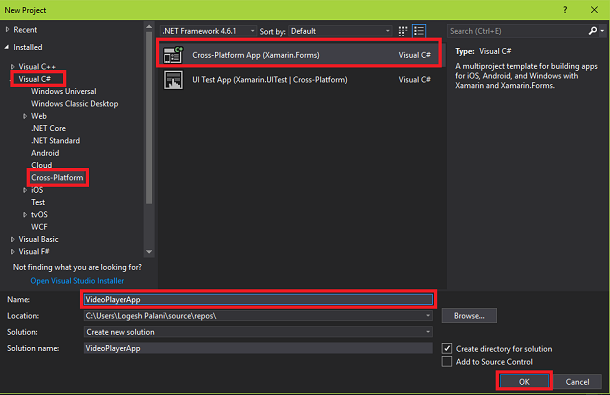

You can create Xamarin.Forms app by going to File >> New >> Visual C# >>Cross platform >>> Cross-platform App (Xamarin.Native or Xamarin.Forms), give the application name, and press OK.

(Project Name : VideoPlayerApp)





Step 2

After the project creation, add the following NuGet Packages to your project.

• Plugin.MediaManager
• Plugin.MediaManager.Forms

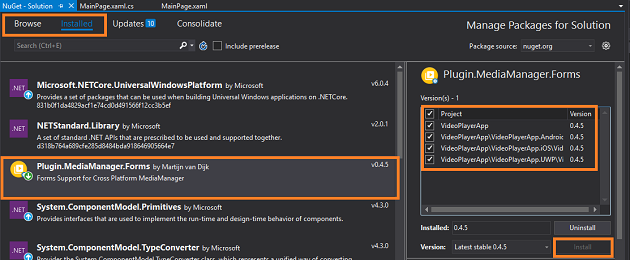

For that, go to Solution Explorer and select your solution. Right-click and select "Manage NuGet Packages for the Solution". Now, select the following NuGet Package and select your project to install it.

• Plugin.MediaManager.Forms



Step 3

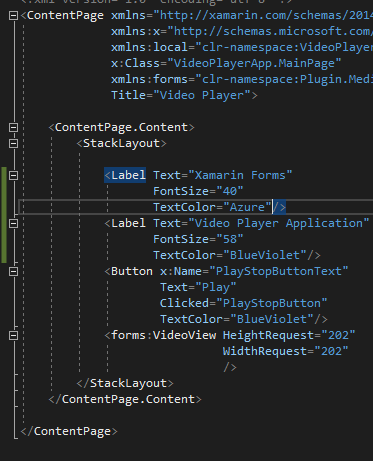

In this step, add a VideoView control to your project. For that, go to Solution Explorer >> VideoPlayerApp (PCL) >> double click on MainPage.Xaml. After opening this, you can add VideoView assembly and XAML code to your project.



Write the code as given below.



Assembly

xmlns:forms="clr-namespace:Plugin.MediaManager.Forms;assembly=Plugin.MediaManager.Forms"

XAML code

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:VideoPlayerApp"
             x:Class="VideoPlayerApp.MainPage"
             xmlns:forms="clr-namespace:Plugin.MediaManager.Forms;assembly=Plugin.MediaManager.Forms"
             Title="Video Player">

    <ContentPage.Content>
        <StackLayout>

            <Label Text="Xamarin Forms"
                   FontSize="40"
                   TextColor="Azure"/>
            <Label Text="Video Player Application"
                   FontSize="58"
                   TextColor="BlueViolet"/>
            <Button x:Name="PlayStopButtonText"
                    Text="Play"
                    Clicked="PlayStopButton"
                    TextColor="BlueViolet"/>
            <forms:VideoView HeightRequest="202"
                             WidthRequest="202"
                             />
        </StackLayout>
    </ContentPage.Content>

</ContentPage>





Step 4

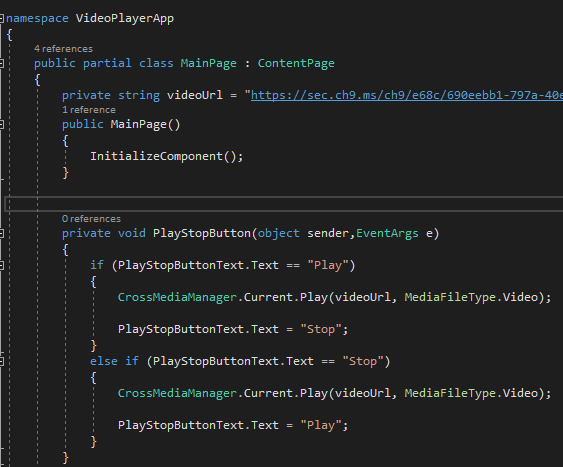

Next, open Solution Explorer >> VideoPlayerApp(PCL) >> MainPage.xaml.cs page and double-click to open its design view. The code is given below.



cs code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;
using Plugin.MediaManager.Forms;
using Plugin.MediaManager;
using Plugin.MediaManager.Abstractions.Enums;

namespace VideoPlayerApp
{
    public partial class MainPage : ContentPage
    {
        private string videoUrl = "https://sec.ch9.ms/ch9/e68c/690eebb1-797a-40ef-a841-c63dded4e68c/Cognitive-Services-Emotion_high.mp4";
        public MainPage()
        {
            InitializeComponent();
        }


        private void PlayStopButton(object sender,EventArgs e)
        {
            if (PlayStopButtonText.Text == "Play")
            {
                CrossMediaManager.Current.Play(videoUrl, MediaFileType.Video);

                PlayStopButtonText.Text = "Stop";
            }
            else if (PlayStopButtonText.Text == "Stop")
            {
                CrossMediaManager.Current.Play(videoUrl, MediaFileType.Video);

                PlayStopButtonText.Text = "Play";
            }
        }
    }
}





Step 5

Make sure to call " VideoViewRenderer.Init(); " from your platform code before starting playback, otherwise the video View will not be prepared to display the video.



Android Project

Add Android project by going to Solution Explorer >> VideoPlayerApp.Droid >>MainActivity.cs and double-click to open its design View. Here is the code.



MainActivity.cs  page code

using System;

using Android.App;
using Android.Content.PM;
using Android.Runtime;
using Android.Views;
using Android.Widget;
using Android.OS;
using Plugin.MediaManager.Forms.Android;

namespace VideoPlayerApp.Droid
{
    [Activity(Label = "VideoPlayerApp", Icon = "@drawable/icon", Theme = "@style/MainTheme", MainLauncher = true, ConfigurationChanges = ConfigChanges.ScreenSize | ConfigChanges.Orientation)]
    public class MainActivity : global::Xamarin.Forms.Platform.Android.FormsAppCompatActivity
    {
        protected override void OnCreate(Bundle bundle)
        {
            TabLayoutResource = Resource.Layout.Tabbar;
            ToolbarResource = Resource.Layout.Toolbar;

            base.OnCreate(bundle);

            VideoViewRenderer.Init();//Nuget Packages oncreate mathod

            global::Xamarin.Forms.Forms.Init(this, bundle);
            LoadApplication(new App());
        }
    }
}

IOS Project

Add iOS project. For that, go to Solution Explorer >> VideoPlayerApp.IOS >>AppDelegate.cs and click open AppDelegate.cs. Here is the code for this page.



AppDelegate.cs page code

using System;
using System.Collections.Generic;
using System.Linq;

using Foundation;
using Plugin.MediaManager.Forms.iOS;
using UIKit;

namespace VideoPlayerApp.iOS
{
    // The UIApplicationDelegate for the application. This class is responsible for launching the
    // User Interface of the application, as well as listening (and optionally responding) to
    // application events from iOS.
    [Register("AppDelegate")]
    public partial class AppDelegate : global::Xamarin.Forms.Platform.iOS.FormsApplicationDelegate
    {
        //
        // This method is invoked when the application has loaded and is ready to run. In this
        // method you should instantiate the window, load the UI into it and then make the window
        // visible.
        //
        // You have 17 seconds to return from this method, or iOS will terminate your application.
        //
        public override bool FinishedLaunching(UIApplication app, NSDictionary options)
        {
            global::Xamarin.Forms.Forms.Init();
            LoadApplication(new App());

            VideoViewRenderer.Init();// nuget packages oncreate mathod


            return base.FinishedLaunching(app, options);
        }
    }
}

Universal Windows Project

Add Universal Windows project. For that, open Solution Explorer >> VideoPlayerApp.UWP >> MainPage.xaml.cs and click open MainPage.xaml.cs.



Add the below given code to this page.



MainActivity.xaml.cs page code

using Plugin.MediaManager.Forms.UWP;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

namespace VideoPlayerApp.UWP
{
    public sealed partial class MainPage
    {
        public MainPage()
        {
            this.InitializeComponent();

            VideoViewRenderer.Init();

            LoadApplication(new VideoPlayerApp.App());
        }
    }
}

Step 6

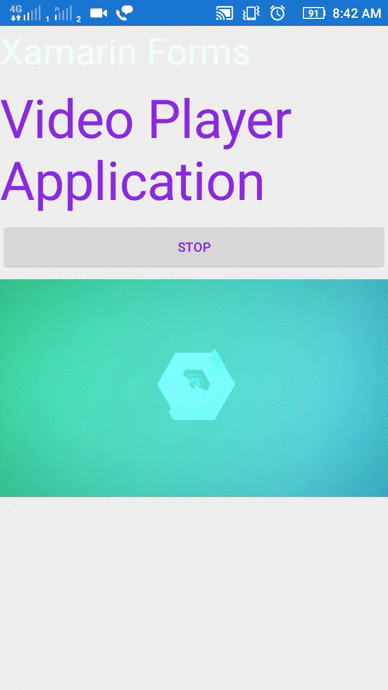

Click ' F5 ' or "Build " to run your projects. Running this project, you will have the result like below.





Finally, we have successfully created a Xamarin.Forms VideoPlayerApp Application.
