ASP.NET

Bind GridView from XML in ASP.NET

We need to have an XML file. Below is our XML. We will create a web application. Add this XML file in the solution.

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <STUDENTS>
  3.     <STUDENT>
  4.         <StudentID>1</StudentID>
  5.         <Name>John Smith</Name>
  6.         <Marks>200</Marks>
  7.     </STUDENT>
  8.     <STUDENT>
  9.         <StudentID>2</StudentID>
  10.         <Name>Mark Johnson</Name>
  11.         <Marks>300</Marks>
  12.     </STUDENT>
  13.     <STUDENT>
  14.         <StudentID>3</StudentID>
  15.         <Name>Nitin Tyagi</Name>
  16.         <Marks>400</Marks>
  17.     </STUDENT>
  18. </STUDENTS>
Add a webpage. Write the following code in the .aspx file.
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Index.aspx.cs" Inherits="BindGridviewFromXML.Index" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6.
  7. <head runat="server">
  8.     <title></title>
  9. </head>
  10.
  11. <body>
  12.     <form id="form1" runat="server">
  13.         <div>
  14.             <asp:GridView ID="Grddata" runat="server" AutoGenerateColumns="false">
  15.                 <Columns>
  16.                     <asp:BoundFieldDataField="StudentId" HeaderText="StudentId" />
  17.                     <asp:BoundFieldDataField="Name" HeaderText="Name" />
  18.                     <asp:BoundFieldDataField="Marks" HeaderText="Marks" />
  19.
  20.                 </Columns>
  21.             </asp:GridView>
  22.         </div>
  23.     </form>
  24. </body>
  25.
  26. </html>
Now we need to write some code to bind the gridview. Have a look at the code below.
  1. using System;
  2. usingSystem.Data;
  3. usingSystem.Web.UI;
  4. namespaceBindGridviewFromXML
  5. {
  6.     public partial class Index: System.Web.UI.Page
  7.     {
  8.         protected void Page_Load(object sender, EventArgs e)
  9.         {
  10.             if (!Page.IsPostBack)
  11.             {
  12.                 BindGridview();
  13.             }
  14.         }
  15.         protected void BindGridview()
  16.         {
  17.             using(DataSet ds = new DataSet())
  18.             {
  19.                 ds.ReadXml(Server.MapPath("~/Students.xml"));
  20.                 Grddata.DataSource = ds;
  21.                 Grddata.DataBind();
  22.             }
  23.         }
  24.     }
  25. }

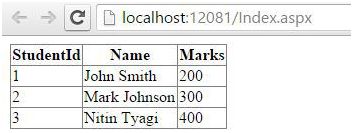

Let us run the application now and check the output.



Gridview is displaying the records that were present in the XML file.
