Create Custom Round Button in Windows 10

In this blog, you will learn how to create custom round button in windows 10.

Create new Windows 10 project to know how to create windows 10 projects refer my previous article:

• Develop Apps For Windows 10

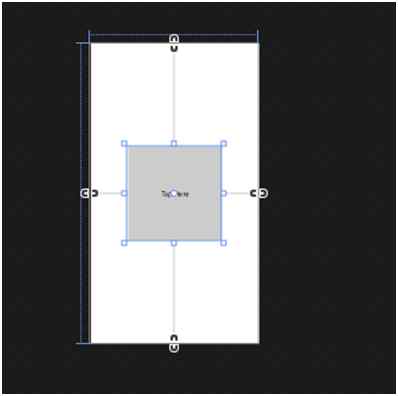

Now create one normal button as shown like below



XAML Code.

<Button Height="200" Width="200" Content="Tap Here" HorizontalAlignment="Center" Click="Button_Click"/>

Now add the below style in your page resource area. It looks like below:

<Page
x:Class="CustomCircleButton.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:CustomCircleButton"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d">
    <Page.Resources>
        <Style x:Key="CircleButton" TargetType="Button">
            <Setter Property="Background">
                <Setter.Value>
                    <LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
                        <GradientStop Offset="0" Color="Blue"/>
                        <GradientStop Offset="1" Color="BlueViolet"/>
                    </LinearGradientBrush>
                </Setter.Value>
            </Setter>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Button">
                        <Grid>
                            <VisualStateManager.VisualStateGroups>
                                <VisualStateGroup x:Name="CommonStates">
                                    <VisualState x:Name="Disabled"/>
                                    <VisualState x:Name="Normal"/>
                                    <VisualState x:Name="MouseOver"/>
                                    <VisualState x:Name="Pressed">
                                        <Storyboard>
                                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="Inner" Storyboard.TargetProperty="(ScaleTransform.ScaleY)">
                                                <DiscreteObjectKeyFrame KeyTime="0:0:0.0" Value="1"/>
                                            </ObjectAnimationUsingKeyFrames>
                                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="Outer" Storyboard.TargetProperty="(ScaleTransform.ScaleY)">
                                                <DiscreteObjectKeyFrame KeyTime="0:0:0.0" Value="-1"/>
                                            </ObjectAnimationUsingKeyFrames>
                                        </Storyboard>
                                    </VisualState>
                                </VisualStateGroup>
                                <VisualStateGroup x:Name="FocusStates">
                                    <VisualState x:Name="Focused"/>
                                    <VisualState x:Name="Unfocused"/>
                                </VisualStateGroup>
                            </VisualStateManager.VisualStateGroups>
                            <Ellipse Margin="4" Fill="{TemplateBinding Background}" RenderTransformOrigin="0.5,0.5">
                                <Ellipse.RenderTransform>
                                    <ScaleTransform ScaleY="1" x:Name="Outer"/>
                                </Ellipse.RenderTransform>
                            </Ellipse>
                            <Ellipse Margin="20" Fill="{TemplateBinding Background}" RenderTransformOrigin="0.5,0.5">
                                <Ellipse.RenderTransform>
                                    <ScaleTransform ScaleY="-1" x:Name="Inner"/>
                                </Ellipse.RenderTransform>
                            </Ellipse>
                            <ContentPresenter x:Name="content" HorizontalAlignment="Center" VerticalAlignment="Center"/>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
    </Page.Resources>

Now add this style to the simple button already we created:

<Button Height="200" Width="200" Content="Tap Here" HorizontalAlignment="Center" Style="{StaticResource CircleButton}" Click="Button_Click"/>
</Grid>

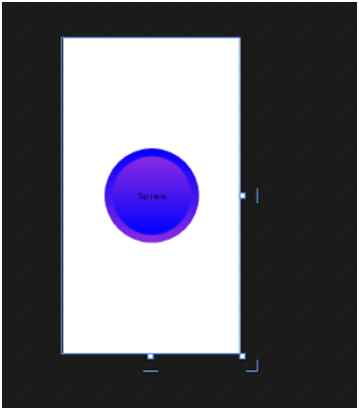

Now your button looks like below screen.



Now run the app and check how it looks in windows 10 desktop and simulator

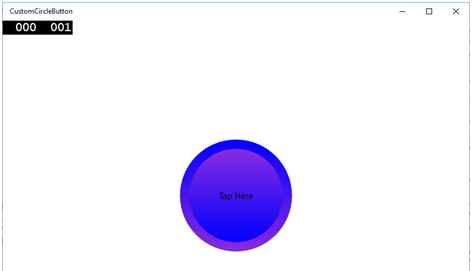

Desktop

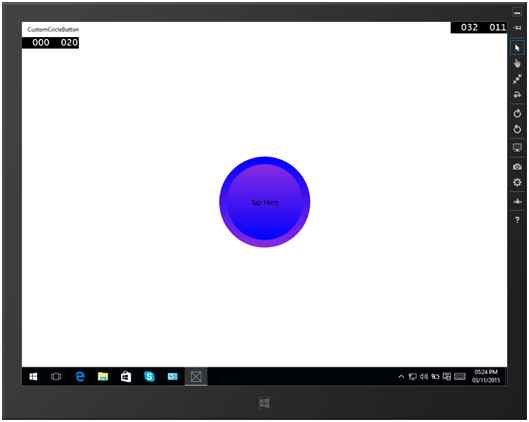

Simulator
