Creating Simple WebService in ASP.NET

1. First Add WebService in your Asp.net WebApplication and Name Employees:

File >> New >> Project >> Web>> Asp.netWebAppliCation : then  follow the figure:

 Figure 1

Figure 2

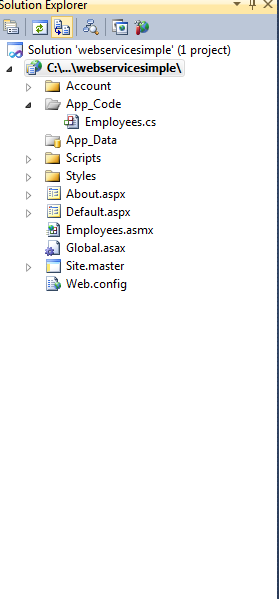

2. You will find it  in App Code Folder:


Figure 3

3.
Open The Employees.asmx and add  a class name EMPLOYEES and ADD some employees in it(List OF Employees) below Employee constructor:


Figure 4


Figure 5

4. Now Add Two Web Methods GetAllEmployees () and GetEMployeesByEmpCode() below List Of Employees:


Figure 6

5. Now Go To the Design Page Default.aspx and add the code given below:
  1.  <input type="button" id="getemployees" value="Get Employees" onclick="getEmployees();" />
  2.  <div id="output" style="overflow: scroll">
  3.  </div>
  4.  <input type="button" id="getemployeesbyempcode" value="Get Employees By Code" onclick="GetEmployeesByEmpCode();" />
  5. </br> Select Emp Code:<div id="Div1">
  6.         <select id="ddlemployees"  onchange="GetEmployeesByEmpCode();">
  7.      </select>
  8.  </div>
6. Add jquery reference on site.master
  1. <script src="scripts/jquery-1.4.1.min.js" type="text/javascript"></script>
7. Now Create a Jquery Function to getEmployees() under Head tag in site.Master:
  1.     function getEmployees() {
  2.
  3.     $.ajax({
  4.
  5.         type: "POST",
  6.
  7.         url: "Employees.asmx/GetAllEmployees",
  8.
  9.         data: "{}",
  10.
  11.         contentType: "application/json; charset=utf-8",
  12.
  13.         dataType: "json",
  14.
  15.         success: function (response) {
  16.
  17.             var Employees= response.d;
  18.
  19.             $('#output').empty();
  20.             $('#output').append('<table id="tbone"><thead><tr><th style="width:60px">EMPLOYENAME</th><th style="width:60px">EMPCODE</th><th style="width:60px">GENDER</th></tr></thead></table>');
  21.             $.each(Employees, function (index, Employee) {
  22.
  23.                 var Name = "empname";
  24.                 var EmpCode = "empcode";
  25.                 var Gender = "gender";
  26.
  27.
  28.                 $('#output').append('<table><tr><td style="width:60px">' + Employee.empname + '</td><td style="width:60px">' + Employee.empcode + '</td><td style="width:60px">' + Employee.gender + '</td></tr>');
  29.             });
  30.
  31.         },
  32.
  33.         failure: function (msg) {
  34.
  35.             $('#output').text(msg);
  36.
  37.         }
  38.
  39.     });
  40.
  41. }
8. Now Create a Jquery Function to GetEmployeesByEmpCode() under Head tag in site.Master:
  1. function GetEmployeesByEmpCode() {
  2.
  3. $.ajax({
  4.
  5.     type: "POST",
  6.
  7.     url: "Employees.asmx/GetEmployeesByEmpCode",
  8.
  9.     data: "{empcode:" + $('#ddlemployees').val() + "}",
  10.
  11.     contentType: "application/json; charset=utf-8",
  12.
  13.     dataType: "json",
  14.
  15.     success: function (response) {
  16.
  17.         var Employees = response.d;
  18.
  19.         $('#output').empty();
  20.         $('#output').append('<table id="tbone"><thead><tr><th style="width:60px">EmployeeName</th><th style="width:60px">EmpCode</th><th style="width:60px">Gender</th><th style="width:60px">DOORS</th></tr></thead></table>');
  21.         $.each(Employees, function (index, Employee) {
  22.
  23.
  24.                $('#output').append('<table><tr><td style="width:60px">' + Employee.empname + '</td><td style="width:60px">' + Employee.empcode + '</td><td style="width:60px">' + Employee.gender + '</td></tr>');
  25.         });
  26.
  27.     },
  28.
  29.     failure: function (msg) {
  30.
  31.         $('#output').text(msg);
  32.
  33.     }
  34.
  35. });

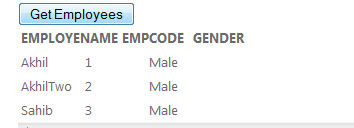

OUTPUT after pressing  get all employees:


Figure 7

OUTPUT after Selecting empcode from dropdownlist::


Figure 8
