CUMEDIST Analytic Functions In SQL Server 2012

The CUME_DIST () are analytic functions in SQL Server 2012

The purpose of CUME_DIST () function is to calculate cumulative distribution value in a group of the values in a given result set or a partition.

The CUME_DIST () formula

“The values less than or equal to the current value row number” / “Total number of row in a group or partition”. The return type is float (53) and the values are always between 0 and 1.

The syntax of CUME_DIST () is given below.

CUME_DIST ( )
OVER ([ partition_by_clause ] order_by_clause )

Example 1 CUME_DIST ()

CREATE TABLE [CompanyShareRates]
(
[Id] INT IDENTITY,
[Date] DATETIME,
[Name] VARCHAR(100),
[ShareRate] NUMERIC(18,2)
)

INSERT INTO [CompanyShareRates] VALUES('2017-02-03','TCS',200.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-04','TCS',210.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-05','TCS',230.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-06','TCS',230.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-07','TCS',250.50)

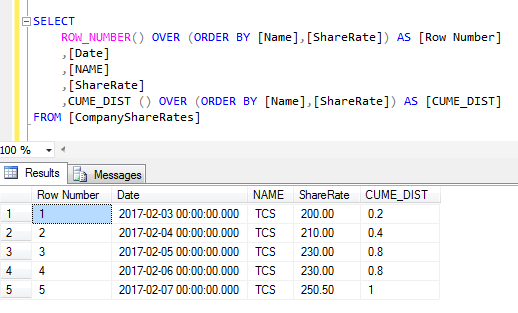

SELECT
ROW_NUMBER() OVER (ORDER BY [Name],[ShareRate]) AS [Row Number]
,[Date]
,[NAME]
,[ShareRate]
,CUME_DIST () OVER (ORDER BY [Name],[ShareRate]) AS [CUME_DIST]
FROM [CompanyShareRates]

Explanation

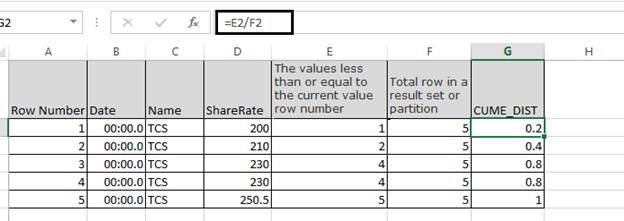

CUME_DIST is calculated in Excel.



In ‘TCS’ group given above, we have 4 share rates in 5 rows.

Column E

For the 1st row, there is 1 row with value (200) or lower. Hence, the ‘E’ Column value will be 1.

For the 2nd row, there are 2 rows with value (210) or lower. Hence, the ‘E’ Column value will be 2.

For the 3rd and 4th rows, there are 4 rows with value (230) or lower. Hence, the ‘E’ Column value will be 4 for both the row.

For the 5th row, there are 5 rows with the value (250.5) or lower. Hence, the ‘E’ Column value will be 5.

Column F

Total number of rows in result set. i.e. -- 5

Column G

• CMUE_DIST for row 1 = 1/5 = 0.2
• CMUE_DIST for row 2 = 2/5 = 0.4
• CMUE_DIST for row 3 = 4/5 = 0.8
• CMUE_DIST for row 4 = 4/5 = 0.8
• CMUE_DIST for row 5 = 5/5 = 1

Example 2 CUME_DIST () with Partition by Clause

INSERT INTO [CompanyShareRates] VALUES('2017-02-03','Hero Motocorp',390.50)
INSERT INTO [CompanyShareRates] VALUES('2017-02-03','GAIL',302.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-04','Hero Motocorp',391.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-04','GAIL',302.25)
INSERT INTO [CompanyShareRates] VALUES('2017-02-05','Hero Motocorp',390.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-05','GAIL',203.25)
INSERT INTO [CompanyShareRates] VALUES('2017-02-06','Hero Motocorp',389.50)
INSERT INTO [CompanyShareRates] VALUES('2017-02-06','GAIL',401.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-07','Hero Motocorp',389.00)
INSERT INTO [CompanyShareRates] VALUES('2017-02-07','GAIL',401.00)

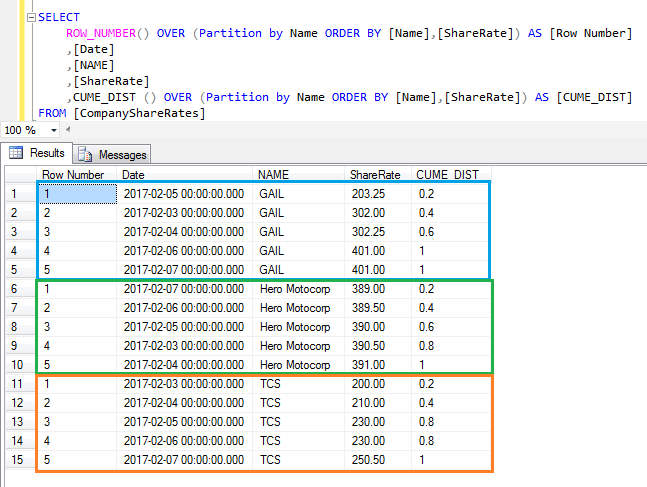

SELECT
ROW_NUMBER() OVER (Partition by Name ORDER BY [Name],[ShareRate]) AS [Row Number]
,[Date]
,[NAME]
,[ShareRate]
,CUME_DIST () OVER (Partition by Name ORDER BY [Name],[ShareRate]) AS [CUME_DIST]
FROM [CompanyShareRates]
