Easiest way to JOIN Two or More SQL Tables

Before reading this blog I expect you are familiar with creating Database and Tables.

STEPS
  • Suppose we have a Film Database with two table as TblMovie and TblActor.
  • Table structure of TblMovie is

  •  Table structure of TblActor is


  •  Lets we have datas in our Table like
    1. USE [Film]
    2. GO
    3. /****** Object:  Table [dbo].[TblMovie]    Script Date: 05/06/2015 10:21:01 ******/
    4. SET ANSI_NULLS ON
    5. GO
    6. SET QUOTED_IDENTIFIER ON
    7. GO
    8. SET ANSI_PADDING ON
    9. GO
    10. CREATE TABLE [dbo].[TblMovie](
    11.     [MovieId] [int] IDENTITY(1,1) NOT NULL,
    12.     [MovieName] [varchar](50) NULL,
    13.     [ReleaseYear] [varchar](50) NULL
    14. ON [PRIMARY]
    15. GO
    16. SET ANSI_PADDING OFF
    17. GO
    18. SET IDENTITY_INSERT [dbo].[TblMovie] ON
    19. INSERT [dbo].[TblMovie] ([MovieId], [MovieName], [ReleaseYear]) VALUES (1, N'My Fair Lady', N'1964')
    20. INSERT [dbo].[TblMovie] ([MovieId], [MovieName], [ReleaseYear]) VALUES (2, N'Unforgiven', N'1992')
    21. INSERT [dbo].[TblMovie] ([MovieId], [MovieName], [ReleaseYear]) VALUES (3, N'Time Machine', N'1997')
    22. SET IDENTITY_INSERT [dbo].[TblMovie] OFF
    23. /****** Object:  Table [dbo].[TblActor]    Script Date: 05/06/2015 10:21:01 ******/
    24. SET ANSI_NULLS ON
    25. GO
    26. SET QUOTED_IDENTIFIER ON
    27. GO
    28. SET ANSI_PADDING ON
    29. GO
    30. CREATE TABLE [dbo].[TblActor](
    31.     [MovieId] [intNOT NULL,
    32.     [FirstName] [varchar](50) NULL,
    33.     [LastName] [varchar](50) NULL
    34. ON [PRIMARY]
    35. GO
    36. SET ANSI_PADDING OFF
    37. GO
    38. INSERT [dbo].[TblActor] ([MovieId], [FirstName], [LastName]) VALUES (1, N'Rex', N'Harrison')
    39. INSERT [dbo].[TblActor] ([MovieId], [FirstName], [LastName]) VALUES (1, N'Audrey', N'Hepburn')
    40. INSERT [dbo].[TblActor] ([MovieId], [FirstName], [LastName]) VALUES (2, N'Clint', N'Eastwood')
    41. INSERT [dbo].[TblActor] ([MovieId], [FirstName], [LastName]) VALUES (5, N'Humphery', N'Bogart')
  • Now we have to join the two tables TblMovie and TblActor on the basis of MovieId

    Write SQL Select Statement in the Query Editor
  1. select * from dbo.TblMovie

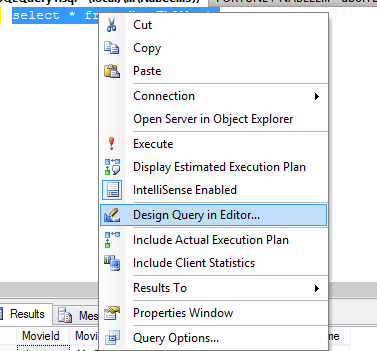

Then select the query right click on it and Click Design Query in Editor like the below Image

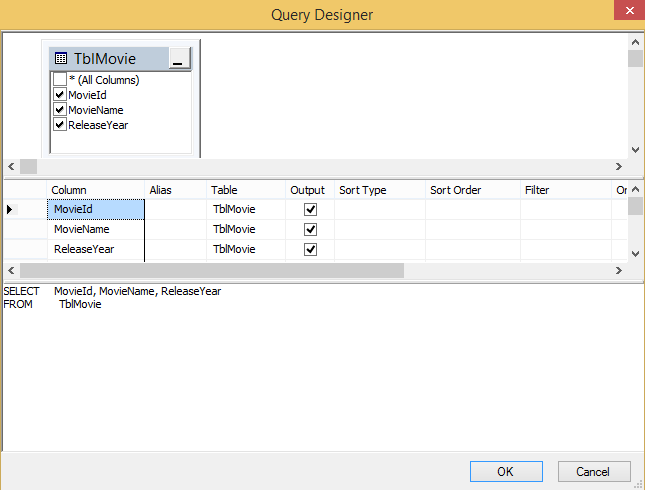

  • The upcoming window after clicking Design Query in Editor is:

  • Now right click on it select Add Table and then select Tables or Views you want to Join:

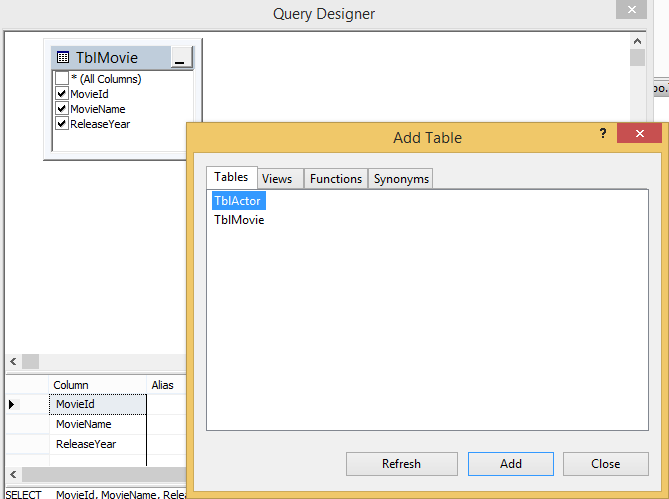

  • The next Pop up window will come like:

  • Now click add and close the window.

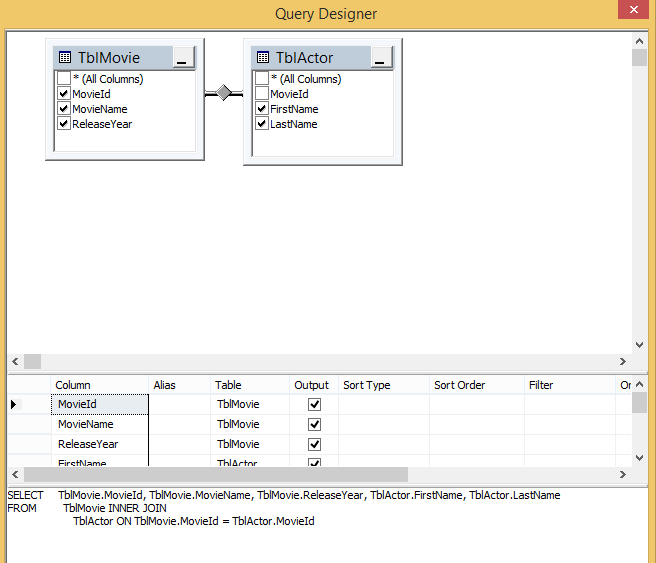

  • Drag MovieId from TblMovie and put it in MovieId of TblActor and check FirstName and LastName like below image.

  • Now you can click ok and execute the query you will get the desired result or else you can do Filter to get your desired result.

I hope you liked it and in the same process you can join multiple tables by adding another Table and View.
