Introduction

This example shows how to export an HTML table to an Excel sheet using jquery table2excel plugin.

What is table2excel?

table2excel is a jQuery Plugin. it is used to export HTML tables to Excel sheets.

How to Include table2excel jQuery Plugin Within HTML File

<script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
<script src="table2excel.js" type="text/javascript"></script>

table2excel.js Markup

Create one text document within root directory of your project and save that document with name table2excel.js

After this, write the following code in table2excel.js file and save it.

//table2excel.js
; (function ($, window, document, undefined) {
var pluginName = "table2excel",
defaults = {
exclude: ".noExl",
name: "Table2Excel",
filename: "table2excel",
fileext: ".xls",
exclude_img: true,
exclude_links: true,
exclude_inputs: true
};
// The actual plugin constructor
function Plugin(element, options) {
this.element = element;
// jQuery has an extend method which merges the contents of two or
// more objects, storing the result in the first object. The first object
// is generally empty as we don't want to alter the default options for
// future instances of the plugin
//
this.settings = $.extend({}, defaults, options);
this._defaults = defaults;
this._name = pluginName;
this.init();
}
Plugin.prototype = {
init: function () {
var e = this;
var utf8Heading = "<meta http-equiv=\"content-type\" content=\"application/vnd.ms-excel; charset=UTF-8\">";
e.template = {
head: "<html xmlns:o=\"urn:schemas-microsoft-com:office:office\" xmlns:x=\"urn:schemas-microsoft-com:office:excel\" xmlns=\"http://www.w3.org/TR/REC-html40\">" + utf8Heading + "<head><!--[if gte mso 9]><xml><x:ExcelWorkbook><x:ExcelWorksheets>",
sheet: {
head: "<x:ExcelWorksheet><x:Name>",
tail: "</x:Name><x:WorksheetOptions><x:DisplayGridlines/></x:WorksheetOptions></x:ExcelWorksheet>"
},
mid: "</x:ExcelWorksheets></x:ExcelWorkbook></xml><![endif]--></head><body>",
table: {
head: "<table>",
tail: "</table>"
},
foot: "</body></html>"
};
e.tableRows = [];
// get contents of table except for exclude
$(e.element).each(function (i, o) {
var tempRows = "";
$(o).find("tr").not(e.settings.exclude).each(function (i, p) {
tempRows += "<tr>";
$(p).find("td,th").not(e.settings.exclude).each(function (i, q) { // p did not exist, I corrected
var rc = {
rows: $(this).attr("rowspan"),
cols: $(this).attr("colspan"),
flag: $(q).find(e.settings.exclude)
};
if (rc.flag.length > 0) {
tempRows += "<td> </td>"; // exclude it!!
} else {
if (rc.rows & rc.cols) {
tempRows += "<td>" + $(q).html() + "</td>";
} else {
tempRows += "<td";
if (rc.rows > 0) {
tempRows += " rowspan=\'" + rc.rows + "\' ";
}
if (rc.cols > 0) {
tempRows += " colspan=\'" + rc.cols + "\' ";
}
tempRows += "/>" + $(q).html() + "</td>";
}
}
});
tempRows += "</tr>";
console.log(tempRows);
});
// exclude img tags
if (e.settings.exclude_img) {
tempRows = exclude_img(tempRows);
}
// exclude link tags
if (e.settings.exclude_links) {
tempRows = exclude_links(tempRows);
}
// exclude input tags
if (e.settings.exclude_inputs) {
tempRows = exclude_inputs(tempRows);
}
e.tableRows.push(tempRows);
});
e.tableToExcel(e.tableRows, e.settings.name, e.settings.sheetName);
},
tableToExcel: function (table, name, sheetName) {
var e = this, fullTemplate = "", i, link, a;
e.format = function (s, c) {
return s.replace(/{(\w+)}/g, function (m, p) {
return c[p];
});
};
sheetName = typeof sheetName === "undefined" ? "Sheet" : sheetName;
e.ctx = {
worksheet: name || "Worksheet",
table: table,
sheetName: sheetName
};
fullTemplate = e.template.head;
if ($.isArray(table)) {
for (i in table) {
//fullTemplate += e.template.sheet.head + "{worksheet" + i + "}" + e.template.sheet.tail;
fullTemplate += e.template.sheet.head + sheetName + i + e.template.sheet.tail;
}
}
fullTemplate += e.template.mid;
if ($.isArray(table)) {
for (i in table) {
fullTemplate += e.template.table.head + "{table" + i + "}" + e.template.table.tail;
}
}
fullTemplate += e.template.foot;
for (i in table) {
e.ctx["table" + i] = table[i];
}
delete e.ctx.table;
var isIE = /*@cc_on!@*/false || !!document.documentMode; // this works with IE10 and IE11 both :)
//if (typeof msie !== "undefined" && msie > 0 || !!navigator.userAgent.match(/Trident.*rv\:11\./)) // this works ONLY with IE 11!!!
if (isIE) {
if (typeof Blob !== "undefined") {
//use blobs if we can
fullTemplate = e.format(fullTemplate, e.ctx); // with this, works with IE
fullTemplate = [fullTemplate];
//convert to array
var blob1 = new Blob(fullTemplate, { type: "text/html" });
window.navigator.msSaveBlob(blob1, getFileName(e.settings));
} else {
//otherwise use the iframe and save
//requires a blank iframe on page called txtArea1
txtArea1.document.open("text/html", "replace");
txtArea1.document.write(e.format(fullTemplate, e.ctx));
txtArea1.document.close();
txtArea1.focus();
sa = txtArea1.document.execCommand("SaveAs", true, getFileName(e.settings));
}
} else {
var blob = new Blob([e.format(fullTemplate, e.ctx)], { type: "application/vnd.ms-excel" });
window.URL = window.URL || window.webkitURL;
link = window.URL.createObjectURL(blob);
a = document.createElement("a");
a.download = getFileName(e.settings);
a.href = link;
document.body.appendChild(a);
a.click();
document.body.removeChild(a);
}
return true;
}
};
function getFileName(settings) {
return (settings.filename ? settings.filename : "table2excel");
}
// Removes all img tags
function exclude_img(string) {
var _patt = /(\s+alt\s*=\s*"([^"]*)"|\s+alt\s*=\s*'([^']*)')/i;
return string.replace(/<img[^>]*>/gi, function myFunction(x) {
var res = _patt.exec(x);
if (res !== null && res.length >= 2) {
return res[2];
} else {
return "";
}
});
}
// Removes all link tags
function exclude_links(string) {
return string.replace(/<a[^>]*>|<\/a>/gi, "");
}
// Removes input params
function exclude_inputs(string) {
var _patt = /(\s+value\s*=\s*"([^"]*)"|\s+value\s*=\s*'([^']*)')/i;
return string.replace(/<input[^>]*>|<\/input>/gi, function myFunction(x) {
var res = _patt.exec(x);
if (res !== null && res.length >= 2) {
return res[2];
} else {
return "";
}
});
}
$.fn[pluginName] = function (options) {
var e = this;
e.each(function () {
if (!$.data(e, "plugin_" + pluginName)) {
$.data(e, "plugin_" + pluginName, new Plugin(this, options));
}
});
// chain jQuery functions
return e;
};
})(jQuery, window, document);

HTML Markup

Now, create another text document within the root directory of your project and save it with the name of "Example.html".

After this, write the following code within your created Example.html file and save it.

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title></title>
<style type="text/css">
body
{
font-family: Arial;
font-size: 10pt;
}
table
{
border: 1px solid #ccc;
border-collapse: collapse;
}
table th
{
background-color: #ff7f00;
color: #fff;
font-weight: bold;
}
table th, table td
{
padding: 5px;
border: 1px solid #ccc;
}
</style>
</head>
<body>
<table id="tblEmployee" cellspacing="0" cellpadding="0">
<tr>
<th>Employee Id</th>
<th>Employee Name</th>
<th>Department</th>
</tr>
<tr>
<td>1</td>
<td>Nikunj Satasiya</td>
<td>Asp.Net</td>
</tr>
<tr>
<td>2</td>
<td>Hiren Dobariya</td>
<td>PHP</td>
</tr>
<tr>
<td>3</td>
<td>Vivek Ghadiya</td>
<td>Android</td>
</tr>
<tr>
<td>4</td>
<td>Pratik Pansuriya</td>
<td>SEO</td>
</tr>
</table>
<br />
<input type="button" id="btnExporttoExcel" value="Export To Excel" />
<script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/2.2.4/jquery.min.js"></script>
<script src="table2excel.js" type="text/javascript"></script>
<script type="text/javascript">
$(function () {
$("#btnExporttoExcel").click(function () {
$("#tblEmployee").table2excel({
filename: "Your_File_Name.xls"
});
});
});
</script>
</body>
</html>

NOTE

At the end of table tag </table>, you need to add the following script.

$("#yourHtmTable").table2excel({
exclude: ".excludeThisClass",
name: "Worksheet Name",
filename: "SomeFile" //do not include extension
});

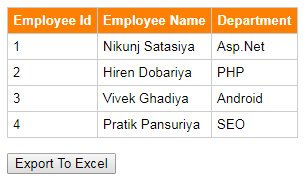

Screenshots/Output

Output

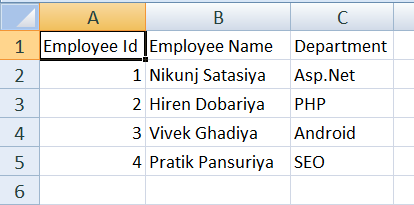

The screen after exporting HTML table to Excel sheet.

Summary

When the Export to Excel button is clicked, the jQuery table2excel plugin is applied to the created HTML table. The jQuery table2excel plugin accepts the file name as a parameter which sets the name of the Excel file.
