How To Get The Serial Number Of Hard Drive By C#

To get the serial number of the hard disk, we need to use some C# classes.

ManagementObjectSearcher Class  is the class which initializes the new instance of ManagementObjectSearcher class. Basically, it is used to retrieve the management system of the system.

Let's Start.

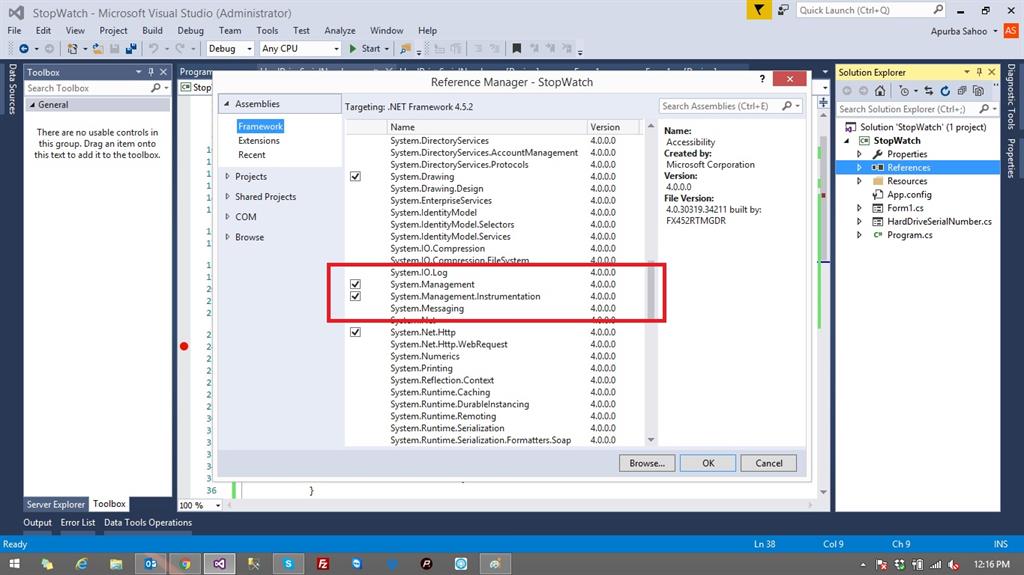

Step 1: Creat a Project =>Right click on references, then Add System.Management, System.Management.Instrument.

Add a button and three labels to it.


Step 2 : Add the Namespaces to the project.

C# Code
  1. using System.Management;
  2. using System.IO;
  3. using System.Collections;
Step 3: Declare an ArrayList.
  1. ArrayList hardDriveDetails = new ArrayList();
Step 4: In the buttonClick event, write the following code.
  1. private void button1_Click(object sender, EventArgs e)
  2.        {
  3.            ManagementObjectSearcher moSearcher = new
  4.   ManagementObjectSearcher("SELECT * FROM Win32_DiskDrive");
  5.
  6.            foreach (ManagementObject wmi_HD in moSearcher.Get())
  7.            {
  8.                HardDrive hd = new HardDrive();  // User Defined Class
  9.                hd.Model = wmi_HD["Model"].ToString();  //Model Number
  10.                hd.Type = wmi_HD["InterfaceType"].ToString();  //Interface Type
  11.                hd.SerialNo= wmi_HD["SerialNumber"].ToString();  Serial Number
  12.                hardDriveDetails.Add(hd);
  13.                label1.Text ="Model : "+ hd.Model ;
  14.                label2.Text = " Type : " + hd.Type;
  15.                label3.Text = " Serial Number : " + hd.SerialNo;
  16.            }
  17.
  18.        }
Step 5: Add a user-defined class HardDrive having the following properties.
  1. class HardDrive
  2.     {
  3.         private string model = null;
  4.         private string type = null;
  5.         private string serialNo = null;
  6.         public string Model
  7.         {
  8.             get { return model; }
  9.             set { model = value; }
  10.         }
  11.         public string Type
  12.         {
  13.             get { return type; }
  14.             set { type = value; }
  15.         }
  16.         public string SerialNo
  17.         {
  18.             get { return serialNo; }
  19.             set { serialNo = value; }
  20.         }
  21.     }

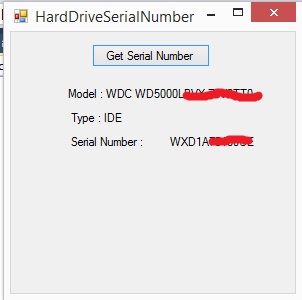

Step 6: Now, run the code.
