Listview Filtering in Android

Here I have an edit text and a Listview, and I will explain how we can filter the Listview according to values entered by the user in the edit text. First create the layout file for this.

  1. <?xml version="1.0" encoding="utf-8"?>
  2.     <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.         android:layout_width="match_parent"
  4.         android:layout_height="match_parent"
  5.         android:background="@android:color/white"
  6.         android:orientation="vertical" >
  7.
  8.         <RelativeLayout
  9.             android:id="@+id/wrapper_counrty_search"
  10.             android:layout_width="match_parent"
  11.             android:layout_marginTop="10dp"
  12.             android:layout_marginBottom="10dp"
  13.             android:layout_height="wrap_content"
  14.             android:padding="10dp" >
  15.
  16.             <EditText
  17.                 android:id="@+id/country_picker_search"
  18.                 android:layout_width="match_parent"
  19.                 android:layout_height="wrap_content"
  20.                 android:hint="search"
  21.                 android:paddingLeft="5sp"
  22.                 android:paddingRight="5dp"
  23.                 android:textCursorDrawable="@null"
  24.                 android:textSize="14sp" />
  25.         </RelativeLayout>
  26.
  27.         <Lictview
  28.             android:id="@+id/country_picker_Lictview "
  29.             android:layout_width="match_parent"
  30.             android:layout_height="0dp"
  31.             android:layout_marginBottom="10dp"
  32.             android:layout_marginLeft="10dp"
  33.             android:layout_marginRight="10dp"
  34.             android:layout_weight="1"
  35.             android:divider="@android:color/transparent"
  36.             android:dividerHeight="2dp" >
  37.         </Lictview >
  38.
  39.     </LinearLayout>
Bind the UI controls in the JAVA file,
  1. searchEditText = (EditText) findViewById(R.id.country_picker_search);
  2. countryLictview = (Lictview ) findViewById(R.id.country_picker_Lictview );
Now we need to create the Listview row like the following,
  1. <?xml version="1.0" encoding="utf-8"?>
  2.     <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.         android:layout_width="match_parent"
  4.         android:layout_height="wrap_content"
  5.         android:orientation="vertical" >
  6.
  7.         <TextView
  8.             android:id="@+id/country_title"
  9.             android:layout_width="wrap_content"
  10.             android:layout_height="wrap_content"
  11.             android:padding="10dp"
  12.             android:paddingLeft="5dp"
  13.             android:textStyle="bold"
  14.             android:textColor="@android:color/black" />
  15.         <TextView
  16.             android:id="@+id/country_code"
  17.             android:layout_width="wrap_content"
  18.             android:layout_height="wrap_content"
  19.             android:paddingLeft="10dp"
  20.             android:text="asdasdasd"
  21.             android:textColor="@android:color/black"
  22.             android:textSize="12sp" />
  23.     </LinearLayout>
We have a JSON file that is in the raw folder of the Android application. Now create the List adapter like the following,
  1. public class PickerAdapter extends BaseAdapter
  2. {
  3.     private Context context;
  4.     List < PickerItem > pickerItems;
  5.     LayoutInflater inflater;
  6.     /**
  7.      * Constructor
  8.      *
  9.      * @param context
  10.      */
  11.     public PickerAdapter(Context context, List < PickerItem > contactList)
  12.     {
  13.         super();
  14.         this.context = context;
  15.         this.pickerItems = contactList;
  16.         inflater = (LayoutInflater) this.context
  17.             .getSystemService(Context.LAYOUT_INFLATER_SERVICE);
  18.     }
  19.     @Override
  20.     public int getCount()
  21.     {
  22.         return pickerItems.size();
  23.     }
  24.     @Override
  25.     public Object getItem(int arg0)
  26.     {
  27.         return null;
  28.     }
  29.     @Override
  30.     public long getItemId(int arg0)
  31.         {
  32.             return 0;
  33.         }
  34.         /**
  35.          * Return row for each country
  36.          */
  37.     @Override
  38.     public View getView(int position, View convertView, ViewGroup parent)
  39.         {
  40.             View cellView = convertView;
  41.             Cell cell;
  42.             PickerItem contact = pickerItems.get(position);
  43.             if (convertView == null)
  44.             {
  45.                 cell = new Cell();
  46.                 cellView = inflater.inflate(R.layout.picker_list_row, null);
  47.                 cell.contactName = (TextView) cellView.findViewById(R.id.country_title);
  48.                 cell.contactNumber = (TextView) cellView.findViewById(R.id.country_code);
  49.                 cellView.setTag(cell);
  50.             }
  51.             else
  52.             {
  53.                 cell = (Cell) cellView.getTag();
  54.             }
  55.             cell.contactName.setText(contact.getItemName());
  56.             cell.contactNumber.setText(contact.getItemDetails());
  57.             return cellView;
  58.         }
  59.         /**
  60.          * Holder for the cell
  61.          *
  62.          */
  63.     static class Cell
  64.     {
  65.         public TextView contactName;
  66.         public TextView contactNumber;
  67.     }
  68. }
We should also have the model classes like the following,
  1. public class PickerItem
  2. {
  3.     public String getItemName()
  4.     {
  5.         return itemName;
  6.     }
  7.     public void setItemName(String itemName)
  8.     {
  9.         this.itemName = itemName;
  10.     }
  11.     public String getItemDetails()
  12.     {
  13.         return itemDetails;
  14.     }
  15.     public void setItemDetails(String itemDetails)
  16.     {
  17.         this.itemDetails = itemDetails;
  18.     }
  19.     private String itemName = null;
  20.     private String itemDetails = null;
  21. }
And one more model class,
  1. public class PickerList
  2. {
  3.     public ArrayList < PickerItem > getPickerList()
  4.     {
  5.         return pickerList;
  6.     }
  7.     public void setPickerList(ArrayList < PickerItem > pickerList)
  8.     {
  9.         this.pickerList = pickerList;
  10.     }
  11.     private ArrayList < PickerItem > pickerList = null;
  12. }
Now in the Main Activity we need to set the Adapter to this Listview like the following,
  1. adapter = new PickerAdapter(this, selectedCountryList);
  2. countryLictview.setAdapter(adapter);
  3. Now we need to set the edittext text change properties
  4. for filtering
  5. searchEditText.addTextChangedListener(new TextWatcher()
  6. {
  7.     @Override
  8.     public void onTextChanged(CharSequence s, int start, int before,
  9.         int count)
  10.     {}
  11.     @Override
  12.     public void beforeTextChanged(CharSequence s, int start, int count,
  13.         int after)
  14.     {}
  15.     @Override
  16.     public void afterTextChanged(Editable s)
  17.     {
  18.         search(s.toString());
  19.     }
  20. });
This is how the search method works.
  1. private void search(String text)
  2. {
  3.     selectedCountryList.clear();
  4.     // boolean needToAdd = true;
  5.     for (PickerItem country: allContactList)
  6.     {
  7.         if (country.getItemName()
  8.             .toLowerCase(Locale.ENGLISH)
  9.             .contains(text.toLowerCase()))
  10.         {
  11.             if (!selectedCountryList.contains(country))
  12.             {
  13.                 // needToAdd = false;
  14.                 selectedCountryList.add(country);
  15.             }
  16.         }
  17.     }
  18.     adapter.notifyDataSetChanged();
  19. }
For reading files from the raw folder we need to have this method.
  1. private static PickerList readFileAsString(Context context)
  2. throws java.io.IOException
  3. {
  4.     int id = R.raw.refered_by;
  5.     InputStream inputStream = context.getResources()
  6.         .openRawResource(
  7.             id);
  8.     BufferedReader reader = new BufferedReader(new InputStreamReader(
  9.         inputStream));
  10.     StringBuffer result = new StringBuffer();
  11.     String line;
  12.     while ((line = reader.readLine()) != null)
  13.     {
  14.         result.append(line);
  15.     }
  16.     reader.close();
  17.     Gson gson = new GsonBuilder()
  18.         .create();
  19.     return gson.fromJson(result.toString(), PickerList.class);
  20.     // return result.toString();
  21. }
This will return the values as model class.

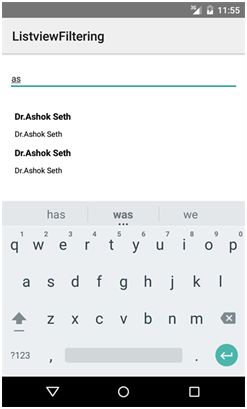

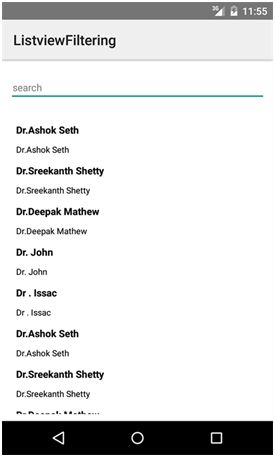

See the screen shots below,





Please find the source code also.
