ASP.NET

Send Image as System.IO.Stream thru WCF REST Service and Consume it in ASP.NET Website

Let’s go thru the code:

WCF Service:

Service1.svc.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Runtime.Serialization;
  5. using System.ServiceModel;
  6. using System.ServiceModel.Web;
  7. using System.Text;
  8. using System.IO;
  9. using System.Drawing;
  10. using System.Drawing.Imaging;
  11.
  12. namespace PhotoService {
  13.     public class Service1: IService1 {
  14.         //This method will be called by the application to get Thumbnail
  15.         public Stream GetThumbnail(string path) {
  16.             try {
  17.                 Image imgThumb = null;
  18.                 Image img = Image.FromFile("/\\" + path); //Path for Image Eg. http://localhost:35798/RestServiceImpl.svc/GetThumbnail///YourServer//Images//SampleImage.jpg
  19.                 imgThumb = CreateThumbnail(img, 100, 100);
  20.                 var stream = ToStream(imgThumb, ImageFormat.Jpeg);
  21.                 WebOperationContext.Current.OutgoingResponse.ContentType = "image/jpeg";
  22.                 return stream;
  23.             } catch (Exception ex) {
  24.                 throw ex;
  25.             }
  26.         }
  27.         //This method will generate thumbanail of 100 x 100
  28.         private Image CreateThumbnail(Image image, int thumbWidth, int thumbHeight) {
  29.             try {
  30.                 return image.GetThumbnailImage(
  31.                 thumbWidth,
  32.                 thumbHeight,
  33.                 delegate() {
  34.                     return false;
  35.                 },
  36.                 IntPtr.Zero);
  37.             } catch (Exception ex) {
  38.                 throw ex;
  39.             }
  40.         }
  41.         //Method to convert image in stream
  42.         public Stream ToStream(Image image, ImageFormat formaw) {
  43.             try {
  44.                 var stream = new System.IO.MemoryStream();
  45.                 image.Save(stream, formaw);
  46.                 stream.Position = 0;
  47.                 return stream;
  48.             } catch (Exception ex) {
  49.                 throw;
  50.             }
  51.         }
  52.     }
  53. }
IService1.cs
  1. using System;
  2. using System.Runtime.Serialization;
  3. using System.ServiceModel;
  4. using System.ServiceModel.Web;
  5. using System.IO;
  6. using System.Drawing;
  7. using System.Drawing.Imaging;
  8.
  9. namespace PhotoService {
  10.     [ServiceContract]
  11.     public interface IService1 {
  12.         [OperationContract]
  13.         [WebInvoke(Method = "GET", ResponseFormat = WebMessageFormat.Json, BodyStyle = WebMessageBodyStyle.Wrapped, UriTemplate = "GetThumbnail/{*path}")]
  14.         Stream GetThumbnail(string path);
  15.     }
  16. }

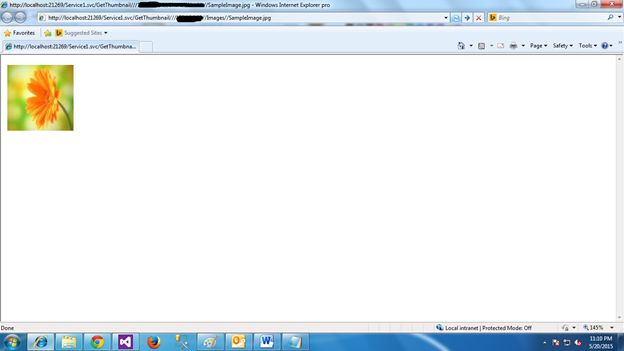

Run this service by this URL in browser

http://localhost:35798/RestServiceImpl.svc/GetThumbnail///YourServer//Images//SampleImage.jpg

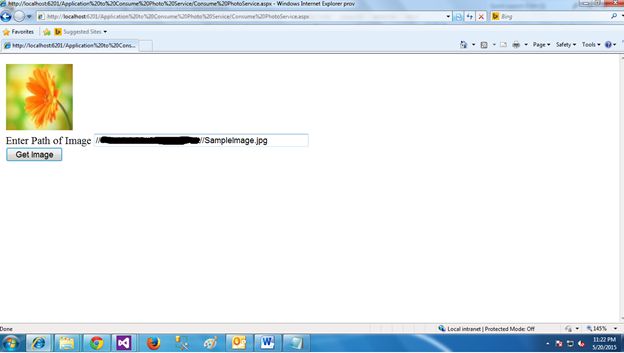

Figure 1 Service has been created, now creating website to consume this service:

Website

Default.aspx
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Consume PhotoService.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html>
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head runat="server">
  6.         <title></title>
  7.     </head>
  8.     <body>
  9.         <form id="form1" runat="server">
  10.             <div>
  11.                 <asp:Image ID="Image1" runat="server" />
  12.                 <br />
  13. Enter Path of Image
  14.
  15.                 <asp:TextBox ID="ImagePath" runat="server"></asp:TextBox>
  16.                 <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="ImagePath" ErrorMessage="Enter Image Path Eg. //Server//Images//SampleImage.jpg "></asp:RequiredFieldValidator>
  17.                 <br />
  18.                 <asp:Button ID="Button1" runat="server" OnClick="Button1_Click" Text="Get Image" />
  19.                 <br />
  20.             </div>
  21.         </form>
  22.     </body>
  23. </html>
Default.aspx.cs
  1. using System;
  2. using System.Linq;
  3. using System.Web;
  4. using System.Web.UI;
  5. using System.Web.UI.WebControls;
  6. using System.Runtime.Serialization;
  7. using System.Net;
  8. using System.IO;
  9.
  10. public partial class _Default: System.Web.UI.Page {
  11.     protected void Page_Load(object sender, EventArgs e) {
  12.         Image1.Visible = false;
  13.     }
  14.     protected void Button1_Click(object sender, EventArgs e) {
  15.         try {
  16.             string path = ImagePath.Text;
  17.             path.Trim();
  18.             if (path != null) {
  19.                 WebClient proxy = new WebClient();
  20.                 byte[] responsedata = proxy.DownloadData(new Uri("http://localhost:21269/Service1.svc/GetThumbnail/" + path)); //Accept path like: //YourServer//Images//SampleImage.jpg
  21.                 Stream stream = new MemoryStream(responsedata);
  22.                 System.Drawing.Image img = System.Drawing.Image.FromStream(stream);
  23.                 img.Save(Server.MapPath("~/Images/Test.jpg"));
  24.                 Image1.ImageUrl = "~/Images/Test.jpg";
  25.                 Image1.Visible = true;
  26.             } else {
  27.                 Response.Write("Enter Image Path Eg.//Server//Images//SampleImage.jpg");
  28.             }
  29.         } catch (Exception ex) {
  30.             Response.Write("Error : " + ex.Message.ToString());
  31.         }
  32.     }
  33. }


Thanks !!
