Setting Web Part Pane Properties On Button Click Event And When Other Web Part Properties Changes

Create client side Web part, using React Framework commands given below.

• Open command prompt
• md LoadButtonpocwebpart
• cd LoadButtonpocwebpart
• yo @microsoft/sharepoint- choose react framework
• run code . to open Visual studio code

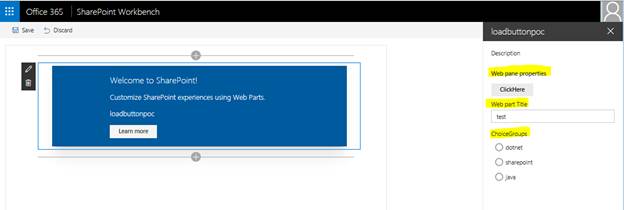

For this demo I have added a text field named WebpartTitle, button named ClickHere and a choicegroup field named ChoiceGroups.

• Add the Web part custom properties for these fields in manifest.json file.


  {
    "$schema": "../../../node_modules/@microsoft/sp-module-interfaces/lib/manifestSchemas/jsonSchemas/clientSideComponentManifestSchema.json",

    "id": "06cc821c-ca66-480a-aae2-33ae02f9c62f",
    "alias": "LoadbuttonpocWebPart",
    "componentType": "WebPart",
    "version": "0.0.1",
    "manifestVersion": 2,

    "preconfiguredEntries": [{
      "groupId": "06cc821c-ca66-480a-aae2-33ae02f9c62f",
      "group": { "default": "Under Development" },
      "title": { "default": "loadbuttonpoc" },
      "description": { "default": "test loading indicator functionality" },
      "officeFabricIconFontName": "Page",
      "properties": {
        "description": "loadbuttonpoc",
          "ClickHere":"java",
          "WebpartTitle":"test"

      }
    }]
  }

• Declare the properties in ts file.


  export interface ILoadbuttonpocWebPartProps
     {
         description: string;
        WebpartTitle:string;
         ChoiceGroups:string;
  }

• Definitions for the fields are added in the getPropertyPaneConfiguration() method in LoadButtonpocwebpart.ts file.


  protected getPropertyPaneConfiguration(): IPropertyPaneConfiguration {
      return {
        pages: [
          {
            header: {
              description: strings.PropertyPaneDescription
            },
            groups: [
              {
                groupName: "Web pane properties",
                groupFields: [

                  PropertyPaneButton('ClickHere',
                   {
                    text: "ClickHere",
                    buttonType: PropertyPaneButtonType.Normal,
                    onClick: this.ButtonClick.bind(this)
                   }),
                  PropertyPaneTextField('WebpartTitle', {
                    label: "Web part Title"
                  }),
                  PropertyPaneChoiceGroup('ChoiceGroups', {
                    label: 'ChoiceGroups',
                    options: [
                    { key: 'dotnet', text: 'dotnet' },
                    { key: 'sharepoint', text: 'sharepoint' },
                    { key: 'java', text: 'java' }
                    ]
                    }),
                ]
              }
            ]
          }
        ]
      };
    }

• Using onclick attribute in propertypanebutton, we are binding onclick method Buttonclick.

• We can call Buttonclick method with a parameter or without any parameter.
• Pass ‘this’ parameter to get the context of the Web part, else use this.buttonlclick().

• Here, I am setting the Web part title text field with a value called ‘updated’, when a button is clicked, so I am passing the Web part context to the onclick method.


  private ButtonClick(oldVal: any): any {
              this.properties.WebpartTitle="updated";
               return "test"
         }

• In the similar way, when choicegroup field values changes, we can set the Web part title field. For this functionality, we need to add onPropertyFieldChanged.

• When choicegroups field value changes, the Web part title field is set with the selected value.


  protected onPropertyPaneFieldChanged(propertyPath: string, oldValue: any, newValue: any): void {
                  if (propertyPath === 'ChoiceGroups' &&  newValue) {
              this.properties.WebpartTitle=newValue;
              }
                    }

Deploy and testing

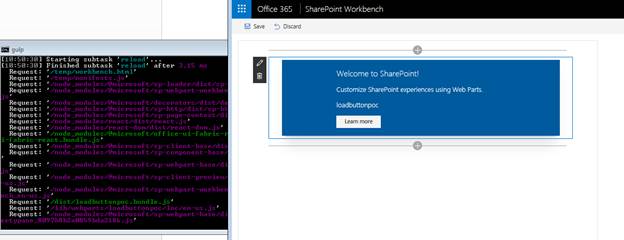

Save the file -> run Gulp serve->add the Web part in workbench.html -> edit the Web part properties.

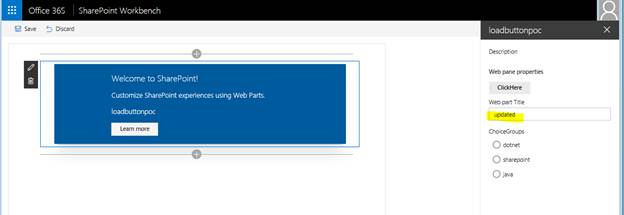

When click here button is clicked, the Web part title field value changes.



‘Updated’
this.properties.WebpartTitle=”updated”

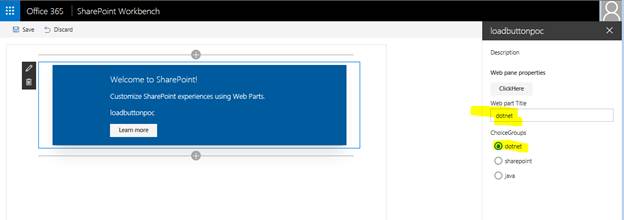

When choicegroups field value is selected as ‘dotnet’, same value is populated in the Web part title field.
