Xamarin Android: Create Android App Contact Picker and Send SMS

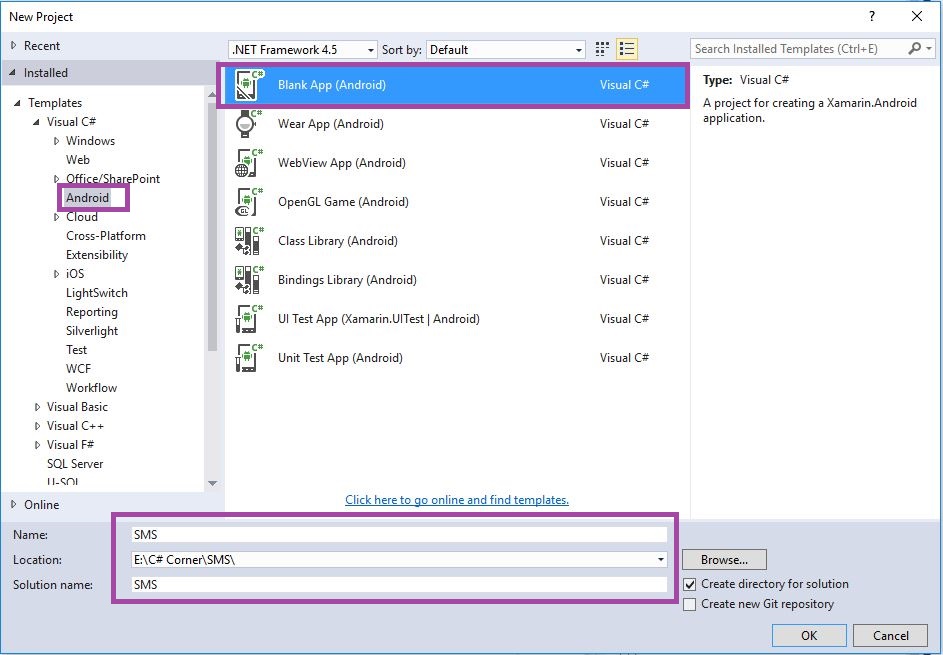

Step 1: Open Visual Studio, New Project, Templates, Visual C#, Android, then Blank App (Android).

Select Blank App. Then give Project Name and Project Location.

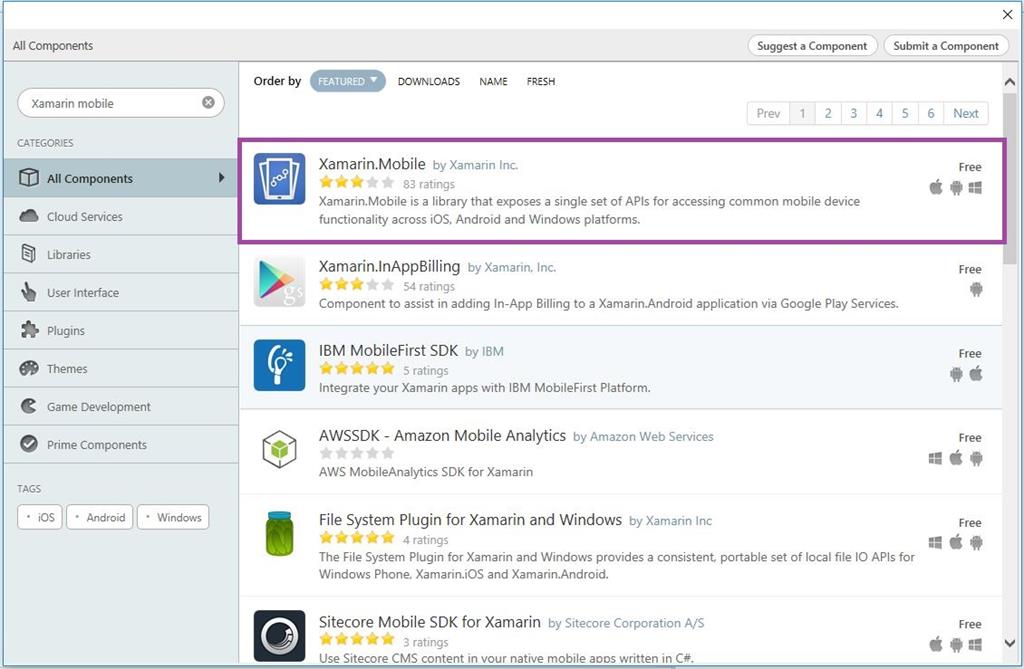

Step 2: Next go to Solution Explorer-> Project Name-> Components then Right Click to Get More Components then open new Dialog box. This dialog box to search the Xamarin.Mobile then Click Add App.

Step 3: Next to Open Solution Explorer, Project Name, Properties, AndroidManifest.xml Open the Xml page then give permission for READ_CONTACTS and SEND_SMS.

Step 4: Next to Open Solution Explorer, Project Name, Resources, layout, then Main.axml Click Open Design View and give the following code.

XML Code:

  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/lellayout" android:background="#3E4095">
  4.
  5.     <RelativeLayout android:orientation="horizontal" android:layout_width="match_parent" android:id="@+id/linearLayout3" android:layout_height="wrap_content">
  6.
  7.         <TextView android:text="TO" android:layout_width="wrap_content" android:layout_height="wrap_content" android:id="@+id/textView1" android:gravity="top" android:paddingTop="20dp" />
  8.
  9.         <EditText android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentRight="true" android:id="@+id/txtmobilenum" android:layout_marginLeft="20dp" android:layout_marginRight="35dp" />
  10.
  11.         <Button android:background="@drawable/addusergroup_48" android:layout_width="42.7dp" android:layout_alignParentRight="true" android:layout_height="wrap_content" android:id="@+id/btncontact" android:layout_marginLeft="20dp" android:layout_marginRight="2dp" />
  12.
  13.     </RelativeLayout>
  14.
  15.     <LinearLayout android:orientation="vertical" android:minWidth="25px" android:minHeight="25px" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_below="@id/linearLayout3" android:id="@+id/linearLayout6">
  16.
  17.         <EditText android:inputType="textMultiLine" android:layout_width="match_parent" android:layout_height="wrap_content" android:id="@+id/txtbodymsg" />
  18.
  19.     </LinearLayout>
  20.
  21.     <LinearLayout android:orientation="vertical" android:minWidth="25px" android:minHeight="25px" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_below="@id/linearLayout6" android:id="@+id/linearLayout7">
  22.
  23.         <TableLayout android:orientation="horizontal" android:layout_width="match_parent" android:layout_below="@id/linearLayout3" android:stretchColumns="*" android:layout_height="wrap_content" android:id="@+id/linearLayout5">
  24.
  25.             <TableRow android:minWidth="25px" android:minHeight="25px" android:layout_width="wrap_content" android:layout_height="match_parent" android:id="@+id/tableRow1">
  26.
  27.                 <Button android:text="Send" android:layout_width="wrap_content" android:layout_height="46.0dp" android:id="@+id/btnsmssend" android:layout_column="2" />
  28.
  29.             </TableRow>
  30.
  31.         </TableLayout>
  32.
  33.     </LinearLayout>
  34.
  35. </RelativeLayout>

Step 5: Next to Open Solution Explorer-> Project Name->MainActivity.cs.open c# Code Window. First give name space for using System.Linq;

Step 6: Next to declare Button and EditText Events and following to create Button Click Events.

C# Code:

  1. using System;
  2. using Android.App;
  3. using Android.Content;
  4. using Android.Runtime;
  5. using Android.Views;
  6. using Android.Widget;
  7. using Android.OS;
  8. using System.Linq;
  9. namespace SMS
  10. {
  11.     [Activity(Label = "SMS", MainLauncher = true, Icon = "@drawable/icon")]
  12.     public class MainActivity: Activity
  13.     {
  14.         Button btncontact;
  15.         Button btnsmssend;
  16.         EditText txtmobilenum;
  17.         EditText txtbodymsg;
  18.         protected override void OnCreate(Bundle bundle)
  19.         {
  20.             base.OnCreate(bundle);
  21.             // Set our view from the "main" layout resource
  22.             SetContentView(Resource.Layout.Main);
  23.             txtbodymsg = FindViewById < EditText > (Resource.Id.txtbodymsg);
  24.             txtmobilenum = FindViewById < EditText > (Resource.Id.txtmobilenum);
  25.             btncontact = FindViewById < Button > (Resource.Id.btncontact);
  26.             btnsmssend = FindViewById < Button > (Resource.Id.btnsmssend);
  27.             btncontact.Click += Btncontact_Click;
  28.             btnsmssend.Click += Btnsmssend_Click;
  29.         }
  30.     }
  31. }

Step 7: Next to Pick the Contact Number in Contact List.so here create Contact Picker Button Click Event and then its passing Intent Value in OnActivityResult().

C# Code:

  1. private void Btncontact_Click(object sender, EventArgs e)
  2. {
  3.     var contactPickerIntent = new Intent(Intent.ActionPick,
  4.         Android.Provider.ContactsContract.Contacts.ContentUri);
  5.     StartActivityForResult(contactPickerIntent, 101);
  6. }
  7. protected override void OnActivityResult(int requestCode, Result resultCode, Intent data)
  8. {
  9.     if (requestCode == 101 && resultCode == Result.Ok)
  10.     {
  11.         //Ensure we have data returned
  12.         if (data == null || data.Data == null)
  13.             return;
  14.         var addressBook = new Xamarin.Contacts.AddressBook(this);
  15.         addressBook.PreferContactAggregation = false;
  16.         //Load the contact via the android contact id
  17.         // in the last segment of the Uri returned by the
  18.         // android contact picker
  19.         var contact = addressBook.Load(data.Data.LastPathSegment);
  20.         //Use linq to find a mobile number
  21.         var mobile = (from p in contact.Phones
  22.             where
  23.             p.Type == Xamarin.Contacts.PhoneType.Mobile
  24.             select p.Number).FirstOrDefault();
  25.         //See if the contact has a mobile number
  26.         if (string.IsNullOrEmpty(mobile))
  27.         {
  28.             Toast.MakeText(this"No Mobile Number for contact!",
  29.                 ToastLength.Short).Show();
  30.             return;
  31.         }
  32.         txtmobilenum.Text = mobile;
  33.     }
  34. }

Step 8: Finally w Send the sms on given selected Number so here to create Send Button Event.

C# code:

  1. private void Btnsmssend_Click(object sender, EventArgs e)
  2. {
  3.     try
  4.     {
  5.         if (string.IsNullOrWhiteSpace(txtbodymsg.Text))
  6.         {
  7.             Toast.MakeText(this"SMS Text Body Is Empty", ToastLength.Long).Show();
  8.         }
  9.         else if (string.IsNullOrWhiteSpace(txtmobilenum.Text))
  10.         {
  11.             Toast.MakeText(this"Enter Mobile Number", ToastLength.Long).Show();
  12.         }
  13.         else
  14.         {
  15.             Toast.MakeText(this"Sending SMS... Please wait...", ToastLength.Short).Show();
  16.             //Send SMS!
  17.             var smsMgr = Android.Telephony.SmsManager.Default;
  18.             smsMgr.SendTextMessage(txtmobilenum.Text, null, txtbodymsg.Text, nullnull);
  19.             Toast.MakeText(this"SMS successfully sent", ToastLength.Short).Show();
  20.             txtbodymsg.Text = "";
  21.             txtmobilenum.Text = "";
  22.         }
  23.     }
  24.     catch (Exception ex)
  25.     {
  26.         Toast.MakeText(this, ex.ToString(), ToastLength.Short).Show();
  27.     }
  28. }

Step 9: Press F5 or Build and Run the Application.
