Xamarin.Forms: Content Page for XAML Controls

Step 1

Create a Xamarin.Forms project with Portable Class Library (PCL) as discussed in my previous article.

Step 2

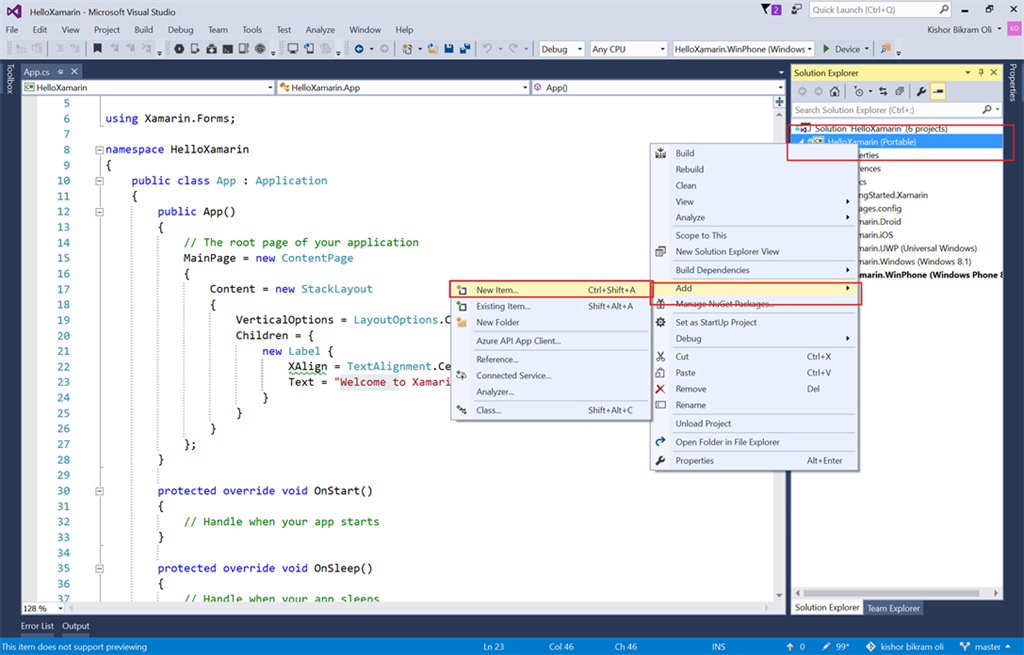

Now right click on the PCL project and Add > New Item,

new

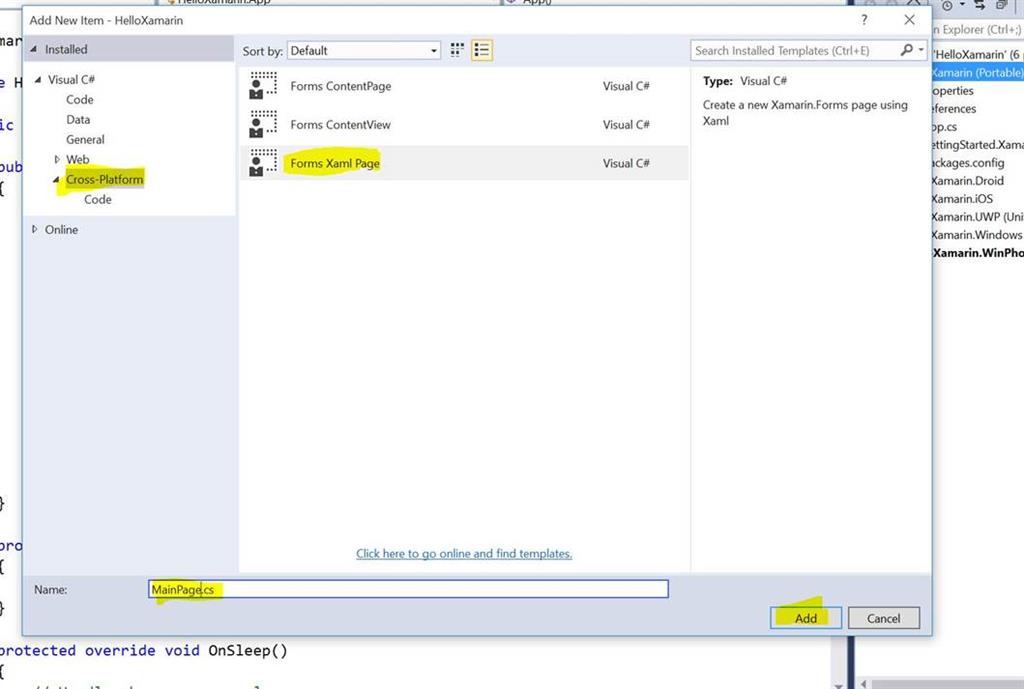

Inside the Cross-Platform, select Forms XAML Page and name it MainPage and click OK.

Forms

Step 3

Now in App.cs file, we call this MainPage inside the App constructor.

code

Step 4

In the MainPage.xaml, let's add Text Label and a Button with click event.

Complete Code

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              x:Class="HelloXamarin.MainPage">
  5.   <ContentPage.Content>
  6.     <StackLayout Padding="20">
  7.       <Label x:Name="msg" Text="Hello World" FontSize="40"></Label>
  8.     <Button Text="Click Me" BackgroundColor="Red" TextColor="White" Clicked="OnBtnClick"></Button>
  9.     </StackLayout>
  10.   </ContentPage.Content>
  11. </ContentPage>
Step 5

In the code behind MainPage.xaml.cs, we add click event of button,
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. using Xamarin.Forms;
  8.
  9. namespace HelloXamarin
  10. {
  11.     public partial class MainPage : ContentPage
  12.     {
  13.         public MainPage()
  14.         {
  15.             InitializeComponent();
  16.         }
  17.         public void OnBtnClick(object o, EventArgs e)
  18.         {
  19.             msg.Text = "This is Xamarin Forms Content Page";
  20.         }
  21.     }
  22. }
Step 6

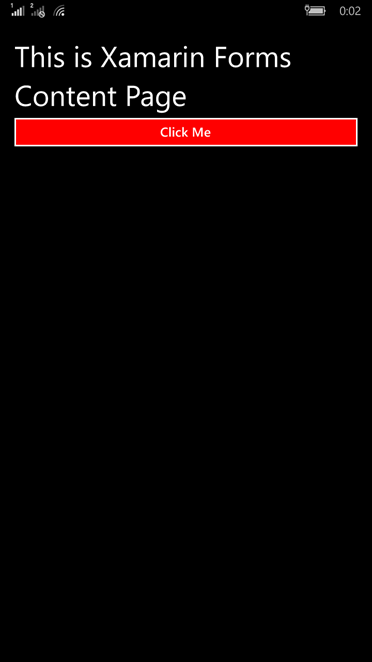

Now run the application in your Android emulator or Windows devices. When you click on button, you see the output as,

output
