SQL Server Schema Comparison in Visual Studio 2010


This article explains the new tool in visual studio 2010 which most of the users require seeing the comparison report of the 2 different database schema (say a development and a production db) in order to get the object that has been changed for the current releases.

In the market there are many third party tools available to overcome this process, but in Visual studio 2010 Microsoft has given the inbuilt functionality as a tool to compare the different schema so that the changes can be easily compared and synced in different environment based on the object difference. Microsoft Database server version has many features like database development, version controlling, unit testing, code analysis, code maintenance etc....

Types of Comparison options in Visual Studio 2010

Microsoft has provided different types of schema comparisons in Visual Studio 2010. The user has been given the option to compare the types listed below:

  • SQL Server database - Sql server 2008 or 2005 instance compare
  • Database project - a project which produces .dbschema file for sql server 2008 and 2005 instance
  • Server project - a project which produces .dbschema file for sql server 2008 and 2005 instance that contains definitions for server objects and objects in the 'master'
  • Data-tier application component (DAC) project - a project that produces a .dacpac file
  • .dbschema file - database or server project output
  • .dacpac file - data-tier application component (DAC) project output

Step by Step Process to Compare

Step 1:

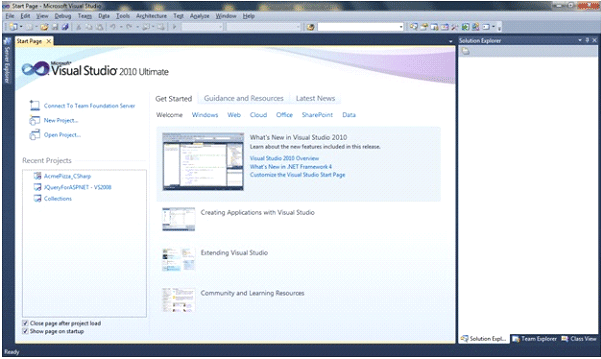

Open Visual studio 2010 by moving to Start a Program a Microsoft Visual Studio 2010 a Microsoft Visual Studio 2010.

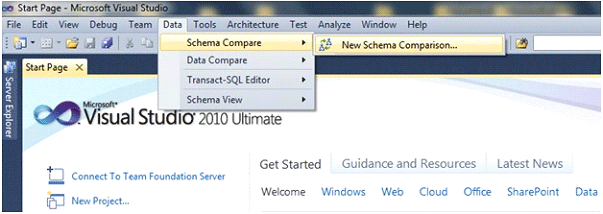

Step 2: Once Visual Studio is opened, go to Data a Schema Compare a New Schema Comparison

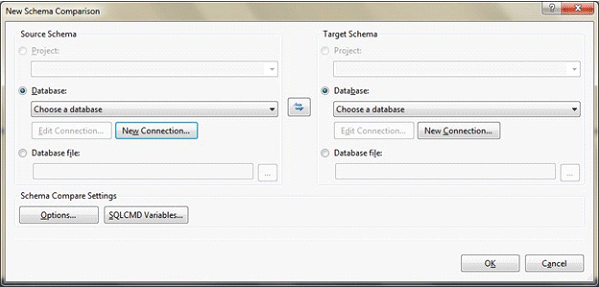

Step 3: You will see a dialog box which requests for the source and destination db and the properties to connect to those db servers as below.


Step 4: Choose the source and the destination DB servers which you want to compare with or you can select the database file .dbschema to compare with the source and the destination. Later on you can save these settings as .scmp file to use it later.

Step 5: Once you are done with the selection of source and the destination comparison object click on the OK button, it will take some time to get the comparison report based on the size of the data base and the objects to get compared.

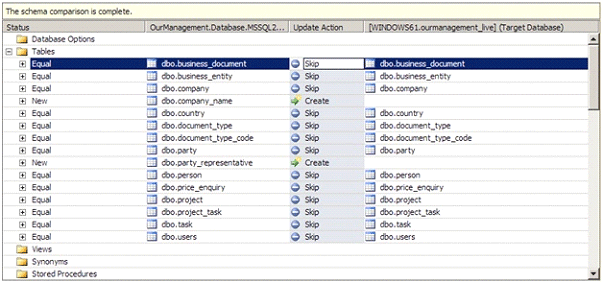

Step 6: Once the comparison is completed the following screen will pop up which gets the result in a new list view where we can see the difference between the objects whether the object is the same in both the environments, or changed in the environments etc. We can customize the view based on the requirement like, to see only the changed objects or same objects in both the schema.

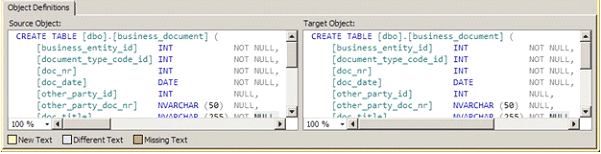

Step 7: You can see the detail result of the object changed in the following window of the list view as shown in the following image.


Step 8: You can customize the schema comparison setting by going to the settings Data à Schema Compare a Schema Compare options.

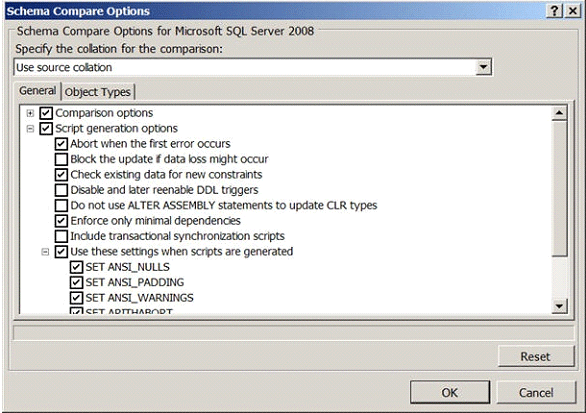

Step 9: The options available for the schema comparison can be seen in the following image.


Step 10: We can update the schema at the later stage by exporting to the file and save it by selecting Export to Editor Window as below.



In the market many third party tools are available to handle these tasks, but from the developer perspective to maintain the credibility of the application we can have a daily check to determine the objects impacted to ensure they are synchronized.
