Canvas.Left="8" Canvas.Top="8">
<StackPanel x:Name="itemSlider" RenderTransformOrigin="0.5,0.5" Orientation="Horizontal"
HorizontalAlignment="Left">
<StackPanel.RenderTransform>
<TransformGroup>
<ScaleTransform/>
<SkewTransform/>
<RotateTransform/>
<TranslateTransform/>
</TransformGroup>
</StackPanel.RenderTransform>
<Image Source="images/Creek.jpg" Stretch="Fill" x:Name="item2" HorizontalAlignment="Left"
Tag="draggable"
VerticalAlignment="Top"d:LayoutOverrides="HorizontalMargin"/>
<Image HorizontalAlignment="Left" x:Name="item1" Source="images/Autumn-Leaves.jpg" Stretch="Fill" Tag="draggable" VerticalAlignment="Top"/>
<Image Source="Images/Desert-Landscape.jpg" Stretch="Fill" x:Name="item3" Margin="10,0,0,0"
HorizontalAlignment="Left" Tag="draggable"VerticalAlignment="Top"/>
<Image Source="images/Forest-Flowers.jpg" Stretch="Fill" x:Name="item4" Margin="10,0,0,0"
HorizontalAlignment="Left" Tag="draggable"VerticalAlignment="Top"/>
</StackPanel>
<StackPanel x:Name="DragToStackPanel" HorizontalAlignment="Left" Background="#FFEED6D6"
Height="300" Width="830" Orientation="Horizontal"/>
</Canvas>
</Canvas>

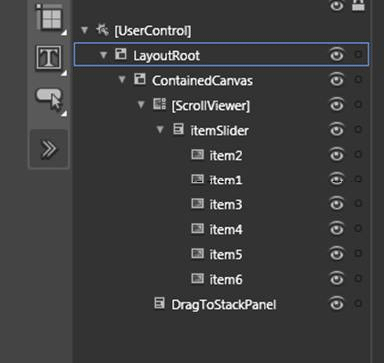

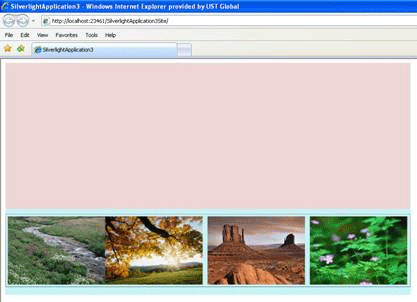

Now you have the look of the application.
Next is the real interesting part the code behind that makes the whole thing possible.
Note: Please note that all the draggable controls are tagged as "draggable"
Code Behind
The methods to be noted in each event
| Event |
Method |
Functionality |
Return |
| MouseLeftButtonDown |
CaptureMouse |
Sets mouse capture to a System.Windows.UIElement. |
Returns true if the object has mouse capture; otherwise, returns false. |
| MouseMove |
No specific method of the UI element related to this event but keeps track of the position of the mouse |
| MouseLeftButtonUp |
ReleaseMouseCapture |
Removes mouse capture from a System.Windows.UIElement. |
After this call, typically no object holds mouse capture. |
Now let us see each event in detail.
MouseLeftButtonDown
public void objFrameworkElement_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
{
//Start Drag
FrameworkElement objFrameworkElement = (FrameworkElement)sender;
objFrameworkElement.CaptureMouse();
// Set the starting point for the drag
StartingDragPoint = e.GetPosition(objFrameworkElement);
// Remove the element from it's control and move it to the parent
// if it's Tag contains the words [draggable]
if (objFrameworkElement.Tag.ToString().Contains("draggable"))
{
ContainingParent = objFrameworkElement.Parent as Panel;
ContainingParent.Children.Remove(objFrameworkElement);
this.LayoutRoot.Children.Add(objFrameworkElement);
UpdateElementPosition(objFrameworkElement, e.GetPosition(this.LayoutRoot));
}
objFrameworkElement.MouseMove += new MouseEventHandler(objFrameworkElement_MouseMove);
objFrameworkElement.MouseLeftButtonUp += new MouseButtonEventHandler(objFrameworkElement_MouseLeftButtonUp);
}
MouseMove
void objFrameworkElement_MouseMove(object sender, MouseEventArgs e)
{
FrameworkElement objFrameworkElement = (FrameworkElement)sender;
Canvas objCanvas = (Canvas)objFrameworkElement.Parent;
Point Point = e.GetPosition(objCanvas);
UpdateElementPosition(objFrameworkElement, Point);
}
Update-element-position method
private void UpdateElementPosition(FrameworkElement objFrameworkElement, Point Point)
{
Canvas.SetLeft(objFrameworkElement, Point.X - StartingDragPoint.X);
Canvas.SetTop(objFrameworkElement, Point.Y - StartingDragPoint.Y); }
MouseLeftButtonUp
void objFrameworkElement_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
{
//Stop Drag
FrameworkElement objFrameworkElement = (FrameworkElement)sender;
objFrameworkElement.ReleaseMouseCapture();
objFrameworkElement.Width=300;
objFrameworkElement.Height=300;
objFrameworkElement.MouseMove -=
new MouseEventHandler(objFrameworkElement_MouseMove);
objFrameworkElement.MouseLeftButtonUp -=
new MouseButtonEventHandler(objFrameworkElement_MouseLeftButtonUp);
// If it is an element marked [draggable]
// try to drop it on a panel stored in the colPanels collection
if (objFrameworkElement.Tag.ToString().Contains("draggable"))
{
if (ContainingParent == itemSlider)
{
DraggedToParent = DragToStackPanel;
objFrameworkElement.Width = 300;
objFrameworkElement.Height = 300;
}
else
{
DraggedToParent = itemSlider;
objFrameworkElement.Width = 200;
objFrameworkElement.Height = 150;
}
// Grab the position of the element being dragged in relation to it's position on the
// main canvas and it's position in relation to the panel it may be dropped on
Point mousePos1 = e.GetPosition(DraggedToParent);
Point mousePos2 = e.GetPosition(objFrameworkElement);
// Remove the element from the main canvas
this.LayoutRoot.Children.Remove(objFrameworkElement);
DraggedToParent.Children.Add(objFrameworkElement);
Canvas.SetLeft(objFrameworkElement, mousePos1.X - mousePos2.X);
Canvas.SetTop(objFrameworkElement, mousePos1.Y - mousePos2.Y);
}
}
By implementing these we can achieve the dragging of a UI element into a different panel.
Happy Coding!
