Provider Hosted MVC App With AngularJS In SharePoint - Part 3

This article is continuation of Part-1 & Part-2.

• Provider Hosted MVC App With AngularJS in Sharepoint - Part 1
• Provider Hosted MVC App With AngularJS in SharePoint - Part 2

Let's start with Provider Hosted MVC App with AngularJS - Part 3. In this part we are going to create dynamic TileView using CSS and AngularJS.

SharePoint HostWeb List Structure

The following is a list structure which we are referencing for our application.

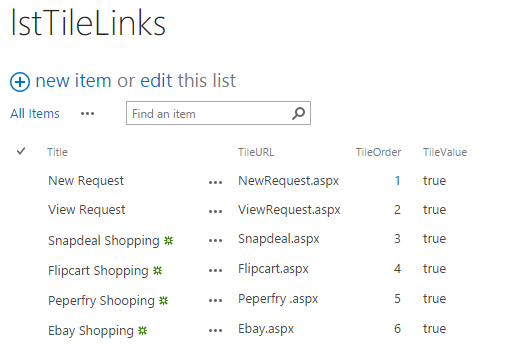

Figure 1: App

We are going to create the following UI Design and final output format.

UI Change

In top navigation bar new option added to show tileview i.e. TileView.



Figure 2: Tile

Output



Figure 3: output

Solution Changes in term of new controller, view , javascript and CSS files.

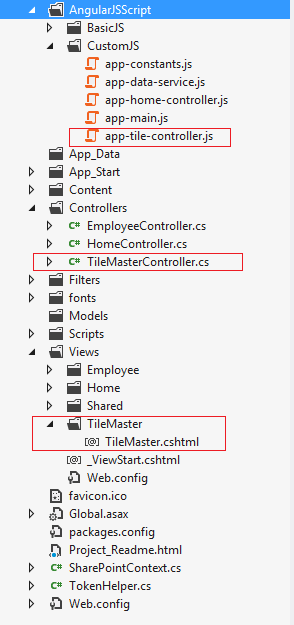

Figure 4: Solution

Let's start with service layer coding to fetch list data.

Step 1: Session Management in AngularJS

When we navigate from one page to another page, we need ' hostweburl ' & ' appweburl ' URL values to access SharePoint site data, so we need to save those values in session to access on another page.

There are two ways to save data in session - sessionStorage & localStorage.

var hostweburl;
var appweburl;

//The SharePoint App where the App is actualy installed
hostweburl = decodeURIComponent(QueryStringParameter('SPHostUrl'));

//The App web where the component to be accessed by the app are deployed
appweburl = decodeURIComponent(QueryStringParameter('SPAppWebUrl'));

var Sessionhostweburl = sessionStorage.getItem("hostweburl");
var Sessionappweburl = sessionStorage.getItem("appweburl");

if (Sessionhostweburl == null || Sessionappweburl == null)
{
    sessionStorage.setItem("hostweburl", hostweburl);
    sessionStorage.setItem("appweburl", appweburl);
}

if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
{
    hostweburl = sessionStorage.getItem("hostweburl");
    appweburl = sessionStorage.getItem("appweburl");
}

console.log("hostweburl : " + hostweburl);
console.log("appweburl : " + appweburl);

app-data-service.js

New service layer method to get SharePoint List data in order to create TileView.

this.getTileData = function()
{

    var TileArray = [];

    var deferred = $q.defer();

    // Load 15hives js files and continue to the successHandler
    $.getScript(scriptbase + "SP.Runtime.js",

    function()
    {
        $.getScript(scriptbase + "SP.js",

        function()
        {
            $.getScript(scriptbase + "SP.RequestExecutor.js",

            function()
            {

                //Represents the context for objects and operations.
                var context = new SP.ClientContext(appweburl);

                //Access host web from app using JavaScript CSOM
                var factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
                context.set_webRequestExecutorFactory(factory);

                var appContextSite = new SP.AppContextSite(context, hostweburl);
                var web = appContextSite.get_web();
                context.load(web);

                //Access HostWeb List
                var list = web.get_lists().getByTitle('lstTileLinks');

                var camlQuery = SP.CamlQuery.createAllItemsQuery();
                this.listItems = list.getItems(camlQuery);
                context.load(this.listItems);

                context.executeQueryAsync(
                Function.createDelegate(this, function()
                {

                    var ListEnumerator = this.listItems.getEnumerator();

                    while (ListEnumerator.moveNext())
                    {

                        var currentItem = ListEnumerator.get_current();
                        TileArray.push({
                            ID: currentItem.get_item('ID'),
                            Title: currentItem.get_item('Title'),
                            TileURL: currentItem.get_item('TileURL')
                        });
                    }

                    console.log(TileArray);
                    deferred.resolve(TileArray);
                }),
                Function.createDelegate(this, function(sender, args) {
                    deferred.reject('Request failed. ' + args.get_message());
                    console.log("Error : " + args.get_stackTrace());
                }));
            });
        });
    });

    return deferred.promise;
}; // Get

app-tile-controller.js

New controller added into solution for TileView creation.

(function()
{

    console.log('app-tile-controller.js loaded ..');
    'use strict'

    angular.module(window.AngularApp_constants.architecture.modules.MainApp.moduleKey)
        .controller('TileController', HomeController)

    HomeController.$inject = ['$scope', '$location', 'app-data-service'];

    function HomeController($scope, $location, AngularDataService)
    {

        /********* Fill Tile *********/
        $scope.TileMaster = [];

        LoadTileData();

        function LoadTileData()
        {

            console.log("LoadTileData called");

            var promiseGet = AngularDataService.getTileData();
            promiseGet.then(function(resp)
            {
                $scope.TileMaster = resp;
            },
            function(err)
            {
                $scope.Message = "Error " + err.status;
                console.log($scope.Message);
            });
        }
    }

})();

TileMasterController

New controller added into solution for tile creation.

public class TileMasterController: Controller
{
    // GET: TileMaster
    public ActionResult TileMaster()
    {
        return View();
    }
}

TileMaster.cshtml

@{
ViewBag.Title = "Home Page";
}
<!-- Javascript from hives Layout folder -->
<script type="text/javascript" src="/_layouts/15/sp.runtime.js"></script>
<script type="text/javascript" src="/_layouts/15/sp.js"></script>
<script type="text/ecmascript" src="/_layouts/SP.Core.js"></script>
<script type="text/javascript" src="https://ajax.aspnetcdn.com/ajax/4.0/1/MicrosoftAjax.js"></script>
<!-- Basic JS Files -->
<script src="~/AngularJSScript/BasicJS/angular.min.js"></script>
<script src="~/AngularJSScript/BasicJS/trNgGrid.js"></script>
<script src="~/AngularJSScript/BasicJS/angular-messages.js"></script>
<!-- Custom JS Files -->
<script src="~/AngularJSScript/CustomJS/app-constants.js"></script>
<script src="~/AngularJSScript/CustomJS/app-main.js"></script>
<script src="~/AngularJSScript/CustomJS/app-data-service.js"></script>
<script src="~/AngularJSScript/CustomJS/app-tile-controller.js"></script>
<link href="~/Content/TileBranding.css" rel="stylesheet" />
<div ng-app="AngularApp">
    <div ng-controller="TileController">
        <br />
        <br />
        <ul>
            <li ng-repeat="Tile in TileMaster">
                <div class="ActiveTile">
                    <div class="TileHeading">
                        <a href="{{ Tile.TileURL }}" target="_blank">{{ Tile.Title }} </a>
                    </div>
                </div>
            </li>
        </ul>
    </div>
</div>

TileBranding.css

.ActiveTile {
    display: inline-block;
    position: relative;
    width: 250px;
    height: 150px;
    /*background: #ccffcc;*/
    background-color: rgb(0, 179, 125);
    z-index: 0;
    margin: 15px 40px 2px -2px;
    transition: all .15s ease-in-out;
}

    .ActiveTile:hover {
        /*background: #9CC;*/
        background-color: #00CC66;
        z-index: 100;
        /*transform: scale(1.2,1.2);*/
        box-shadow: 0 5px 10px 0 rgba(0,0,0,.2);
    }

.TileHeading {
    color: powderblue;
    font-size:20px;
    margin: 63px 10px 10px 60px;
}
/************************************/

ul, li {
    list-style: none;
    margin: 0;
    padding: 0;
    display: inline;
}

a {
    display: block;
    width: 100%;
    height: 100%;
    text-decoration: none !important;
    color: white;
    font-size: 18px;
}

I hope you all liked this article as you liked the Part 1 and Part 2 of the series..

Thank you!
