BCS Using SQL Server in SharePoint 2013

Business Connectivity Services (BCS) provides the centralized infrastructure that enables SharePoint 2013 and Office 2013 to get data from those external systems into a central system.

The following is a step-by-step description of how to connect with a SQL Server External data source.

Step 1

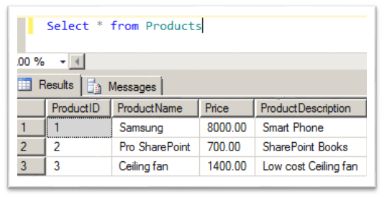

Create a database (say Mydeal) and Product table as in the following:



Step 2

Open SharePoint Designer 2013.



Step 3

Connect to your site.



Step 4

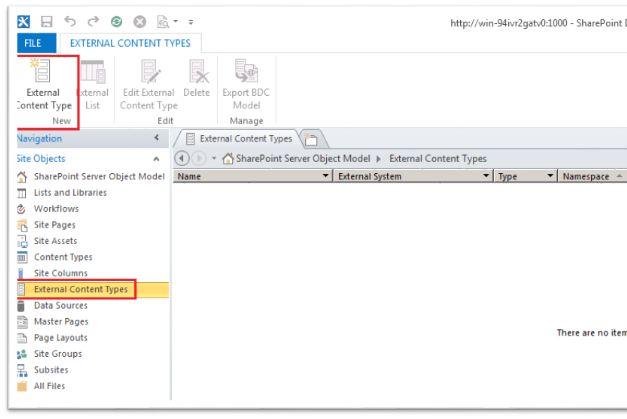

Select External Content type.

Step 5

Click on the External Content type in the ribbon.



Step 6

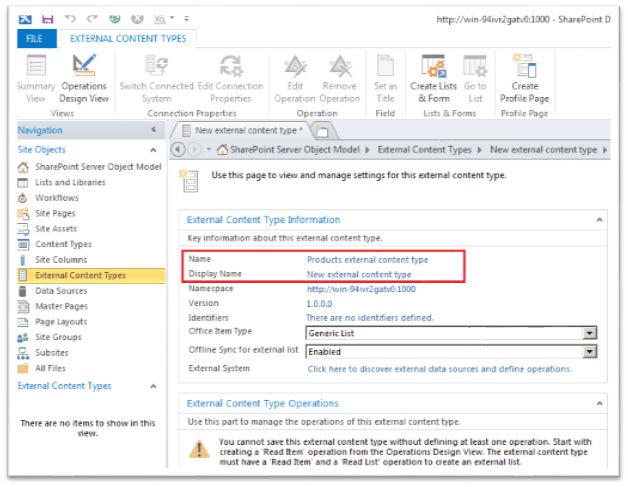

In this window the external content type will open in the “Summary view”. Here you have the option to click and change the “Name” .



Step 7

Next we need to create the new external content type. Click on the hyperlink ”Click here to discover external data sources and define operations”.

Step 8

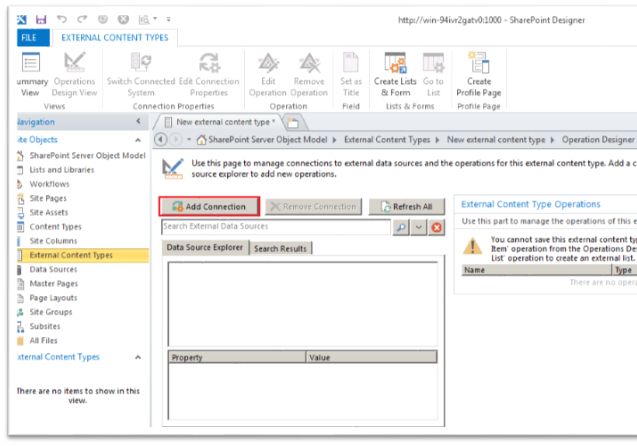

Click on the “Add Connection” button to create a new connection.



Step 9

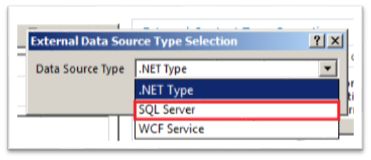

We have three options, either to select .NET type, SQL Server or WCF Service. Select SQL Server for connecting to a SQL Server Database table.



Step 10

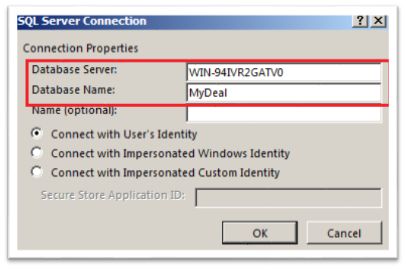

Provide the SQL Server Credentials and click the button “OK”.



Step 11

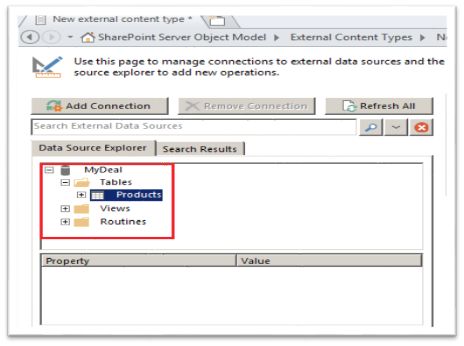

Now we can see all the tables and views from the selected database.



Step 12

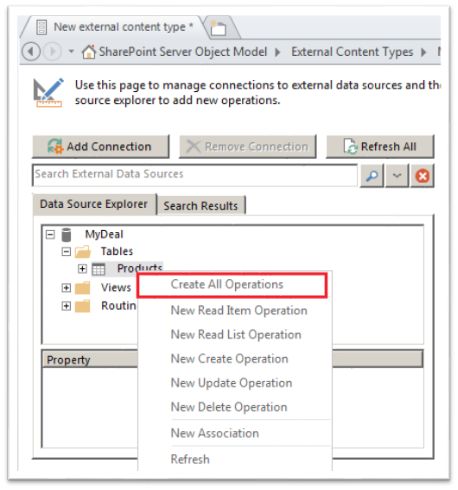

Now we have options to create various types of operations against the selected table. In our scenario since we need to perform all the operations. Select “create all operations”.



Step 13

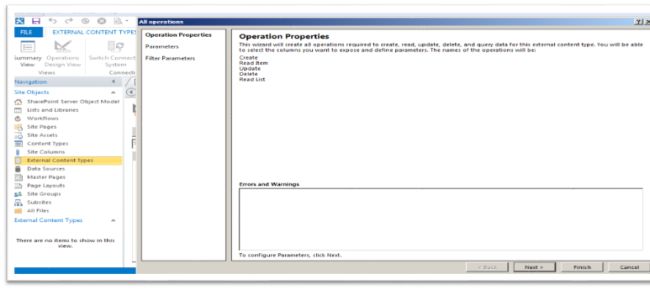

Click Next.



Step 14

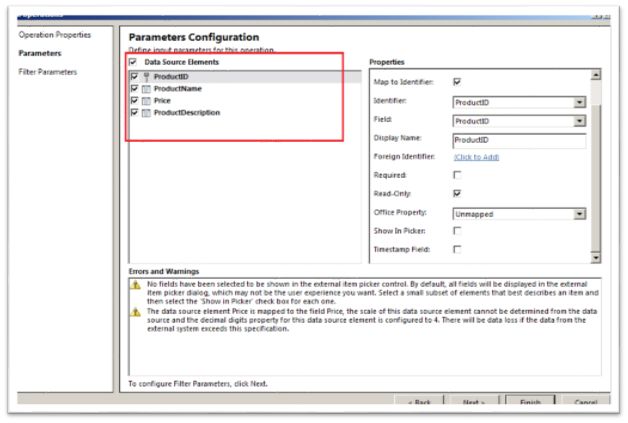

Select parameters configuration and other settings as in the following.



Step 15

Click the Next button.

Step 16

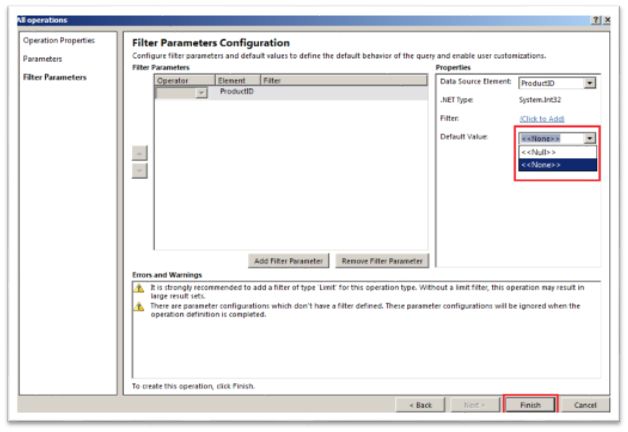

Do the filter parameter configuration and click the Finish button.



Step 17

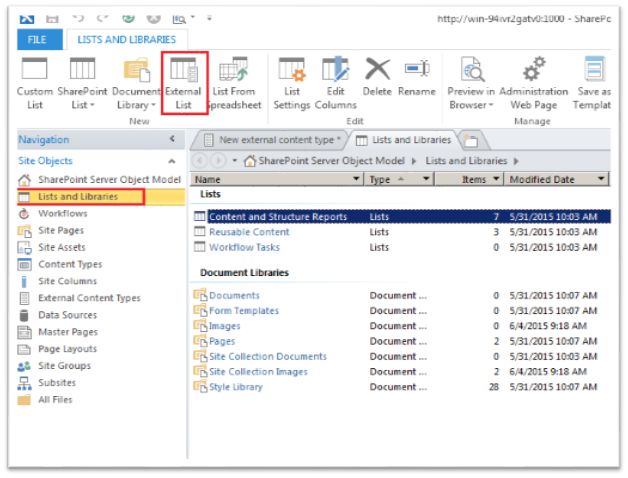

Now we need to add the new external list. So, click LIST AND LIBRARIES and select External List as in the following.



Step 18

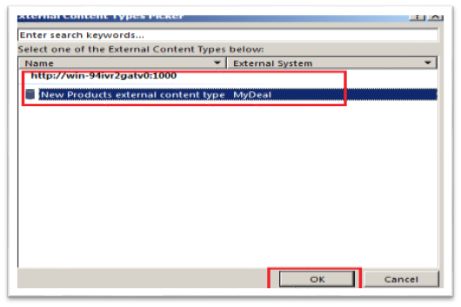

Select the site, external content type and click the button “OK”.



Step 19

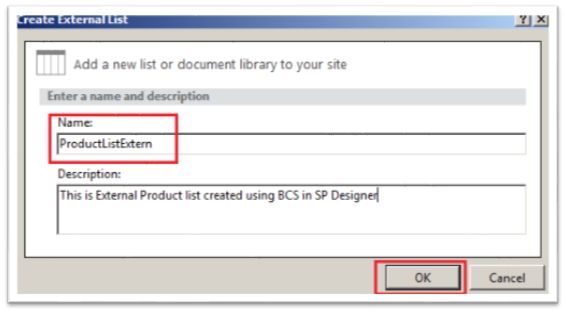

Enter the list name, description and click the button ”OK”.



Step 20

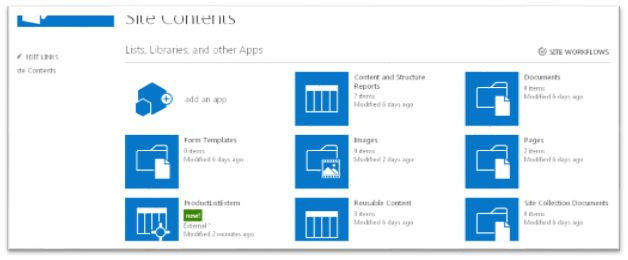

Go to the site and select all the site contents. The External list will be visible there.



Step 21

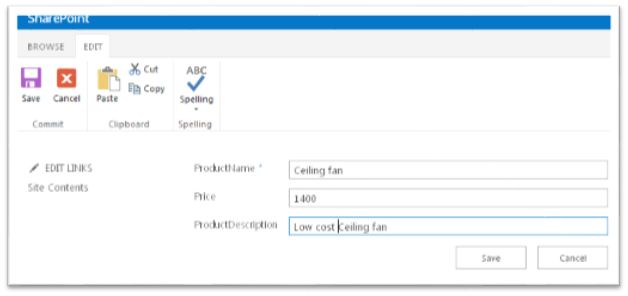

Open the list and make a new entry.



Step 22

Verify the entry in the back end (SQL Server).



Note

You may encounter permission issues after the completion of the preceding procedure. In this case you need to set the permission for the external list. Go to the SharePoint Central Admin -> Manage Service Application -> Business Data Connectivity Services and select the newly created external content type from the list to set permission.
