Drawing A 3D Scene Using OpenGL in C/C++

  • WhatsApp
  • Pritam Zope
  • 7y
  • 12.4k
  • 0
  • 3
    • 100
  • Article
3D_GameScene_OpenGL.zip

,


Introduction

We have already applied textures to objects in the  following article.
  • 3D Planetary System In OpenGL
Here, we will just draw some scene using QUADS. First, configure Visual Studio for glut. Read the following article to configure Visual Studio for glut and to get started with OpenGL.
  • Getting Started with OpenGL In Visual C++
For applying textures, we need textures image (256*256) 24 bit bitmap files.

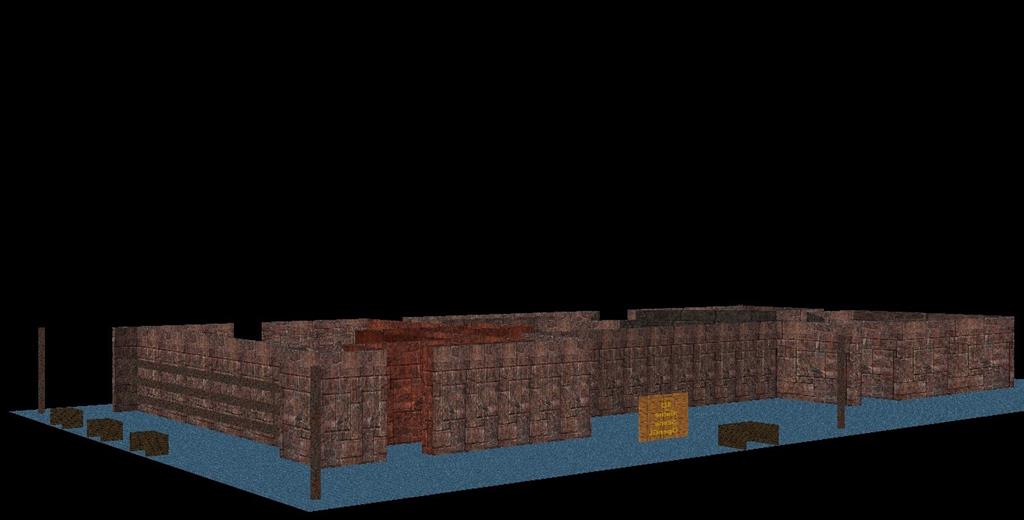

Here's the scene graph image that I have drawn.


Coding

I have created the following files in the project.
  • 3D_GameScene_OpenGL.cpp
  • DisplayScene.h
  • DisplayScene.cpp
  • LoadImageFile.h
  • LoadImageFile.cpp
  • DrawScene.h
  • DrawScene.cpp
3D_GameScene_OpenGL.cpp

This is the main source file where I have defined a main() function.

DisplayScene.cpp

In this file, I have used a switch case statement to draw scenes by providing different texture image files as arguments to it. I have declared class and data in DisplayScene.h header file.

LoadImageFile.cpp

This file contains a function that applies the texture to the drawn objects.

DrawScene.cpp

In this file, I have drawn a scene or defined the function which are declared in DrawScene.h header file.

See the code defined in the above files.

DisplayScene.h
  1. #ifndef _DISPLAYSCENE_H
  2. #define _DISPLAYSCENE_H
  3.
  4. //define different textures values from 1 to 8
  5. enum MyTextures
  6. {
  7.     DEFAULT = 0x01,
  8.     ANIMATION=0x02,
  9.     BUILDINGS=0x03,
  10.     HORROR=0x04,
  11.     GREENY=0x05,
  12.     WOODS=0x06,
  13.     ROCKS=0x07,
  14.     CIRCUIT=0x08
  15. };
  16.
  17.
  18. //class to display whole scene
  19. class DisplayGameScene
  20. {
  21. public:
  22.     //define function to display a whole scene
  23.     //first int is texture int
  24.     //second int is used for where to show Roof or not
  25.     //third BOOL is used to whether show outerwall or not
  26.     static void DisplayTexturedGameScene(int,int,BOOL);
  27. };
  28.
  29.
  30.
  31. #endif
DisplayScene.cpp
  1. #include"LoadImageFile.h"
  2.
  3. #include"DrawScene.h"
  4.
  5. #include"DisplayScene.h"
  6.
  7.
  8. //define function from class DisplayGameScene()
  9. //call all function which wants to draw from class GameScene
  10. void DisplayGameScene::DisplayTexturedGameScene(int type,int rooftype,BOOL outerwall)
  11. {
  12.     switch (type)
  13.     {
  14.         GameScene gs;
  15.
  16.     case DEFAULT :
  17.
  18.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/plain2.bmp"), outerwall);
  19.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"));
  20.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"), LoadTexture::LoadTextureImageFile("textures/blocks2.bmp"));
  21.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"), LoadTexture::LoadTextureImageFile("textures/blocks2.bmp"));
  22.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"), LoadTexture::LoadTextureImageFile("textures/blocks2.bmp"));
  23.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"), LoadTexture::LoadTextureImageFile("textures/blocks2.bmp"));
  24.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/plain.bmp"), rooftype,2.0);
  25.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/blocks3.bmp"), 6.0);
  26.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/plain.bmp"));
  27.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"));
  28.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  29.
  30.         break;
  31.
  32.     case ANIMATION :
  33.
  34.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/blocks4.bmp"), outerwall);
  35.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/blocks5.bmp"));
  36.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/blocks7.bmp"), LoadTexture::LoadTextureImageFile("textures/cartoon1.bmp"));
  37.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/blocks7.bmp"), LoadTexture::LoadTextureImageFile("textures/cartoon2.bmp"));
  38.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/blocks5.bmp"), LoadTexture::LoadTextureImageFile("textures/cartoon3.bmp"));
  39.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/blocks5.bmp"), LoadTexture::LoadTextureImageFile("textures/cartoon4.bmp"));
  40.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/blocks5.bmp"), rooftype,0.5);
  41.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/blocks5.bmp"), 0.5);
  42.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/blocks7.bmp"));
  43.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/blocks7.bmp"));
  44.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  45.
  46.         break;
  47.
  48.
  49.     case BUILDINGS :
  50.
  51.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/metal.bmp"), outerwall);
  52.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/building.bmp"));
  53.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/building.bmp"), LoadTexture::LoadTextureImageFile("textures/building.bmp"));
  54.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/building.bmp"), LoadTexture::LoadTextureImageFile("textures/building.bmp"));
  55.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/blocks9.bmp"), LoadTexture::LoadTextureImageFile("textures/building.bmp"));
  56.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/blocks9.bmp"), LoadTexture::LoadTextureImageFile("textures/building.bmp"));
  57.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/plain2.bmp"), rooftype,2.0);
  58.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/blocks8.bmp"), 1.0);
  59.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"));
  60.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  61.
  62.         break;
  63.
  64.
  65.     case HORROR :
  66.
  67.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/horror2.bmp"), outerwall);
  68.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/horror1.bmp"));
  69.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/horror4.bmp"), LoadTexture::LoadTextureImageFile("textures/horrorbabies.bmp"));
  70.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/horror1.bmp"), LoadTexture::LoadTextureImageFile("textures/horrorbabies.bmp"));
  71.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/skull2.bmp"), LoadTexture::LoadTextureImageFile("textures/horrorbabies.bmp"));
  72.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/skull2.bmp"), LoadTexture::LoadTextureImageFile("textures/horrorbabies.bmp"));
  73.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"), rooftype,1.0);
  74.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/horror_floor.bmp"), 1.0);
  75.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/horror3.bmp"));
  76.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/skull2.bmp"));
  77.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  78.
  79.         break;
  80.
  81.     case GREENY :
  82.
  83.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/beans.bmp"), outerwall);
  84.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/grass2.bmp"));
  85.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/leaves.bmp"), LoadTexture::LoadTextureImageFile("textures/green5.bmp"));
  86.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/leaves.bmp"), LoadTexture::LoadTextureImageFile("textures/green5.bmp"));
  87.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/grass2.bmp"), LoadTexture::LoadTextureImageFile("textures/green5.bmp"));
  88.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/grass2.bmp"), LoadTexture::LoadTextureImageFile("textures/green5.bmp"));
  89.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/grass.bmp"), rooftype,1.0);
  90.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/grass.bmp"), 1.0);
  91.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/leaves.bmp"));
  92.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/sky001.bmp"));
  93.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  94.
  95.         break;
  96.
  97.     case WOODS :
  98.
  99.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/plain.bmp"), outerwall);
  100.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"));
  101.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"), LoadTexture::LoadTextureImageFile("textures/plainwood.bmp"));
  102.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"), LoadTexture::LoadTextureImageFile("textures/plainwood.bmp"));
  103.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"), LoadTexture::LoadTextureImageFile("textures/plainwood.bmp"));
  104.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/roughwood.bmp"), LoadTexture::LoadTextureImageFile("textures/plainwood.bmp"));
  105.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/plain2.bmp"), rooftype,1.0);
  106.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/blocks8.bmp"), 1.0);
  107.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/plainwood.bmp"));
  108.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/wood2.bmp"));
  109.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  110.
  111.         break;
  112.
  113.     case ROCKS :
  114.
  115.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/blocks8.bmp"), outerwall);
  116.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/rocks.bmp"));
  117.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/rocks2.bmp"), LoadTexture::LoadTextureImageFile("textures/rocks.bmp"));
  118.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/rocks2.bmp"), LoadTexture::LoadTextureImageFile("textures/rocks.bmp"));
  119.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/rocks.bmp"), LoadTexture::LoadTextureImageFile("textures/rocks2.bmp"));
  120.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/rocks.bmp"), LoadTexture::LoadTextureImageFile("textures/rocks2.bmp"));
  121.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/plain2.bmp"), rooftype,1.0);
  122.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/blocks9.bmp"), 1.0);
  123.         gs.Draw_Pipes(LoadTexture::LoadTextureImageFile("textures/blocks9.bmp"));
  124.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/blocks.bmp"));
  125.         gs.Display_Text(LoadTexture::LoadTextureImageFile("textures/text.bmp"));
  126.
  127.         break;
  128.

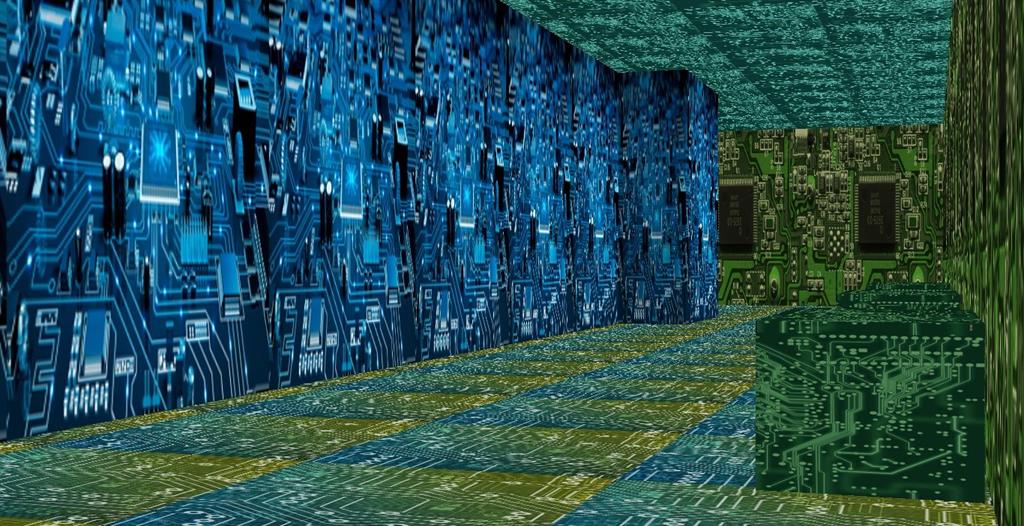

  129.     case CIRCUIT:
  130.
  131.         gs.Draw_OuterWall(LoadTexture::LoadTextureImageFile("textures/circuitboard3.bmp"), outerwall);
  132.         gs.Draw_InnerRoom_1(LoadTexture::LoadTextureImageFile("textures/circuitboard4.bmp"));
  133.         gs.Draw_InnerRoom_2(LoadTexture::LoadTextureImageFile("textures/circuitboard2.bmp"), LoadTexture::LoadTextureImageFile("textures/circuitboard6.bmp"));
  134.         gs.Draw_InnerRoom_3(LoadTexture::LoadTextureImageFile("textures/circuitboard5.bmp"), LoadTexture::LoadTextureImageFile("textures/circuitboard6.bmp"));
  135.         gs.Draw_InnerRoom_4(LoadTexture::LoadTextureImageFile("textures/circuitboard4.bmp"), LoadTexture::LoadTextureImageFile("textures/circuitboard6.bmp"));
  136.         gs.Draw_InnerRoom_5(LoadTexture::LoadTextureImageFile("textures/circuitboard4.bmp"), LoadTexture::LoadTextureImageFile("textures/circuitboard6.bmp"));
  137.         gs.Draw_Roof(LoadTexture::LoadTextureImageFile("textures/circuitboard5.bmp"), rooftype, 1.0);
  138.         gs.Draw_Floor(LoadTexture::LoadTextureImageFile("textures/circuit.bmp"), 1.0);
  139.         gs.Draw_WoodBoxes(LoadTexture::LoadTextureImageFile("textures/circuitboard5.bmp"));
  140.
  141.         break;
  142.     }
  143. }
LoadImageFile.h
  1. #ifndef _LOADIMAGEFILE_H
  2. #define _LOADIMAGEFILE_H
  3.
  4. #include<Windows.h>
  5. #include<stdio.h>
  6. #include<gl/GL.h>
  7. #include<GL/GLU.h>
  8. #include<gl/glut.h>
  9. #include<stdio.h>
  10. #include<math.h>
  11.
  12.
  13. class LoadTexture
  14. {
  15. public :
  16.     static GLuint LoadTextureImageFile(const char *);
  17.     static void FreeCreatedTexture(GLuint);
  18. };
  19.
  20.
  21.
  22.
  23. #endif
LoadImageFile.cpp
  1. #include"LoadImageFile.h"
  2.
  3. //load image & set it as a texture with dimension as 256*256
  4.
  5. GLuint LoadTexture :: LoadTextureImageFile(const char * filename)
  6. {
  7.     GLuint texture = 0;
  8.     int width, height;
  9.     BYTE * data = NULL;
  10.     FILE * file;
  11.
  12.     // open texture data
  13.     fopen_s(&file, filename, "rb");
  14.
  15.     if (&file == NULL) return 0;
  16.
  17.     // allocate buffer
  18.     width = 256;
  19.     height = 256;
  20.
  21.     data = (BYTE*)malloc(width * height * 3);
  22.
  23.     // read texture data
  24.     fread(data, width * height * 3, 1, file);
  25.     fclose(file);
  26.
  27.     glGenTextures(1, &texture);
  28.
  29.     glBindTexture(GL_TEXTURE_2D, texture);
  30.
  31.     //  texture MIP maps
  32.     gluBuild2DMipmaps(GL_TEXTURE_2D, GL_BGRA_EXT, width, height, GL_BGR_EXT, GL_UNSIGNED_BYTE, data);
  33.
  34.
  35.     glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_TEXTURE_ENV_COLOR);
  36.     glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
  37.     glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
  38.     glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
  39.     glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
  40.
  41.     // free buffer
  42.     free(data);
  43.
  44.     return texture;
  45.
  46. }
  47.
  48.
  49.
  50. void LoadTexture :: FreeCreatedTexture(GLuint texture)
  51. {
  52.     glDeleteTextures(1, &texture);
  53. }
DrawScene.h
  1. #ifndef _DRAWSCENE_H
  2. #define _DRAWSCENE_H
  3.
  4. //declare GameScene class & functions which needs to draw
  5. class GameScene
  6. {
  7. public:
  8.     void Draw_OuterWall(GLuint,BOOL);
  9.
  10.     void Draw_InnerRoom_1(GLuint);
  11.
  12.     void Draw_InnerRoom_2(GLuint,GLuint);
  13.
  14.     void Draw_InnerRoom_3(GLuint,GLuint);
  15.
  16.     void Draw_InnerRoom_4(GLuint,GLuint);
  17.
  18.     void Draw_InnerRoom_5(GLuint,GLuint);
  19.
  20.
  21.     void Draw_Roof(GLuint, int,float);
  22.
  23.     void Draw_Floor(GLuint, float);
  24.
  25.     void Draw_Pipes(GLuint);
  26.
  27.     void Draw_WoodBoxes(GLuint);
  28.
  29.     void Display_Text(GLuint);
  30.
  31. };
  32.
  33.
  34. #endif
DrawScene.cpp

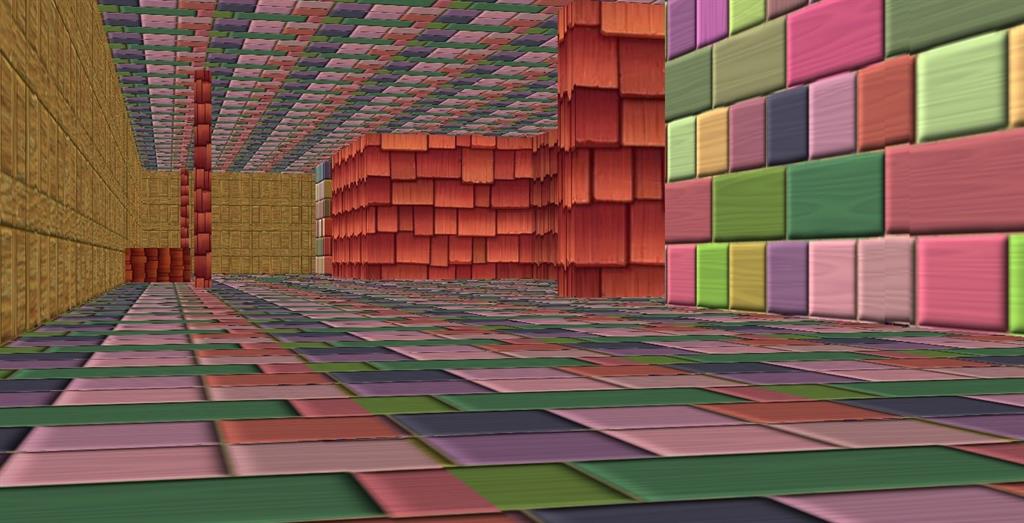

Download the source code to view the complete code of 3D scene. Here, I am just displaying functions to draw Draw_Floor(), Draw_OuterWall(), and Draw_InnerRoom_1() because of large code.
  1. #include"LoadImageFile.h"
  2. #include"DrawScene.h"
  3.
  4.
  5. //define each function from file DrawScene.h from class GameScene
  6.
  7.
  8. //draw floor
  9. void GameScene::Draw_Floor(GLuint texture,float f)
  10. {
  11.     glEnable(GL_TEXTURE_2D);
  12.     glBindTexture(GL_TEXTURE_2D, texture);
  13.
  14.
  15.     glPushMatrix();
  16.
  17.     for (float a = -10.0; a <= 170.0; a = a + 10.0)
  18.     {
  19.         glBegin(GL_QUADS);
  20.         glTexCoord2f(0.0, 0.0);
  21.         glVertex3f(0.0 + a, 0.0, 10.0);
  22.         glTexCoord2f(0.0, f);
  23.         glVertex3f(0.0 + a, 0.0, 0.0);
  24.         glTexCoord2f(f, f);
  25.         glVertex3f(10.0 + a, 0.0, 0.0);
  26.         glTexCoord2f(f, 0.0);
  27.         glVertex3f(10.0 + a, 0.0, 10.0);
  28.         glEnd();
  29.     }
  30.
  31.     for (float b = -10.0; b <= 320.0; b += 10.0)
  32.     {
  33.         for (float a = -10.0; a <= 170.0; a = a + 10.0)
  34.         {
  35.             glBegin(GL_QUADS);
  36.             glTexCoord2f(0.0, 0.0);
  37.             glVertex3f(0.0 + a, 0.0, -(b - 10.0));
  38.             glTexCoord2f(0.0, f);
  39.             glVertex3f(0.0 + a, 0.0, -b);
  40.             glTexCoord2f(f ,f );
  41.             glVertex3f(10.0 + a, 0.0, -b);
  42.             glTexCoord2f(f, 0.0);
  43.             glVertex3f(10.0 + a, 0.0, -(b - 10.0));
  44.             glEnd();
  45.
  46.         }
  47.     }
  48.
  49.     glPopMatrix();
  50.
  51.     glDisable(GL_TEXTURE_2D);
  52.
  53.     LoadTexture::FreeCreatedTexture(texture);
  54. }
  55.
  56.
  57. //draw outer wall
  58. void GameScene::Draw_OuterWall(GLuint texture,BOOL isdisplay)
  59. {
  60.     if (isdisplay)
  61.     {
  62.         glPushMatrix();
  63.
  64.
  65.         glEnable(GL_TEXTURE_2D);
  66.         glBindTexture(GL_TEXTURE_2D, texture);
  67.
  68.         //wall 1
  69.         for (float a = 0.0; a <= 180.0; a = a + 10.0)
  70.         {
  71.             glColor3f(0.7, 0.7, 0.5);
  72.             glBegin(GL_QUADS);
  73.             glTexCoord2f(0.0, 0.0);
  74.             glVertex3f(-10.0 + a, 0.0, 20.0);
  75.             glTexCoord2f(0.0, 1.0);
  76.             glVertex3f(-10.0 + a, 50.0, 20.0);
  77.             glTexCoord2f(1.0, 1.0);
  78.             glVertex3f(0.0 + a, 50.0, 20.0);
  79.             glTexCoord2f(1.0, 0.0);
  80.             glVertex3f(0.0 + a, 0.0, 20.0);
  81.             glEnd();
  82.         }
  83.
  84.         //wall 2
  85.         for (float a = 0.0; a <= 320.0; a = a + 20.0)
  86.         {
  87.             glColor3f(0.7, 0.7, 0.5);
  88.             glBegin(GL_QUADS);
  89.             glTexCoord2f(0.0, 0.0);
  90.             glVertex3f(180.0, 0.0, 0.0 - a);
  91.             glTexCoord2f(0.0, 1.0);
  92.             glVertex3f(180.0, 50.0, 0.0 - a);
  93.             glTexCoord2f(1.0, 1.0);
  94.             glVertex3f(180.0, 50.0, 20.0 - a);
  95.             glTexCoord2f(1.0, 0.0);
  96.             glVertex3f(180.0, 0.0, 20.0 - a);
  97.             glEnd();
  98.         }
  99.
  100.         //wall 3
  101.         for (float a = 0.0; a <= 180.0; a = a + 10.0)
  102.         {
  103.             glColor3f(0.7, 0.7, 0.5);
  104.             glBegin(GL_QUADS);
  105.             glTexCoord2f(0.0, 0.0);
  106.             glVertex3f(180.0 - a, 0.0, -320.0);
  107.             glTexCoord2f(0.0, 1.0);
  108.             glVertex3f(180.0 - a, 50.0, -320.0);
  109.             glTexCoord2f(1.0, 1.0);
  110.             glVertex3f(170.0 - a, 50.0, -320.0);
  111.             glTexCoord2f(1.0, 0.0);
  112.             glVertex3f(170.0 - a, 0.0, -320.0);
  113.             glEnd();
  114.         }
  115.
  116.
  117.         //wall 4
  118.         for (float a = -10.0; a <= 320.0; a = a + 10.0)
  119.         {
  120.             glColor3f(0.7, 0.7, 0.5);
  121.             glBegin(GL_QUADS);
  122.             glTexCoord2f(0.0, 0.0);
  123.             glVertex3f(-10.0, 0.0, 0.0 - a);
  124.             glTexCoord2f(0.0, 1.0);
  125.             glVertex3f(-10.0, 50.0, 0.0 - a);
  126.             glTexCoord2f(1.0, 1.0);
  127.             glVertex3f(-10.0, 50.0, 10.0 - a);
  128.             glTexCoord2f(1.0, 0.0);
  129.             glVertex3f(-10.0, 0.0, 10.0 - a);
  130.             glEnd();
  131.         }
  132.
  133.
  134.         glDisable(GL_TEXTURE_2D);
  135.
  136.         LoadTexture::FreeCreatedTexture(texture);
  137.
  138.         glPopMatrix();
  139.     }
  140. }
  141.
  142.
  143. //***********************************************************************
  144. //draw inner room 1
  145. void GameScene::Draw_InnerRoom_1(GLuint texture)
  146. {
  147.     glPushMatrix();
  148.
  149.
  150.     glEnable(GL_TEXTURE_2D);
  151.     glBindTexture(GL_TEXTURE_2D, texture);
  152.
  153.     //wall 1
  154.     glColor3f(1.0, 1.0, 1.0);
  155.     glBegin(GL_QUADS);
  156.     glTexCoord2f(0.0, 0.0);
  157.     glVertex3f(10.0, 0.0, -5.0);
  158.     glTexCoord2f(0.0, 2.0);
  159.     glVertex3f(10.0, 50.0, -5.0);
  160.     glTexCoord2f(2.0, 2.0);
  161.     glVertex3f(12.0, 50.0, -5.0);
  162.     glTexCoord2f(2.0, 0.0);
  163.     glVertex3f(12.0, 0.0, -5.0);
  164.     glEnd();
  165.
  166.
  167.     //wall 2
  168.     glColor3f(0.6, 0.6, 0.6);
  169.     glBegin(GL_QUADS);
  170.     glTexCoord2f(0.0, 0.0);
  171.     glVertex3f(12.0, 0.0, -5.0);
  172.     glTexCoord2f(0.0, 1.0);
  173.     glVertex3f(12.0, 50.0, -5.0);
  174.     glTexCoord2f(1.0, 1.0);
  175.     glVertex3f(12.0, 50.0, -12.0);
  176.     glTexCoord2f(1.0, 0.0);
  177.     glVertex3f(12.0, 0.0, -12.0);
  178.     glEnd();
  179.
  180.     //wall 3
  181.     for (float a = 0.0; a <= 100.0; a = a + 18.0)
  182.     {
  183.         glColor3f(1.0, 1.0, 1.0);
  184.         glBegin(GL_QUADS);
  185.         glTexCoord2f(0.0, 0.0);
  186.         glVertex3f(12.0 + a, 0.0, -12.0);
  187.         glTexCoord2f(0.0, 1.0);
  188.         glVertex3f(12.0 + a, 50.0, -12.0);
  189.         glTexCoord2f(1.0, 1.0);
  190.         glVertex3f(30.0 + a, 50.0, -12.0);
  191.         glTexCoord2f(1.0, 0.0);
  192.         glVertex3f(30.0 + a, 0.0, -12.0);
  193.         glEnd();
  194.     }
  195.
  196.
  197.     //wall 4
  198.     glColor3f(0.7, 0.7, 0.7);
  199.     glBegin(GL_QUADS);
  200.     glTexCoord2f(0.0, 0.0);
  201.     glVertex3f(120.0, 0.0, -12.0);
  202.     glTexCoord2f(0.0, 1.0);
  203.     glVertex3f(120.0, 50.0, -12.0);
  204.     glTexCoord2f(1.0, 1.0);
  205.     glVertex3f(120.0, 50.0, -5.0);
  206.     glTexCoord2f(1.0, 0.0);
  207.     glVertex3f(120.0, 0.0, -5.0);
  208.     glEnd();
  209.
  210.     //wall 5
  211.     glColor3f(1.0, 1.0, 1.0);
  212.     glBegin(GL_QUADS);
  213.     glTexCoord2f(0.0, 0.0);
  214.     glVertex3f(120.0, 0.0, -5.0);
  215.     glTexCoord2f(0.0, 1.0);
  216.     glVertex3f(120.0, 50.0, -5.0);
  217.     glTexCoord2f(1.0, 1.0);
  218.     glVertex3f(140.0, 50.0, -5.0);
  219.     glTexCoord2f(1.0, 0.0);
  220.     glVertex3f(140.0, 0.0, -5.0);
  221.     glEnd();
  222.
  223.     //wall 6
  224.     glColor3f(1.0, 1.0, 1.0);
  225.     glBegin(GL_QUADS);
  226.     glTexCoord2f(0.0, 0.0);
  227.     glVertex3f(140.0, 0.0, -5.0);
  228.     glTexCoord2f(0.0, 1.0);
  229.     glVertex3f(140.0, 50.0, -5.0);
  230.     glTexCoord2f(1.0, 1.0);
  231.     glVertex3f(140.0, 50.0, -15.0);
  232.     glTexCoord2f(1.0, 0.0);
  233.     glVertex3f(140.0, 0.0, -15.0);
  234.     glEnd();
  235.
  236.     glColor3f(1.0, 1.0, 1.0);
  237.     glBegin(GL_QUADS);
  238.     glTexCoord2f(0.0, 0.0);
  239.     glVertex3f(140.0, 0.0, -15.0);
  240.     glTexCoord2f(0.0, 1.0);
  241.     glVertex3f(140.0, 50.0, -15.0);
  242.     glTexCoord2f(1.0, 1.0);
  243.     glVertex3f(140.0, 50.0, -22.0);
  244.     glTexCoord2f(1.0, 0.0);
  245.     glVertex3f(140.0, 0.0, -22.0);
  246.     glEnd();
  247.
  248.
  249.     //wall 7
  250.     glColor3f(0.8, 0.5, 0.4);
  251.     glBegin(GL_QUADS);
  252.     glTexCoord2f(0.0, 0.0);
  253.     glVertex3f(140.0, 0.0, -22.0);
  254.     glTexCoord2f(0.0, 1.0);
  255.     glVertex3f(140.0, 50.0, -22.0);
  256.     glTexCoord2f(1.0, 1.0);
  257.     glVertex3f(120.0, 50.0, -22.0);
  258.     glTexCoord2f(1.0, 0.0);
  259.     glVertex3f(120.0, 0.0, -22.0);
  260.     glEnd();
  261.
  262.     //wall 8
  263.     glColor3f(1.0, 0.7, 0.6);
  264.     glBegin(GL_QUADS);
  265.     glTexCoord2f(0.0, 0.0);
  266.     glVertex3f(120.0, 0.0, -22.0);
  267.     glTexCoord2f(0.0, 1.0);
  268.     glVertex3f(120.0, 50.0, -22.0);
  269.     glTexCoord2f(1.0, 1.0);
  270.     glVertex3f(120.0, 50.0, -35.0);
  271.     glTexCoord2f(1.0, 0.0);
  272.     glVertex3f(120.0, 0.0, -35.0);
  273.     glEnd();
  274.
  275.     glColor3f(1.0, 0.7, 0.6);
  276.     glBegin(GL_QUADS);
  277.     glTexCoord2f(0.0, 0.0);
  278.     glVertex3f(120.0, 0.0, -35.0);
  279.     glTexCoord2f(0.0, 1.0);
  280.     glVertex3f(120.0, 50.0, -35.0);
  281.     glTexCoord2f(1.0, 1.0);
  282.     glVertex3f(120.0, 50.0, -55.0);
  283.     glTexCoord2f(1.0, 0.0);
  284.     glVertex3f(120.0, 0.0, -55.0);
  285.     glEnd();
  286.
  287.
  288.     //wall 9
  289.     glColor3f(0.7, 0.4, 0.3);
  290.     glBegin(GL_QUADS);
  291.     glTexCoord2f(0.0, 0.0);
  292.     glVertex3f(120.0, 0.0, -55.0);
  293.     glTexCoord2f(0.0, 1.0);
  294.     glVertex3f(120.0, 50.0, -55.0);
  295.     glTexCoord2f(1.0, 1.0);
  296.     glVertex3f(100.0, 50.0, -55.0);
  297.     glTexCoord2f(1.0, 0.0);
  298.     glVertex3f(100.0, 0.0, -55.0);
  299.     glEnd();
  300.
  301.     glColor3f(0.7, 0.4, 0.3);
  302.     glBegin(GL_QUADS);
  303.     glTexCoord2f(0.0, 0.0);
  304.     glVertex3f(100.0, 0.0, -55.0);
  305.     glTexCoord2f(0.0, 1.0);
  306.     glVertex3f(100.0, 50.0, -55.0);
  307.     glTexCoord2f(1.0, 1.0);
  308.     glVertex3f(70.0, 50.0, -55.0);
  309.     glTexCoord2f(1.0, 0.0);
  310.     glVertex3f(70.0, 0.0, -55.0);
  311.     glEnd();
  312.
  313.     //wall 10
  314.     glColor3f(0.8, 0.5, 0.4);
  315.     glBegin(GL_QUADS);
  316.     glTexCoord2f(0.0, 0.0);
  317.     glVertex3f(70.0, 0.0, -55.0);
  318.     glTexCoord2f(0.0, 1.0);
  319.     glVertex3f(70.0, 50.0, -55.0);
  320.     glTexCoord2f(1.0, 1.0);
  321.     glVertex3f(70.0, 50.0, -75.0);
  322.     glTexCoord2f(1.0, 0.0);
  323.     glVertex3f(70.0, 0.0, -75.0);
  324.     glEnd();
  325.
  326.     glColor3f(0.8, 0.5, 0.4);
  327.     glBegin(GL_QUADS);
  328.     glTexCoord2f(0.0, 0.0);
  329.     glVertex3f(70.0, 0.0, -75.0);
  330.     glTexCoord2f(0.0, 1.0);
  331.     glVertex3f(70.0, 50.0, -75.0);
  332.     glTexCoord2f(1.0, 1.0);
  333.     glVertex3f(70.0, 50.0, -95.0);
  334.     glTexCoord2f(1.0, 0.0);
  335.     glVertex3f(70.0, 0.0, -95.0);
  336.     glEnd();
  337.
  338.     //wall 11
  339.     glColor3f(1.0, 0.7, 0.6);
  340.     glBegin(GL_QUADS);
  341.     glTexCoord2f(0.0, 0.0);
  342.     glVertex3f(70.0, 0.0, -95.0);
  343.     glTexCoord2f(0.0, 1.0);
  344.     glVertex3f(70.0, 50.0, -95.0);
  345.     glTexCoord2f(1.0, 1.0);
  346.     glVertex3f(40.0, 50.0, -95.0);
  347.     glTexCoord2f(1.0, 0.0);
  348.     glVertex3f(40.0, 0.0, -95.0);
  349.     glEnd();
  350.
  351.     glColor3f(1.0, 0.7, 0.6);
  352.     glBegin(GL_QUADS);
  353.     glTexCoord2f(0.0, 0.0);
  354.     glVertex3f(40.0, 0.0, -95.0);
  355.     glTexCoord2f(0.0, 1.0);
  356.     glVertex3f(40.0, 50.0, -95.0);
  357.     glTexCoord2f(1.0, 1.0);
  358.     glVertex3f(10.0, 50.0, -95.0);
  359.     glTexCoord2f(1.0, 0.0);
  360.     glVertex3f(10.0, 0.0, -95.0);
  361.     glEnd();
  362.
  363.
  364.
  365.     //wall 12
  366.     glColor3f(1.0, 1.0, 1.0);
  367.     glBegin(GL_QUADS);
  368.     glTexCoord2f(0.0, 0.0);
  369.     glVertex3f(10.0, 0.0, -5.0);
  370.     glTexCoord2f(0.0, 2.0);
  371.     glVertex3f(10.0, 50.0, -5.0);
  372.     glTexCoord2f(2.0, 2.0);
  373.     glVertex3f(10.0, 50.0, -25.0);
  374.     glTexCoord2f(2.0, 0.0);
  375.     glVertex3f(10.0, 0.0, -25.0);
  376.     glEnd();
  377.
  378.     glColor3f(1.0, 1.0, 1.0);
  379.     glBegin(GL_QUADS);
  380.     glTexCoord2f(0.0, 0.0);
  381.     glVertex3f(10.0, 0.0, -25.0);
  382.     glTexCoord2f(0.0, 2.0);
  383.     glVertex3f(10.0, 50.0, -25.0);
  384.     glTexCoord2f(2.0, 2.0);
  385.     glVertex3f(10.0, 50.0, -45.0);
  386.     glTexCoord2f(2.0, 0.0);
  387.     glVertex3f(10.0, 0.0, -45.0);
  388.     glEnd();
  389.
  390.     glColor3f(1.0, 1.0, 1.0);
  391.     glBegin(GL_QUADS);
  392.     glTexCoord2f(0.0, 0.0);
  393.     glVertex3f(10.0, 0.0, -55.0);
  394.     glTexCoord2f(0.0, 2.0);
  395.     glVertex3f(10.0, 50.0, -55.0);
  396.     glTexCoord2f(2.0, 2.0);
  397.     glVertex3f(10.0, 50.0, -95.0);
  398.     glTexCoord2f(2.0, 0.0);
  399.     glVertex3f(10.0, 0.0, -95.0);
  400.     glEnd();
  401.
  402.
  403.
  404.     glDisable(GL_TEXTURE_2D);
  405.
  406.     LoadTexture::FreeCreatedTexture(texture);
  407.
  408.     glPopMatrix();
  409.
  410. }
Now, let's move to the main() source file (3D_GameScene_OpenGL.cpp). Initialize OpenGL function or use all the functions defined in the following article instead of just Display_Scene().
  • 3D Planetary System In OpenGL
To display our scene, we need to call DisplayTexturedGameScene() function defined in the class DisplayGameScene.
  1. void Display_Scene()
  2. {
  3.     if (_moveForeBack)
  4.     {
  5.         Moving_Foreword_Backword_Direction(_moveForeBack);
  6.     }
  7.
  8.     if (_moveLeftRight)
  9.     {
  10.         _Angle += _moveLeftRight;
  11.         Moving_Left_Right_Direction(_Angle);
  12.     }
  13.
  14.     //clears the buffer & depth
  15.     glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
  16.
  17.     //call function from DisplayGameScene class which will be displayed
  18.     DisplayGameScene::DisplayTexturedGameScene(texture_type, showRoof, showOuterWall);
  19.
  20.     glutSwapBuffers();
  21. }

We also need menu from where we can change our texture. You can create right click menu using glut.

First, create a function that takes an integer as argument. In this function, you must declare your actions to be performed when clicked on that menu item.

Following is the code when a specific menu item is clicked, then perform that action.
  1. //menu function
  2. void Menu_Process(int mode)
  3. {
  4.     switch (mode)
  5.     {
  6.     case 1 :
  7.         texture_type = MyTextures::DEFAULT;
  8.         glutPostRedisplay();
  9.         break;
  10.
  11.     case 2:
  12.         texture_type = MyTextures::ANIMATION;
  13.         glutPostRedisplay();
  14.         break;
  15.
  16.     case 3:
  17.         texture_type = MyTextures::BUILDINGS;
  18.         glutPostRedisplay();
  19.         break;
  20.
  21.     case 4:
  22.         texture_type = MyTextures::HORROR;
  23.         glutPostRedisplay();
  24.         break;
  25.
  26.     case 5:
  27.         texture_type = MyTextures::GREENY;
  28.         glutPostRedisplay();
  29.         break;
  30.
  31.     case 6:
  32.         texture_type = MyTextures::WOODS;
  33.         glutPostRedisplay();
  34.         break;
  35.
  36.     case 7:
  37.         texture_type = MyTextures::ROCKS;
  38.         glutPostRedisplay();
  39.         break;
  40.
  41.     case 8:
  42.         texture_type = MyTextures::CIRCUIT;
  43.         glutPostRedisplay();
  44.         break;
  45.
  46.     case 9:
  47.         if (showOuterWall)
  48.             showOuterWall = FALSE;
  49.         else
  50.             showOuterWall = TRUE;
  51.         glutPostRedisplay();
  52.         break;
  53.
  54.     case 10:
  55.         if (showRoof == 1)
  56.             showRoof = 0;
  57.         else
  58.             showRoof = 1;
  59.         glutPostRedisplay();
  60.         break;
  61.
  62.     case 11:
  63.         MessageBox(NULL, TEXT("UP\t\t:\tGo Forward\nDOWN\t\t:\tGo Backward\nLEFT\t\t:\tMove Left\nRIGHT\t\t:\tMove Right\nPAGE UP\t\t:\tGo Upward\nPAGE DOWN\t:\tGo Downward\n\nMouse Right Click\t:\tTo Change Textures"), TEXT("How do i ......"), MB_OK);
  64.         break;
  65.
  66.     case 12:
  67.         exit(EXIT_SUCCESS);
  68.         break;
  69.
  70.     }
  71. }
Then, create another function where we can declare our menu items.

First, call the glutCreateMenu() function and pass your created action function as an argument.

e.g glutCreateMenu(Menu_Process);

Then, call glutAddMenuEntry() function by passing a string to display an action integer.

e.g glutAddMenuEntry(" Animation", 2);

Finally, call the glutAttachMenu() function and pass argument about when to display this created menu.

e.g glutAttachMenu(GLUT_RIGHT_BUTTON);

Here, I have attached a menu for the mouse right click.
  1. //create menu function for glut
  2. void Create_Menu()
  3. {
  4.
  5.     glutCreateMenu(Menu_Process);
  6.     glutAddMenuEntry(" Default             ", 1);
  7.     glutAddMenuEntry(" Animation", 2);
  8.     glutAddMenuEntry(" Buildings", 3);
  9.     glutAddMenuEntry(" Horror", 4);
  10.     glutAddMenuEntry(" Greeny", 5);
  11.     glutAddMenuEntry(" Woods", 6);
  12.     glutAddMenuEntry(" Rocks", 7);
  13.     glutAddMenuEntry(" Circuits", 8);
  14.     glutAddMenuEntry(" Outer Wall ", 9);
  15.     glutAddMenuEntry(" Roof", 10);
  16.     glutAddMenuEntry(" How do i........!", 11);
  17.     glutAddMenuEntry(" Quit", 12);
  18.     glutAttachMenu(GLUT_RIGHT_BUTTON);
  19. }
Call the Create_Menu() function in main() function before glutMainLoop() function. You can download the source code to view complete code of 3D scene with texture images.

Copy "textures" folder from "3D_GameScene_OpenGL\3D_GameScene_OpenGL\"  to  "3D_GameScene_OpenGL\Debug" folder for eliminating the unnecessary errors. Otherwise, it will show "Debug Assertion Failed!" error dialog because of not finding resources that our program needs.

  • 3D Scene
  • C
  • C++
  • MFC
  • OpenGL
Up Next
    Ebook Download
    View all
    C# Corner Ebook
    Printing in C# Made Easy
    Read by 10.8k people
    Download Now!
    Learn
    View all
    Learn Image
    Xamarin Jump Start
    Leaderboard
    View all
    Jemmy Jackson James

    Jemmy Jackson James
    +0
    Mahesh Chand

    Mahesh Chand
    +0
    Shivam Payasi

    Shivam Payasi
    +0
    View all
    Yesterday's leader
    Jemmy Jackson James
    Jemmy Jackson James
    C#, .NET, Android, Apache, Azure, AWS, GCP
    Bengaluru (India)
    9
    4.6k
    19k
    10
    Member of the month
    Rinki
    Rinki
    Chennai (India)
    15
    5.3k
    14.8k
    50
    Speaker of the month
    Shivam Payasi
    Shivam Payasi
    C#, .NET
    Chitrakoot (India)
    8
    21k
    19.7k
    10
    Upcoming events
    View all
    • The Cloud Show with Magnus Mårtensson ft. Oscar Garcia Colon - Ep: 45
    • Bhubaneswar Chapter
    • Building Websites with Microsoft Power Pages: Exploring WebPage, WebTemplate, and Page Templates - Microsoft Business Application Ep. 25
    Suggested for you
    View all
    John Miller John Miller
    Follow
    Jemmy Jackson James Jemmy Jackson James
    Follow
    Daisy Princess Daisy Princess
    Follow
    Harshit Pandey Harshit Pandey
    Follow
    Mahesh Chand Mahesh Chand
    Follow

    CSharpBot

    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    Sign-Up Now

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    Sign-Up Now

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    Sign-Up Now

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
    About Us Contact Us Privacy Policy Terms Media Kit Partners C# Tutorials Consultants Ideas Report A Bug FAQs Certifications Sitemap Stories CSharp TV DB Talks Let's React Web3 Universe Interviews.help Jumpstart Blockchain Build with JavaScript

    ©2024 C# Corner.

    All contents are copyright of their authors.
