Overview Of SharePoint Server 2016 Central Administration - Part Three

SharePoint Central Administration is categorized into 10 configuration sections and each section contains the links to the pages where administrators can manage the SharePoint functionalities through the nice interface.

Refer the previous articles,

1. Part 1 - SharePoint Server 2016 Central Administration to know more about 10 categorization in SharePoint 2016
2. Part 2 - SharePoint Server 2016 Central Administration to know about the configuration settings available under Application Management

System Settings

System Settings is one of the configuration sections which contains the links to the pages; it's used to manage the Servers, Services, features, solutions, email configurations, mobile configurations and farm-wide settings,

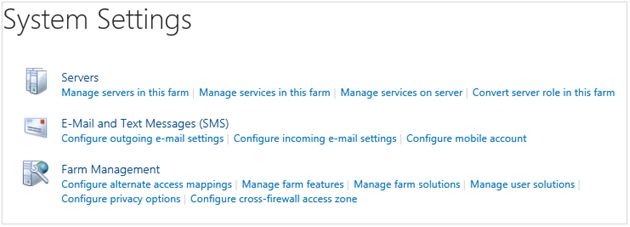

                                          Figure 1: System Settings

Servers

1. Servers in Farm http://<SharePoint_URL>/_admin/FarmServers.aspx

   This page is used to provide information about each server associated with the farm with roles and services.

   Administrator has the control to manage the server within the farm and navigate to the servers in  the farm page by accessing Central Administration, System Settings, Manage servers in this farm,

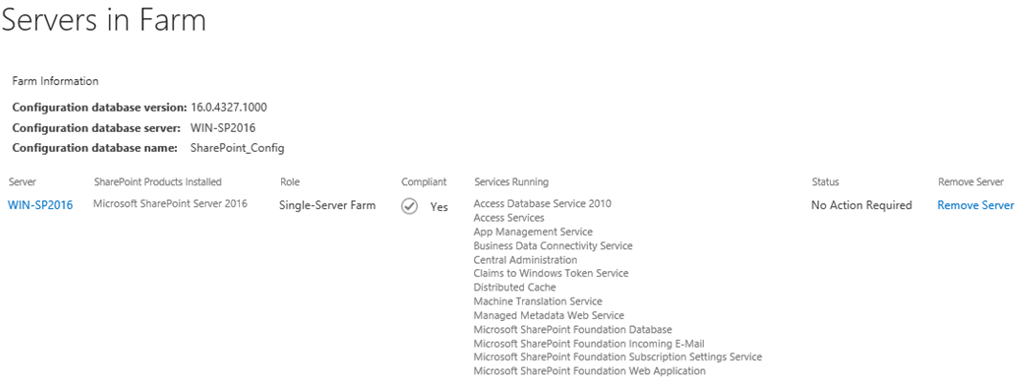

                                       Figure 2: Manage servers in this farm


2. Services in Farm http://<SharePoint_URL>/_admin/FarmServices.aspx

   This page is used to enable and configure the services on the local farm.

   Navigate to configure the services in the farm page by accessing Central Administration, System Settings, Manage services in this farm.



                                          Figure 3: Manage services in this farm


3. Services on Server http://<SharePoint_URL>/_admin/Server.aspx

   This page is used to monitor and manage (start, stop, restart) the individual service based on the selected server in the farm.

   Navigate to the services on server page by accessing, Central Administration, System Settings, Manage services on server,

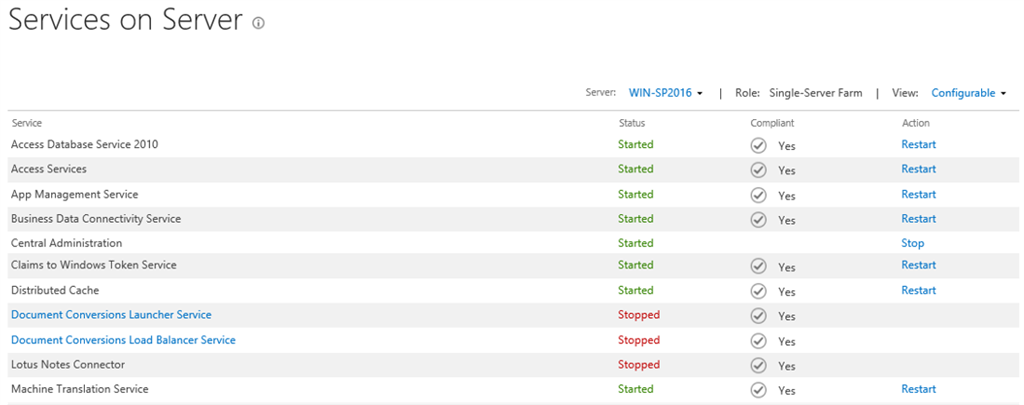

                                             Figure 4: Manage services on server


4. Role Conversion http://<SharePoint_URL>/_admin/RoleConversion.aspx

   This page is used to convert the role for each server in the farm.

   Navigate to the services on server page by accessing Central Administration, System Settings, Convert server role in this farm.

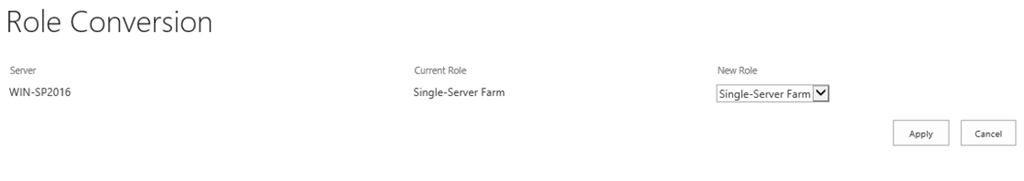

                                       Figure 5: Convert server role in this farm

E-Mail and text messages (sms)

1. Outgoing E-Mail Settings http://<SharePoint _URL>/_admin/globalemailconfig.aspx

   This page is used to define the outgoing SMTP server and default outgoing email settings for the web applications.

   This enables the alerts and notifications for the web applications. Navigate to configure the outgoing email settings by accessing Central Administration, Application Management, Configure e-mail outgoing settings.

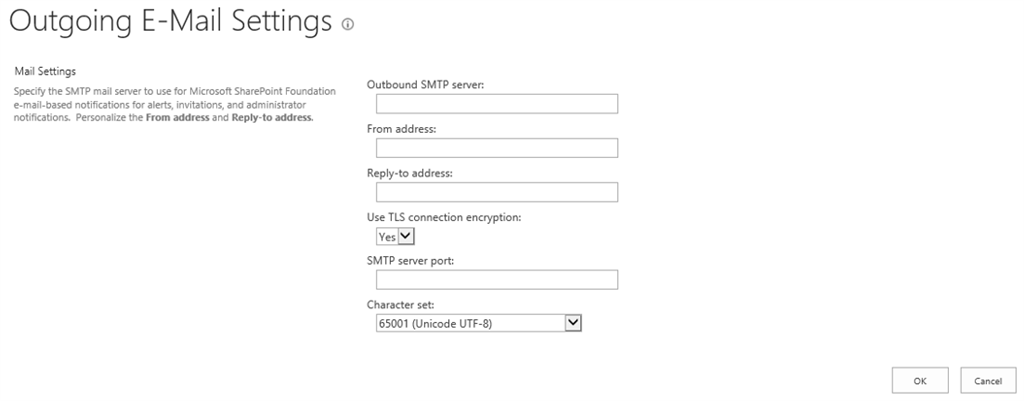

                                 Figure 6: Configure e-mail outgoing settings


2. Incoming E-Mail Settings http://<SharePoint_URL>/_admin/IncomingEmail.aspx

   Use this page to change the incoming e-mail settings for this server.

   This page allows us to enable or disable incoming e-mail, specify e-mail options, configure email enabled lists and configure the Microsoft SharePoint Directory Management Web Service.

   Navigate to incoming e-mail settings by accessing, Central Administration, System Settings, Configure incoming e-mail settings.

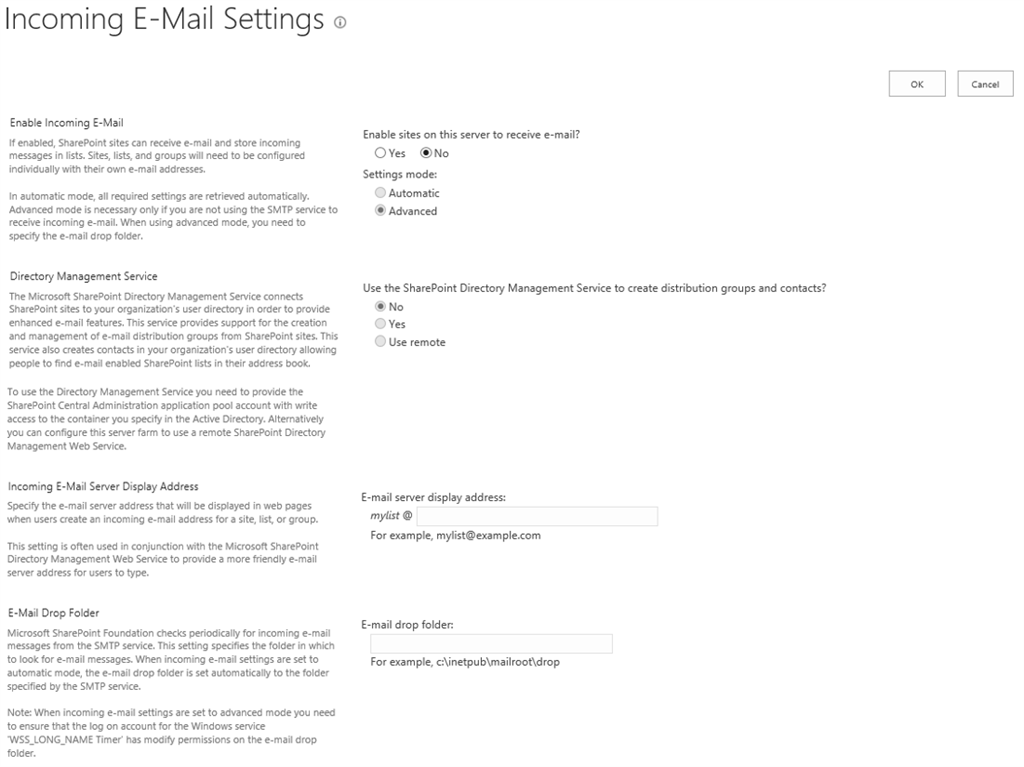

                     Figure 7: Configure incoming e-mail settings


3. Mobile Account Settings http://<SharePoint_URL>/_admin/globalxmsconfig.aspx

   This page is used to configure the default mobile account settings for all web applications in the farm.

   Navigate to this page by accessing Central Administration, System Settings, Configure mobile account.

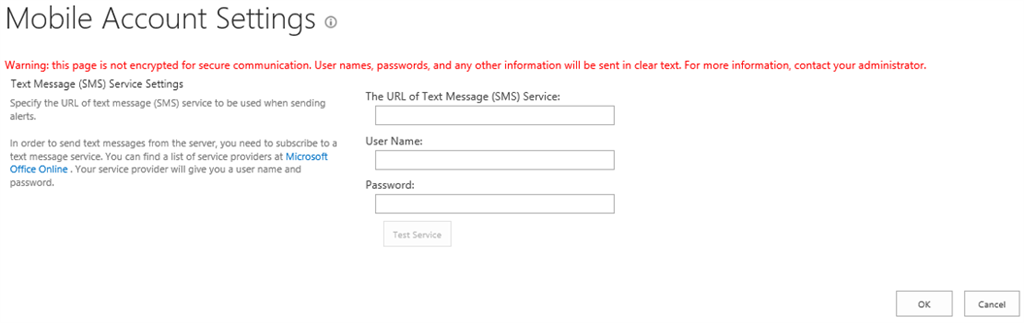

                                    Figure 8: Configure mobile account

Farm Management

1. Alternate Access Mappings http://<SharePoint_URL>/_admin/AlternateUrlCollections.aspx

   This page is used to view the URL mappings for the web application for the different zone and redirect us to configure the internal, public URL mappings based on the selected web application in the farm.

   Navigate to alternate access mappings page by accessing Central Administration, System Settings, Configure alternate access mappings.

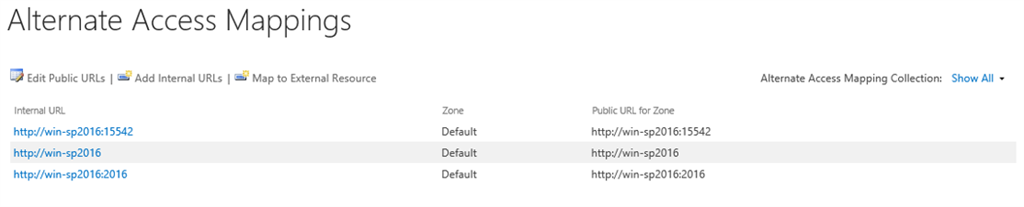

                           Figure 9: Configure alternate access mappings


2. Manage Farm Features http://<SharePoint_URL>/_admin/ManageFarmFeatures.aspx

   This page is used to manage (activate / deactivate) the farm level scope features in the farm.

   Navigate to this page by accessing Central Administration, System Settings, then Manage farm features,

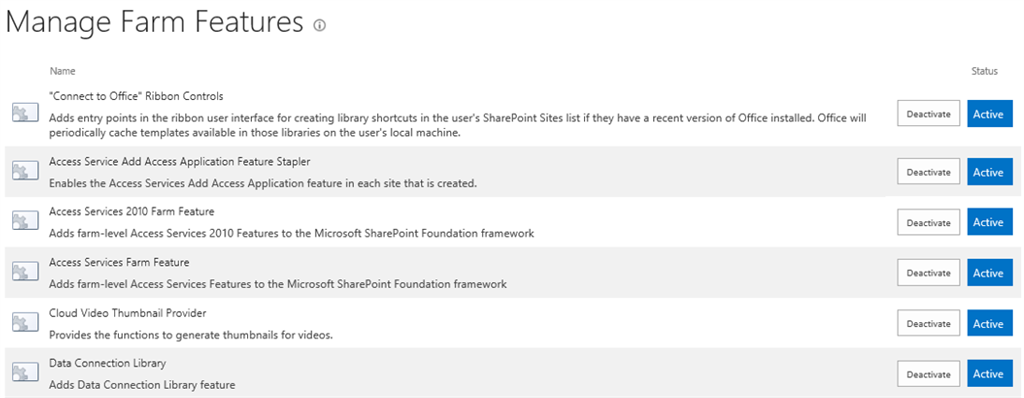

                                             Figure 10: Manage farm features


3. Solution Management http://<SharePoint_URL>/_admin/Solutions.aspx

   This page lists the installed solution packages in the farm and it helps to deploy or retract the solution in the local farm.

   Navigate to this page by accessing, Central Administration > System Settings > Manage farm solutions.

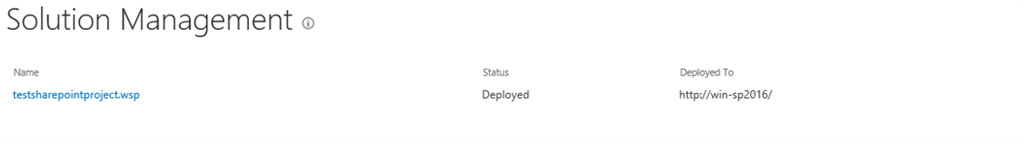

                                 Figure 11: Manage farm solutions


4. Sandboxed Solution Management http://<SharePoint_URL>/_admin/UserSolutions.aspx

   This page is used to configure the execution of site collection solutions within a farm.

   Navigate to alternate access mappings page by accessing, Central Administration > System Settings > Manage user solutions

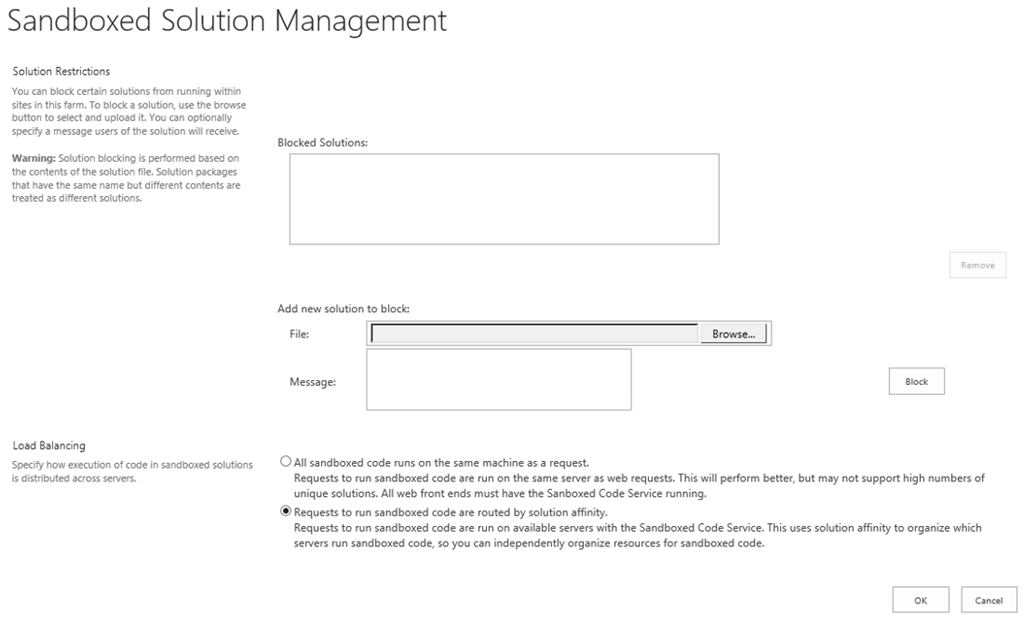

                                          Figure 12: Manage user solutions


5. Privacy Options http://<SharePoint_URL>/_admin/Privacy.aspx

   This page is used to configure the privacy settings for the local farm.

   Navigate to this page by accessing Central Administration, System Settings, Configure privacy options

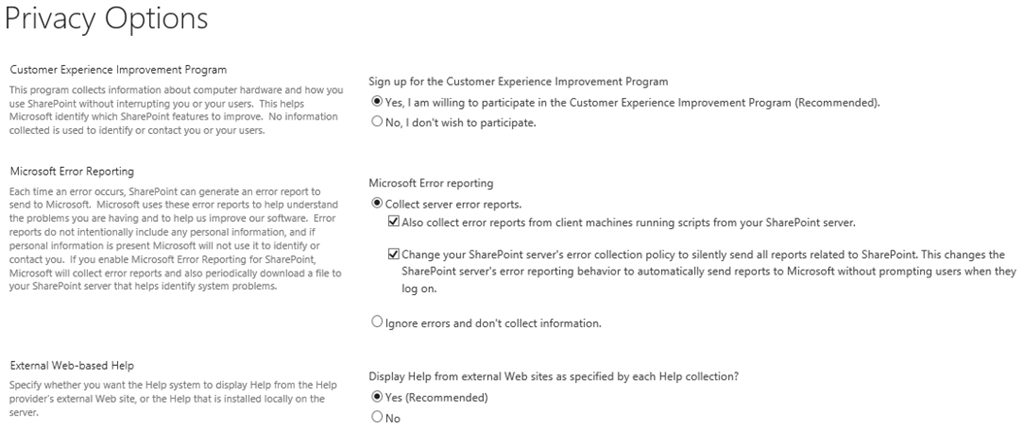

                           Figure 13: Configure privacy options


6. System Settings http://<SharePoint_URL>/_admin/SelectCrossFirewallAccessZone.aspx

   This page is used to manage cross firewall access zone in the farm.

   Navigate to this page by accessing Central Administration, System Settings, Configure cross-firewall access zone.

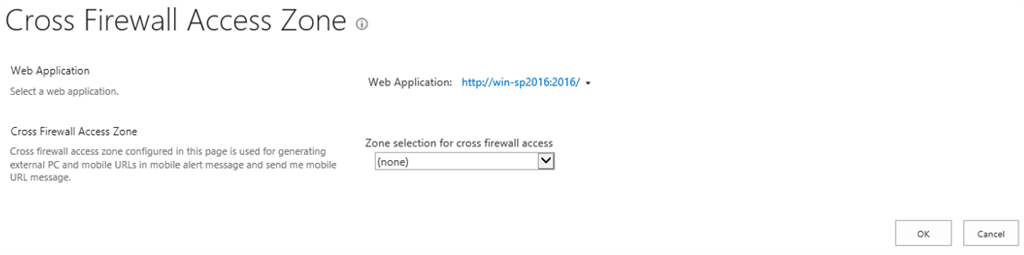

                           Figure 14: Configure cross-firewall access zone
